Hazard Warning Switch: Trooper

  1. Disconnect battery negative cable. Remove instrument cluster panel and disconnect all connectors. Pull hazard warning switch knob from switch. Release lock tabs in 2 places and remove switch bezel.
  2. Remove 2 switch screws, release 2 lock tabs from back side and remove hazard warning switch from rear of instrument cluster panel.
  3. Check for continuity between specified switch terminals with switch in ON and OFF positions. SeeFig 1 . If switch does not function as specified, replace hazard warning switch.

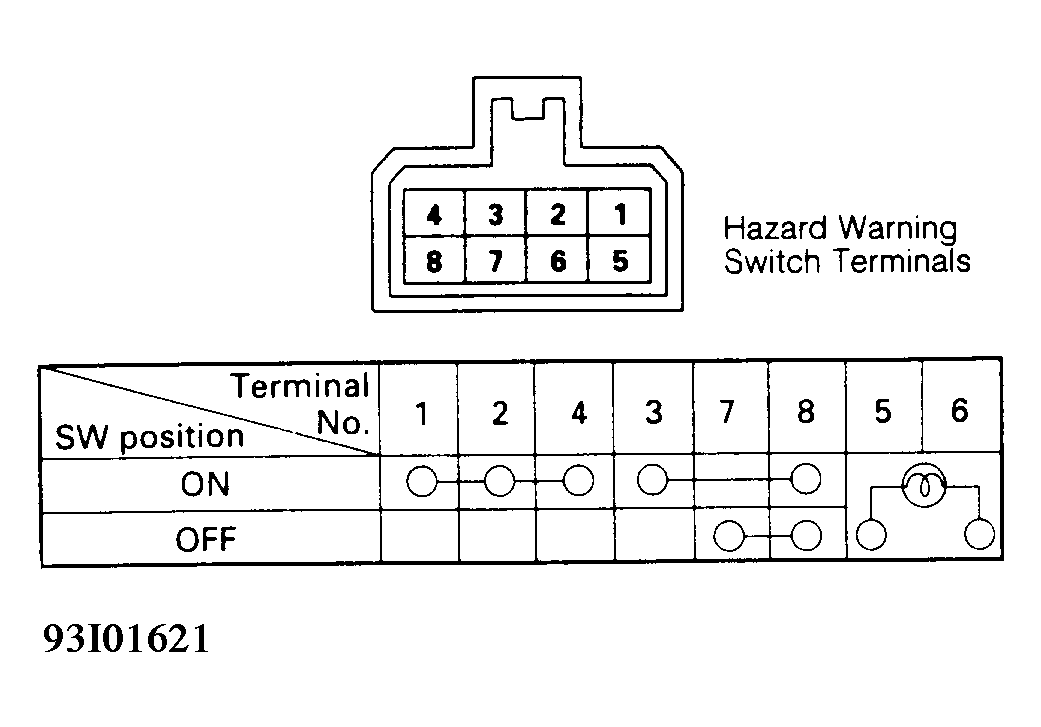

Fig 1: Testing Hazard Warning Switch (Trooper)
G93I01621Courtesy of ISUZU MOTOR CO.
