Self-Check Charts

Fig 1: ABS Indicator Light Off & Will Not Self-Check (1 Of 2)

Courtesy of ISUZU MOTOR CO.

Fig 2: ABS Indicator Light Off & Will Not Self-Check (2 Of 2)

Courtesy of ISUZU MOTOR CO.

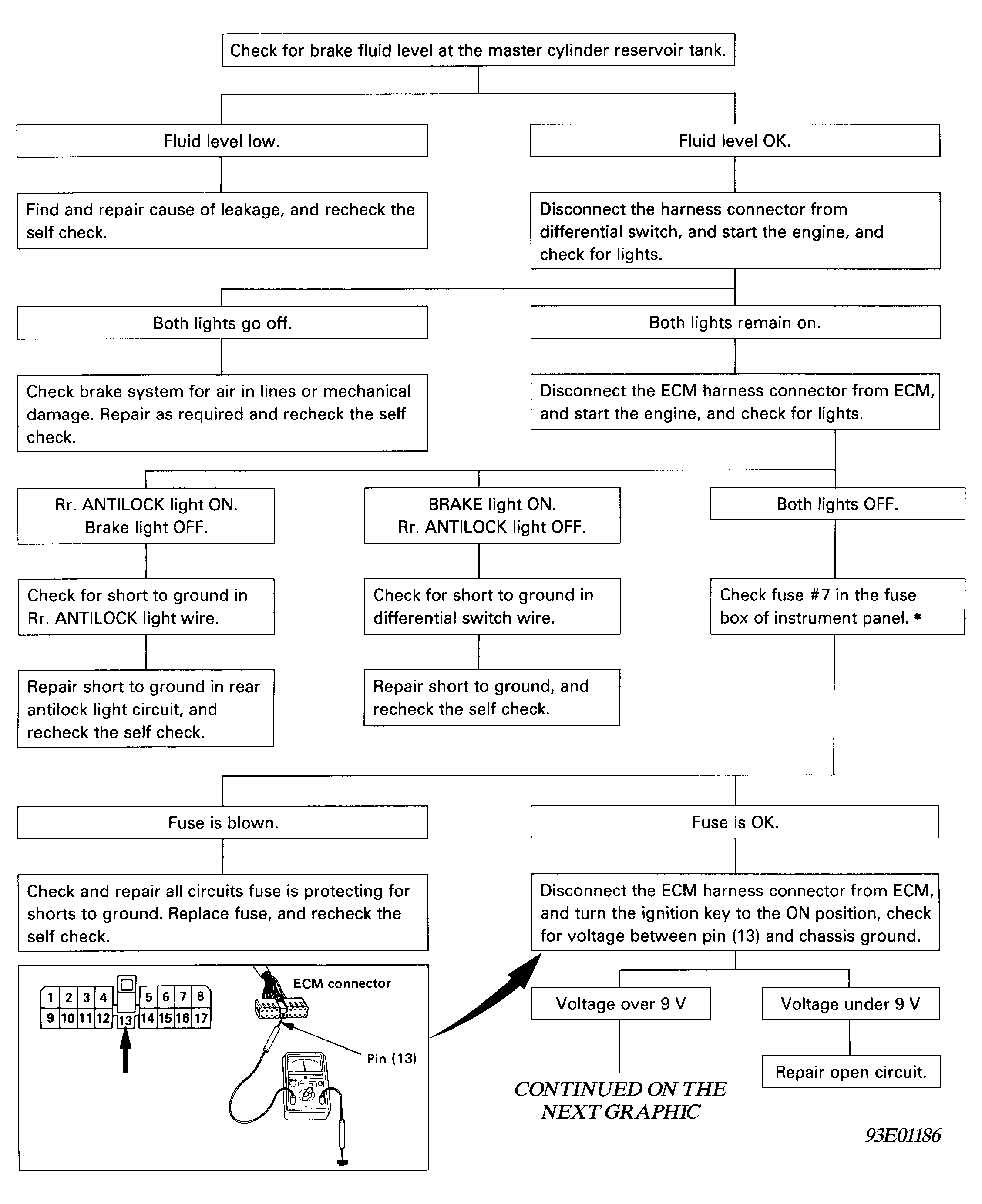

Fig 3: ABS & BRAKE Warning Light On, No Codes Exist (1 Of 2)

Courtesy of ISUZU MOTOR CO.

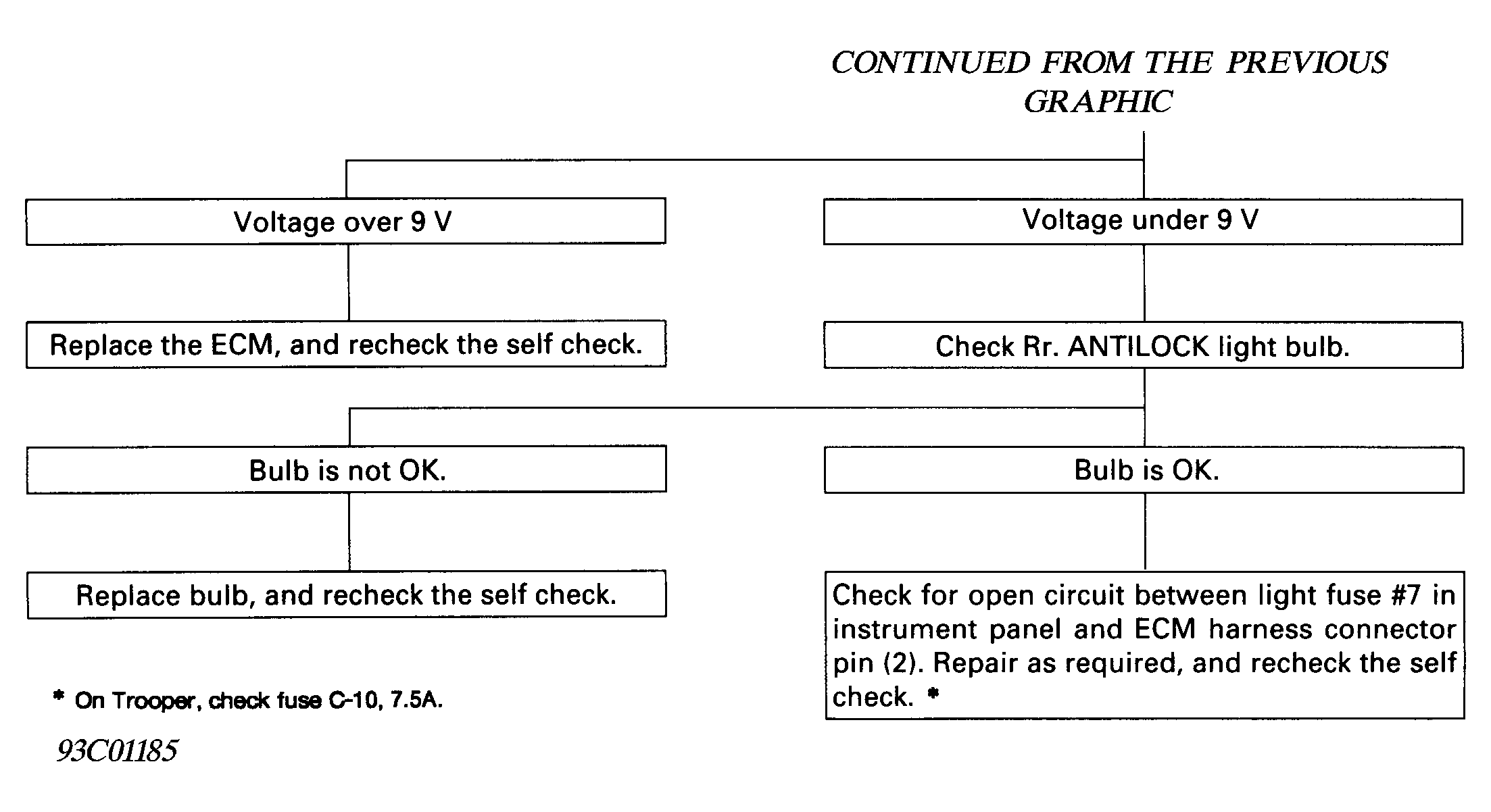

Fig 4: ABS & BRAKE Warning Light On (No Codes Exist) (2 Of 2)

Courtesy of ISUZU MOTOR CO.

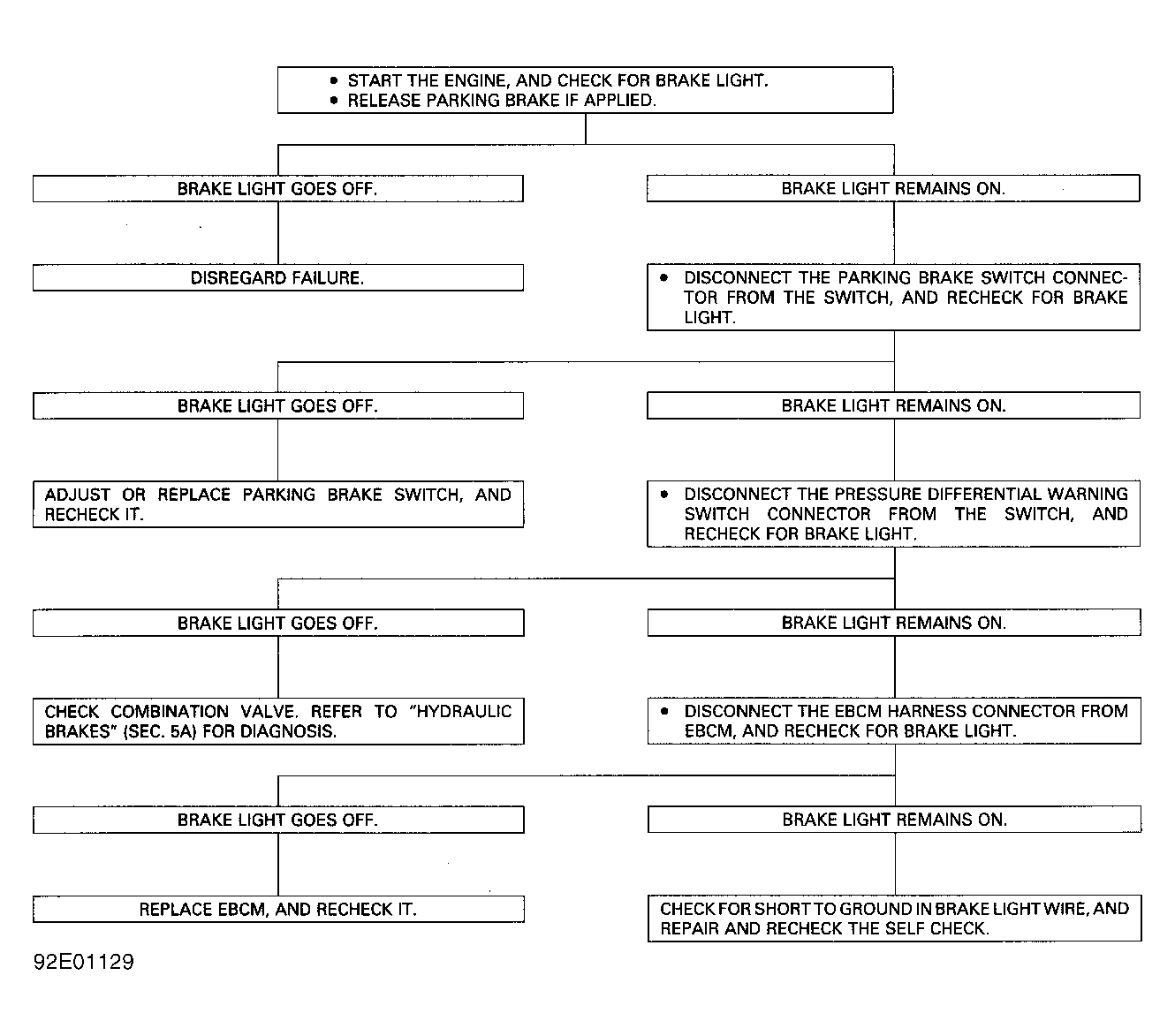

Fig 5: BRAKE Light On, ABS Indicator Off & Will Not Self-Check

Courtesy of ISUZU MOTOR CO.

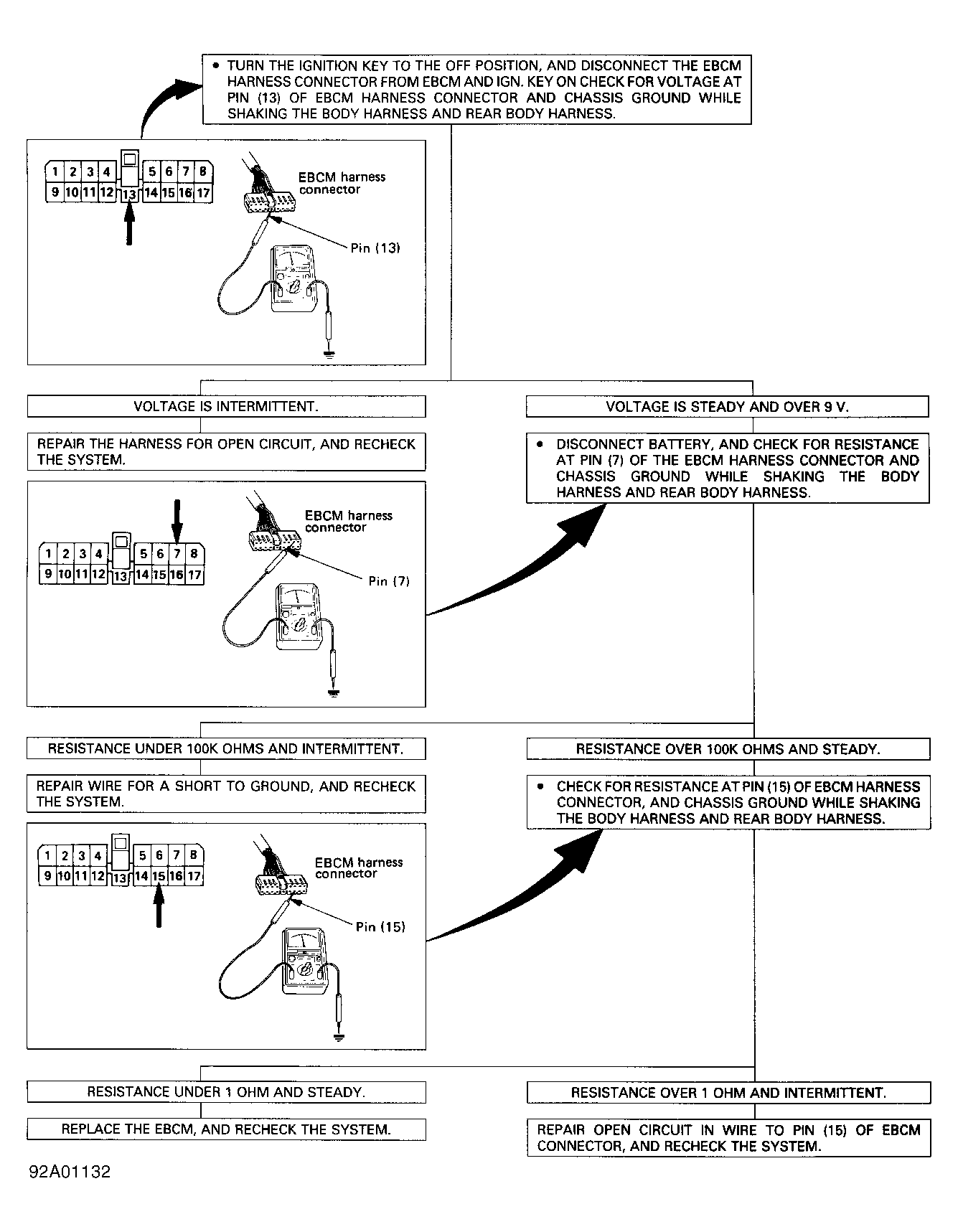

Fig 6: ABS & BRAKE Warning Lights Flashing

Courtesy of ISUZU MOTOR CO.

Fig 7: ABS & BRAKE Warning Lights Self-Check & Wheels Lock With Hard Stop

Courtesy of ISUZU MOTOR CO.
