Component Locations

COMPONENT LOCATIONS

Component  Location
Door Lock Actuator Inside Left And Right Doors
Door Lock Switch On Door Panel

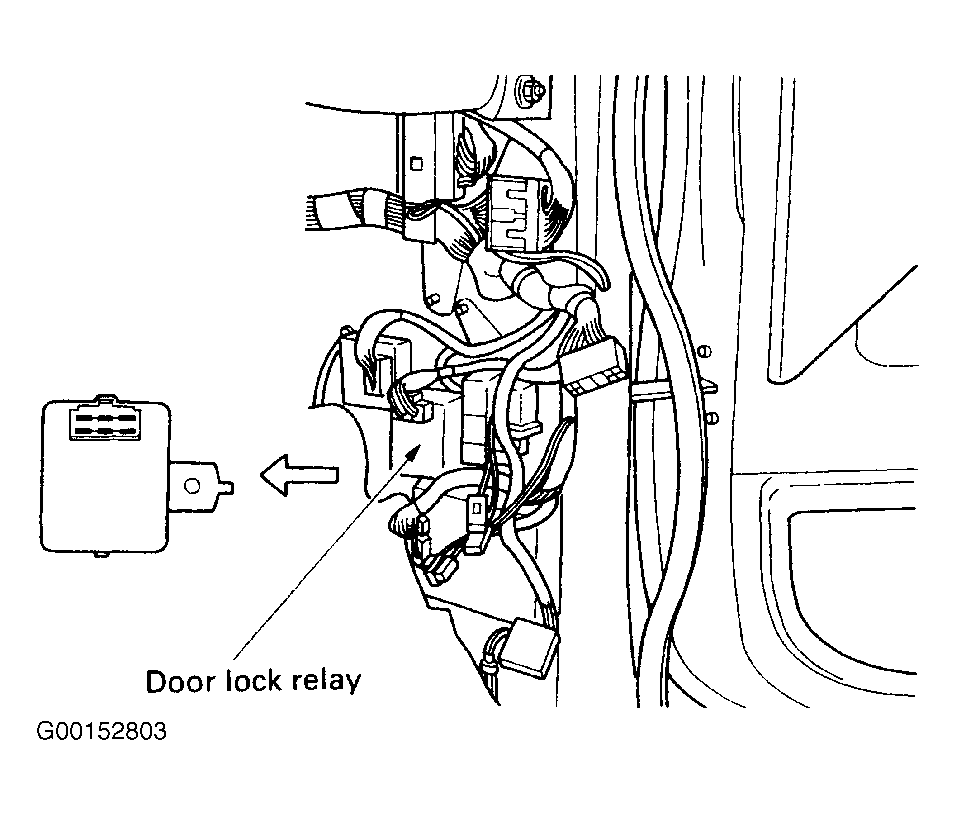

Door Lock/Unlock Relay Behind Right Kick Panel. See Figure .
