Code 55 - Faulty ECM

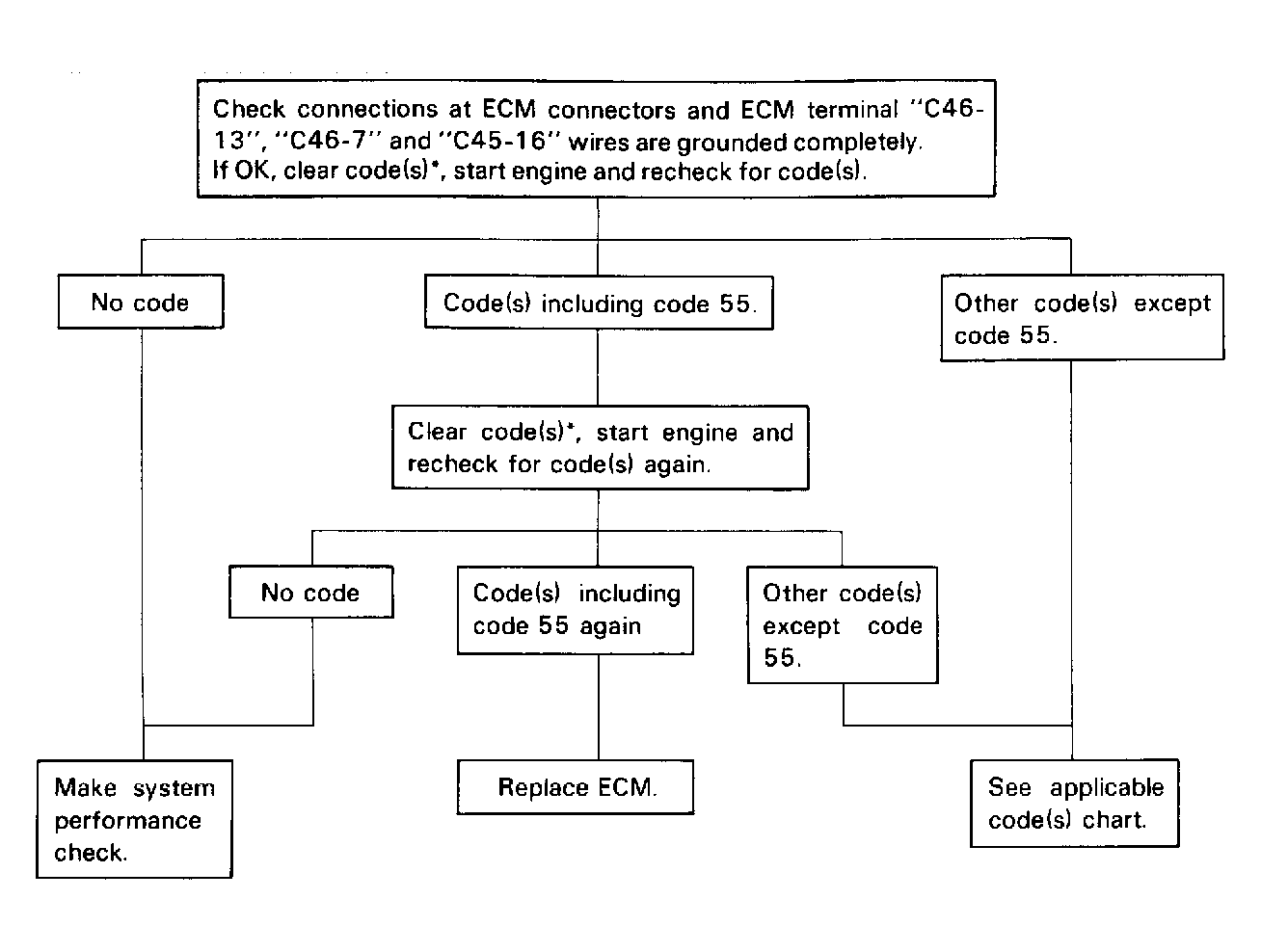

Fig 1: Code No. 55 Flow Chart, Faulty ECM

G122145

Courtesy of ISUZU MOTOR CO.
