Code 34 - EGR Gas Temperature Sensor

EGR GAS TEMP SENSOR RESISTANCE

Temperature °C (°F)	Resistance Ohms
0 (32)	28000
20 (68)	12100
40 (109)	5800
80 (176)	1700

Fig 1: Code No. 34 Schematic, EGR Gas Temp. Sensor

Courtesy of ISUZU MOTOR CO.

Fig 2: Code No. 34 Flow Chart, EGR Gas Temp. Sensor (1 of 2)

Courtesy of ISUZU MOTOR CO.

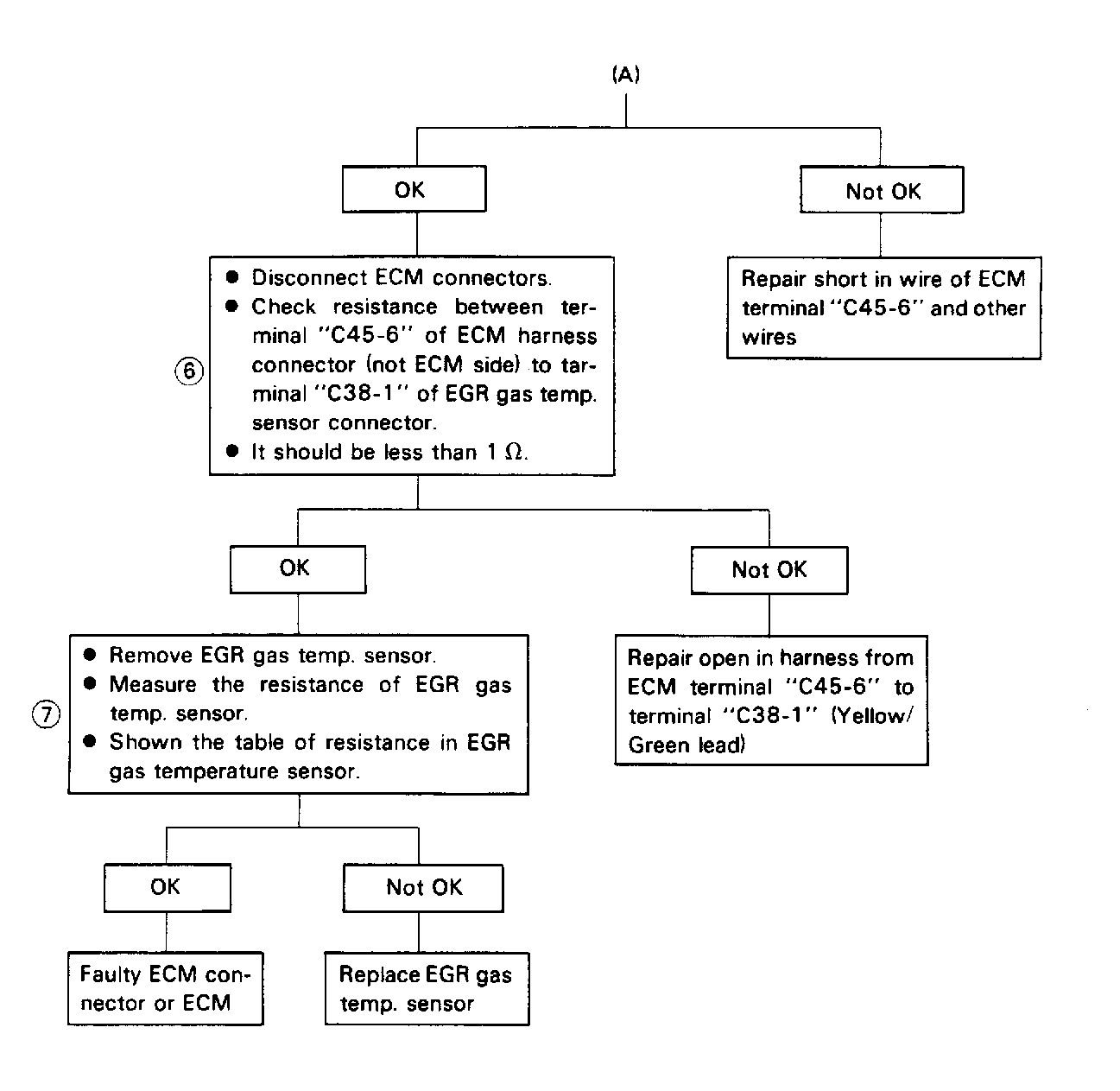

Fig 3: Code No. 34 Flow Chart, EGR Gas Temp. Sensor (2 of 2)

Courtesy of ISUZU MOTOR CO.
