Code 31 - Ignition Reference Signal

Fig 1: Code No. 31 Schematic, Ignition Reference Signal
G91B17492Courtesy of ISUZU MOTOR CO.

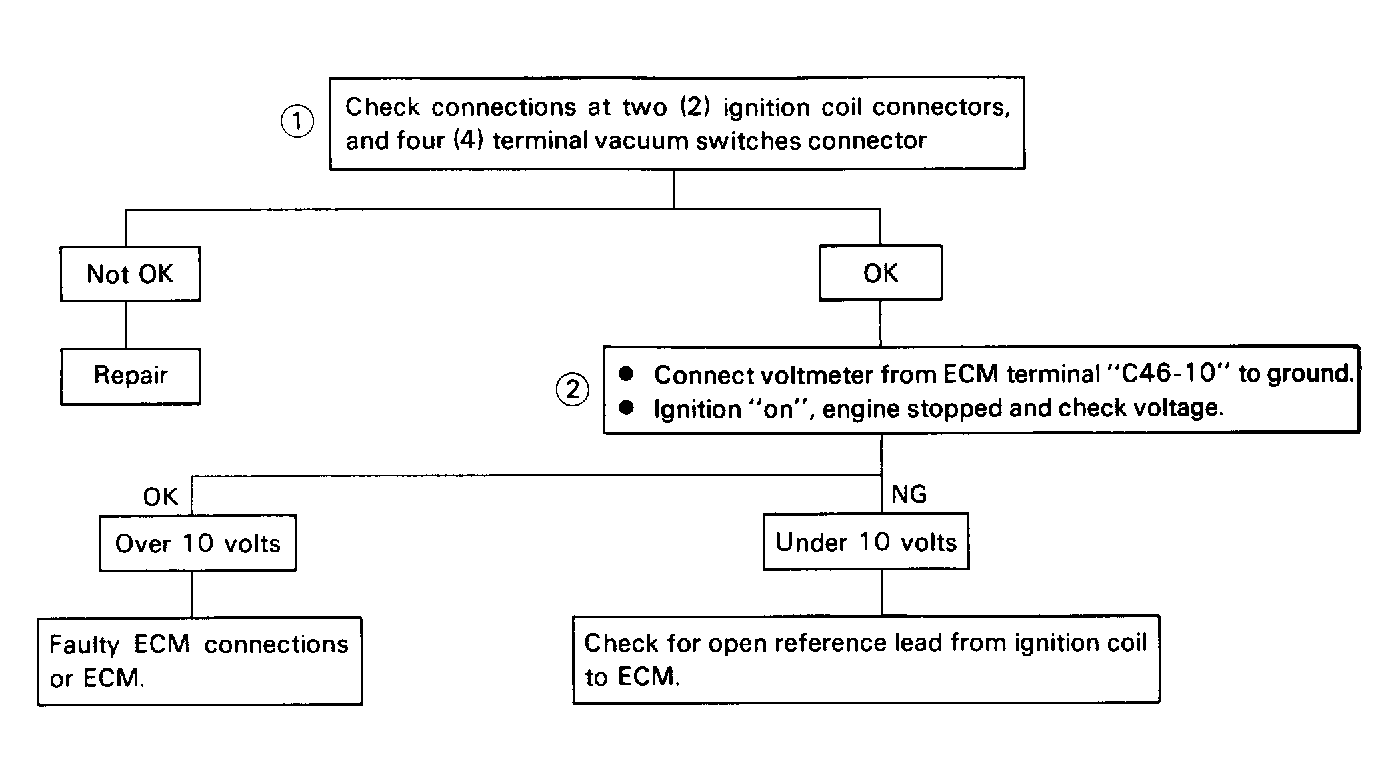

Fig 2: Code No. 31 Flow Chart, Ignition Reference Signal
G91C17493Courtesy of ISUZU MOTOR CO.
