Code 15 - Open Coolant Temperature Sensor Signal

Fig 1: Code No. 15 Schematic, Open Coolant Temp. Sensor Signal

Courtesy of ISUZU MOTOR CO.

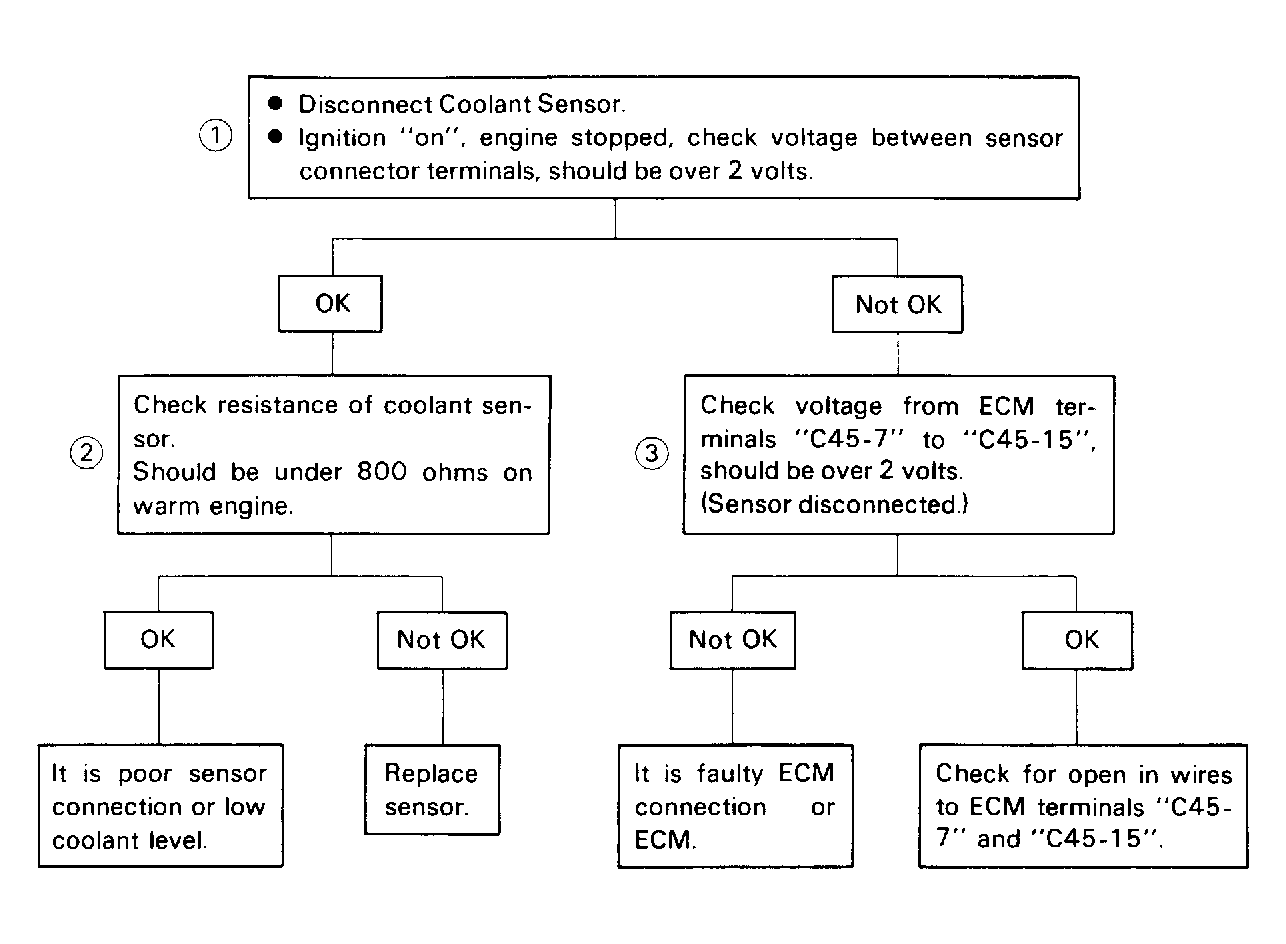

Fig 2: Code No. 15 Flow Chart, Open Coolant Temp. Sensor Signal

Courtesy of ISUZU MOTOR CO.
