Code 14 - Shorted Coolant Temperature Sensor Signal

Fig 1: Code No. 14 Schematic, Shorted Coolant Temp. Sensor Signal

Courtesy of ISUZU MOTOR CO.

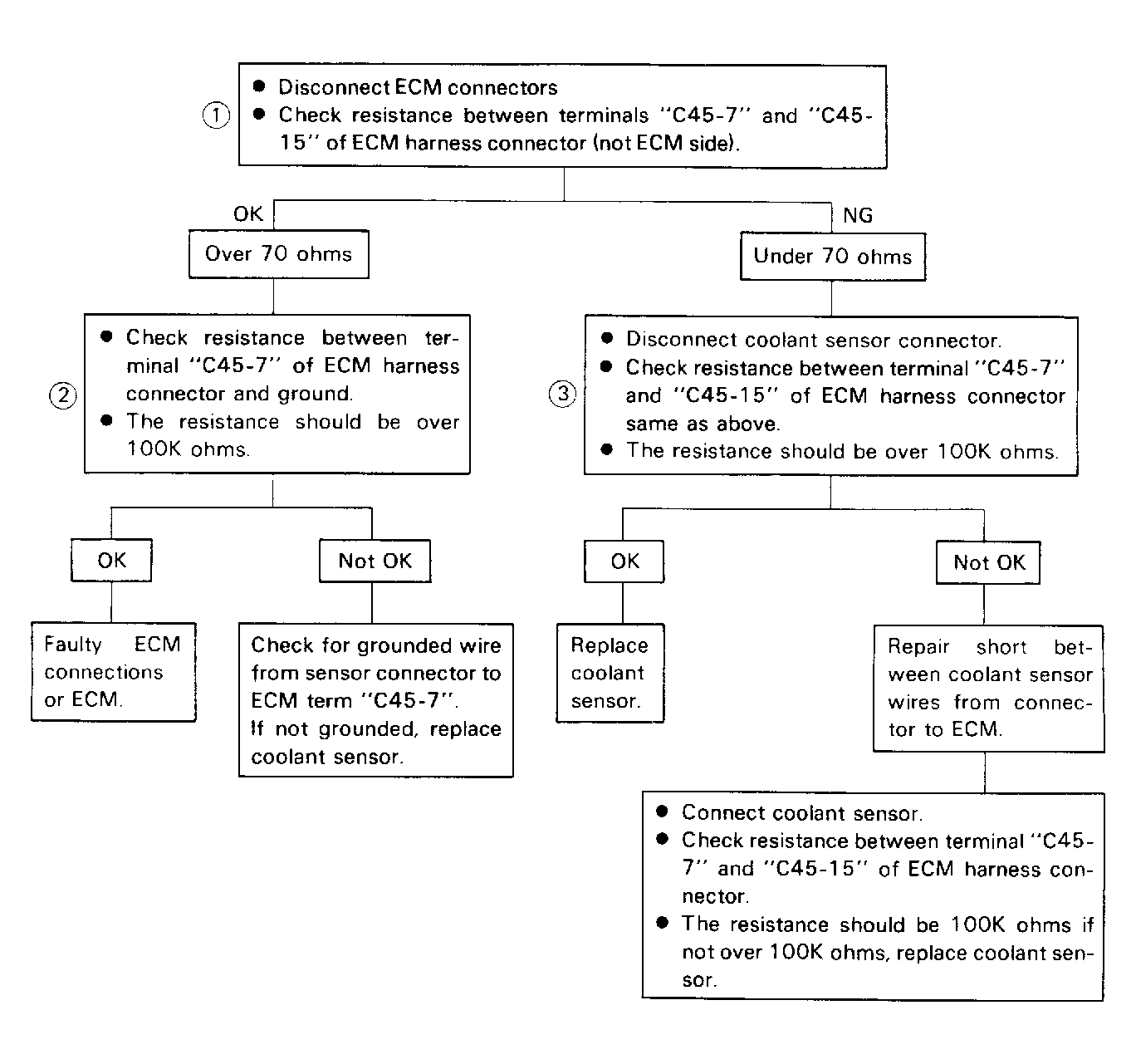

Fig 2: Code No. 14 Flow Chart, Shorted Coolant Temp. Sensor Signal

Courtesy of ISUZU MOTOR CO.
