Inspection & Repair

Check continuity between switch terminals of relays D-8 and D-13. See Fig 1 . If readings are not as specified, replace switch. See TAMPER SWITCH  under REMOVAL & INSTALLATION.

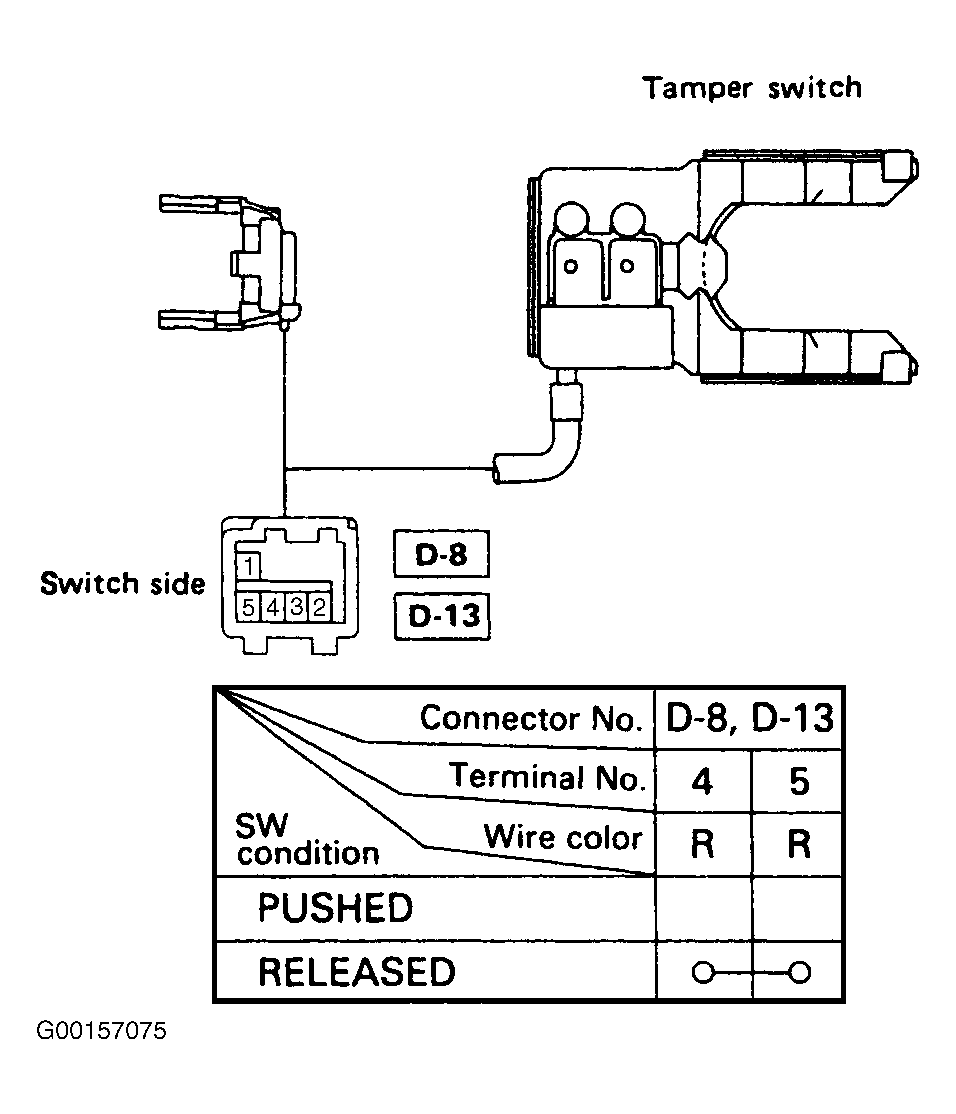

Fig 1: Testing Tamper Switch Connectors D-8 & D-13

Courtesy of ISUZU MOTOR CO.
