Inspection & Repair

Check continuity between switch terminals and switch body. See Fig 1 . If readings are not as specified, replace switch.

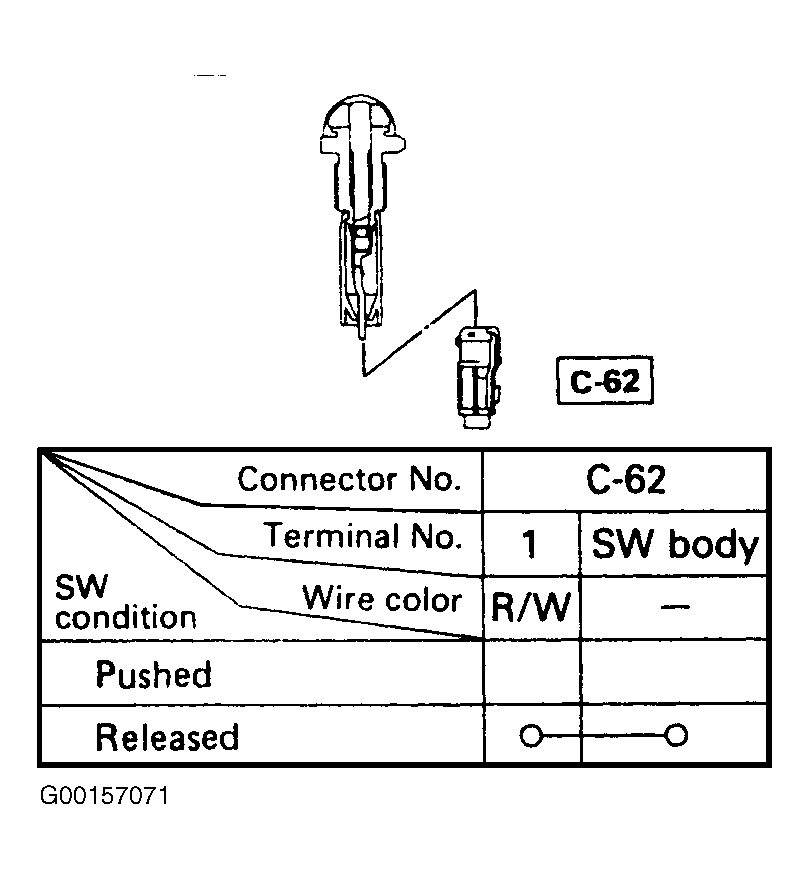

Fig 1: Testing Engine Hood Switch Circuit C-62

Courtesy of ISUZU MOTOR CO.
