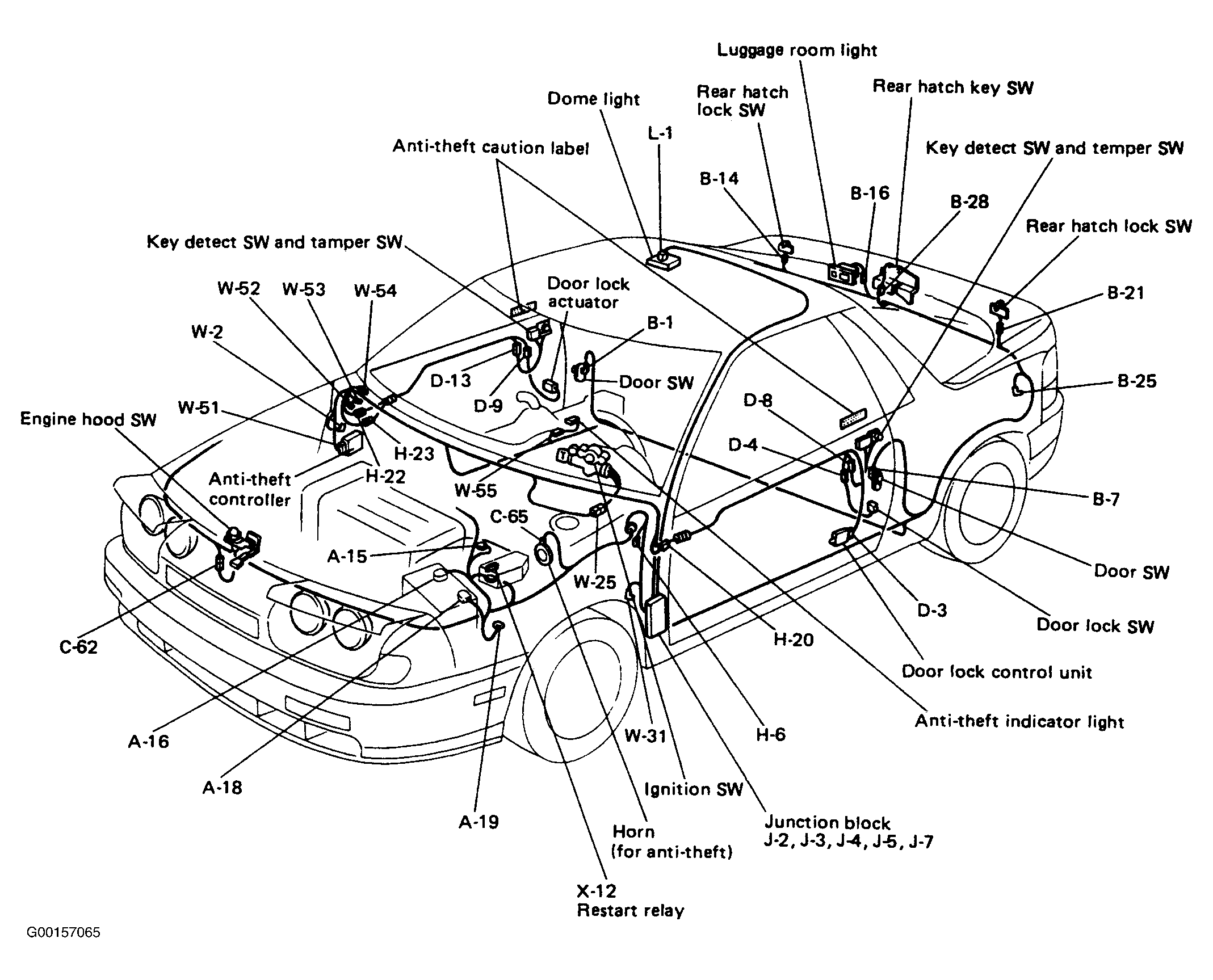

| Anti-Theft Controller |
Behind Right Kick Panel |
| Diode A (W-52) |
Above Right Kick Panel, Taped To Harness |
| Diode B (W-53) |
Above Right Kick Panel, Taped To Harness |
| Diode C (W-54) |
Above Right Kick Panel, Taped To Harness |
| Door Lock Controll Unit |
Lower Rear Of Driver's Door |
| Ground (B-25) |
Left Rear Corner Of Luggage Compartment |
| Ground (W-2) |
Behind Right Kick Panel |
| Ground (W-31) |
Behind Left Kick Panel |
| Horn Relay |
In Junction Block |
| Junction Block |
Behind Left Kick Panel |
| Key Detect Switch & Tamper Switch |
On Appropriate Lock Cylinder |
| Restart Relay |
In Underhood Relay Box |
| Underhood Relay Box |
Left Front Corner Of Engine Compartment |
