Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Connector Identification
Connector Identification
To identify all the necessary connectors, see
Fig 1
.

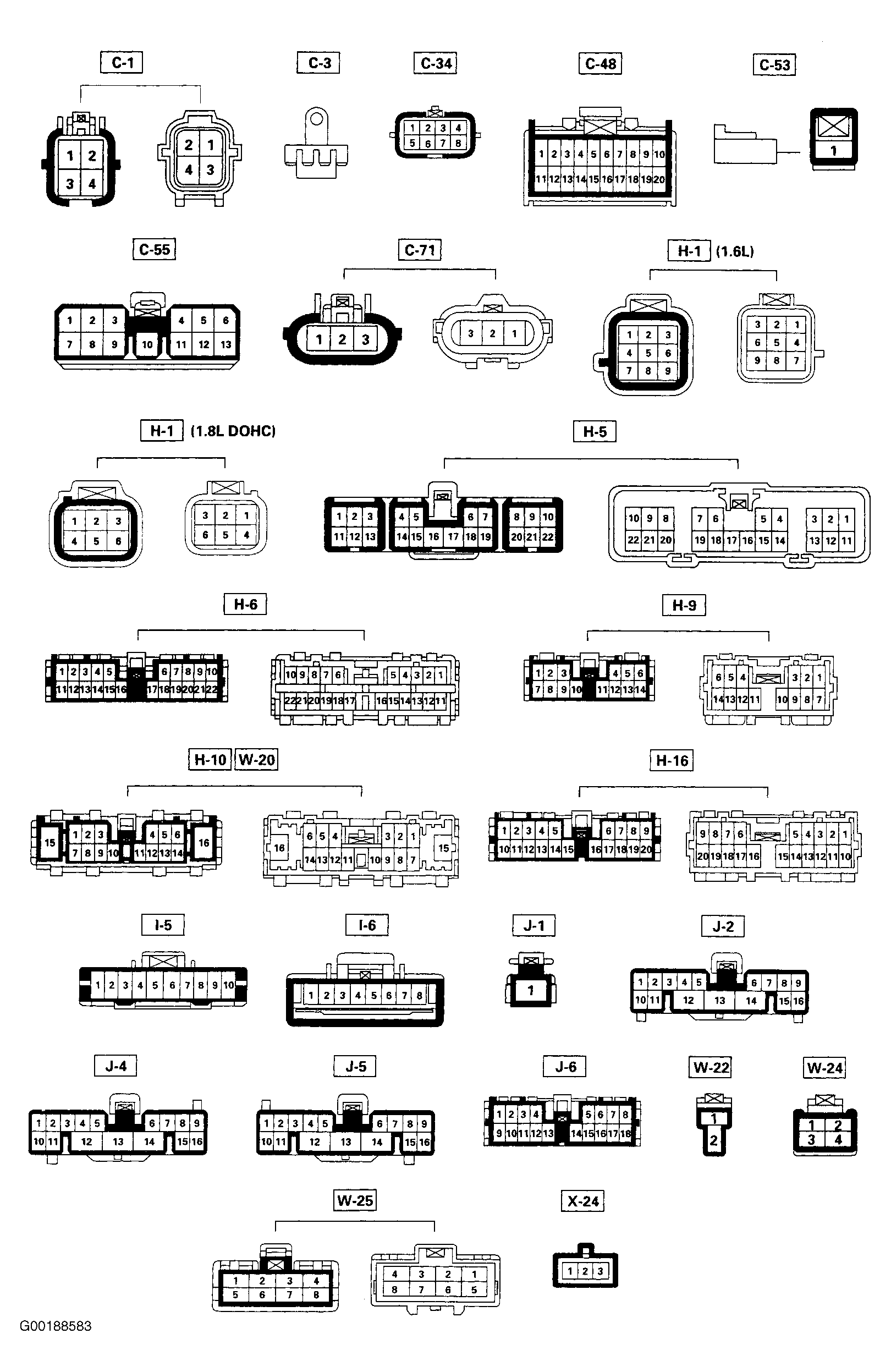

Fig 1: Identifying Cruise Control Connectors
Courtesy of ISUZU MOTOR CO.
