Component Locations

COMPONENT LOCATIONS

Component	Location
Fuse Box	Left Fender Skirt. See Fig 1 .
Fuse No. 1 (10 Amp)	In Fuse Box. See Fig 1 .
Fuse No. 16 (10 Amp)	In Fuse Box See Fig 1 .
Power Window Switch	In Respective Door Trim Panel. See Fig 2 .
Power Window Motor	In Front Door Panel. See Fig 2 .
Power Window Relay	In Fuse Box. See Fig 1 .

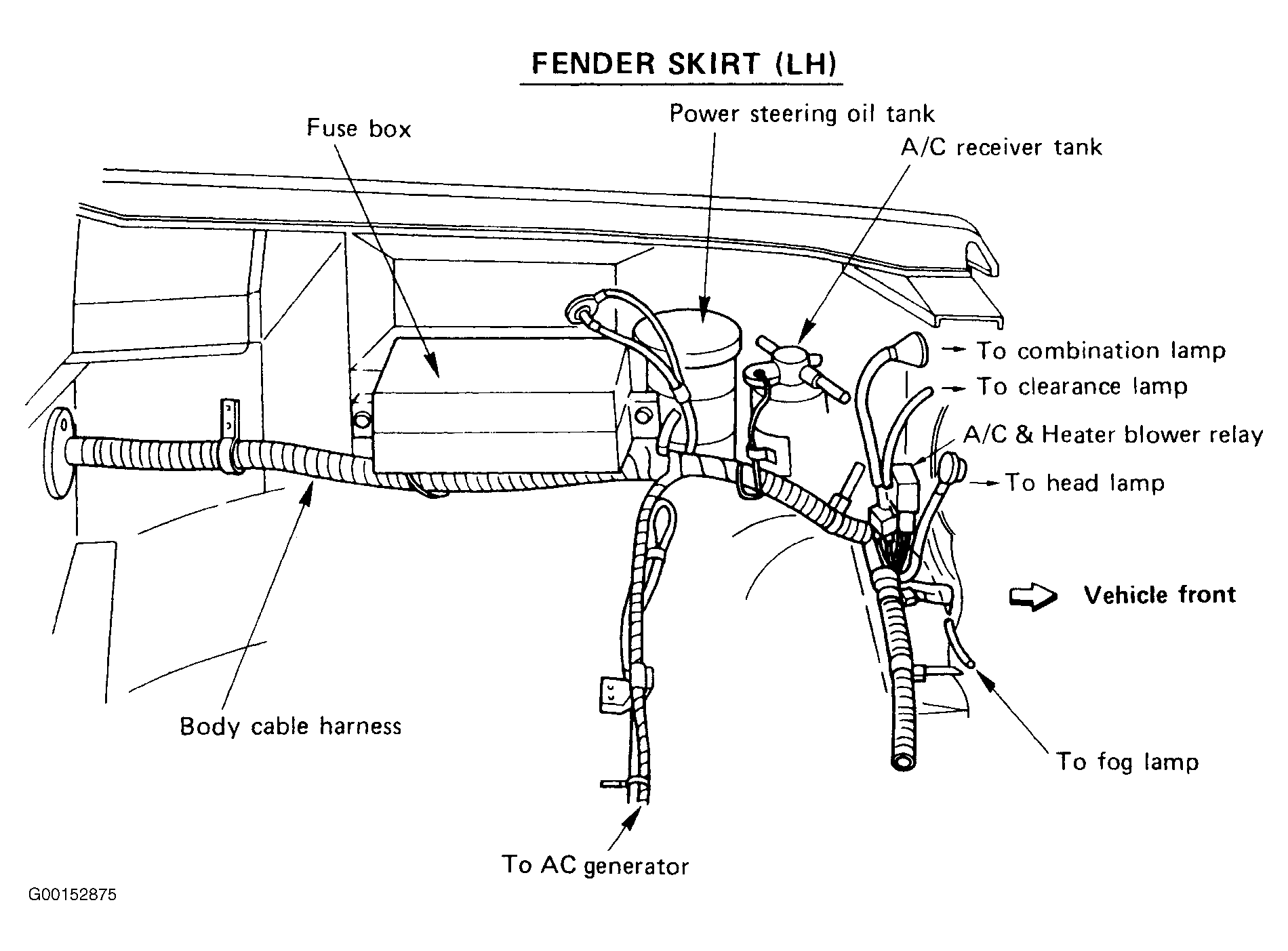

Fig 1: Locating Fuse Box

Courtesy of ISUZU MOTOR CO.

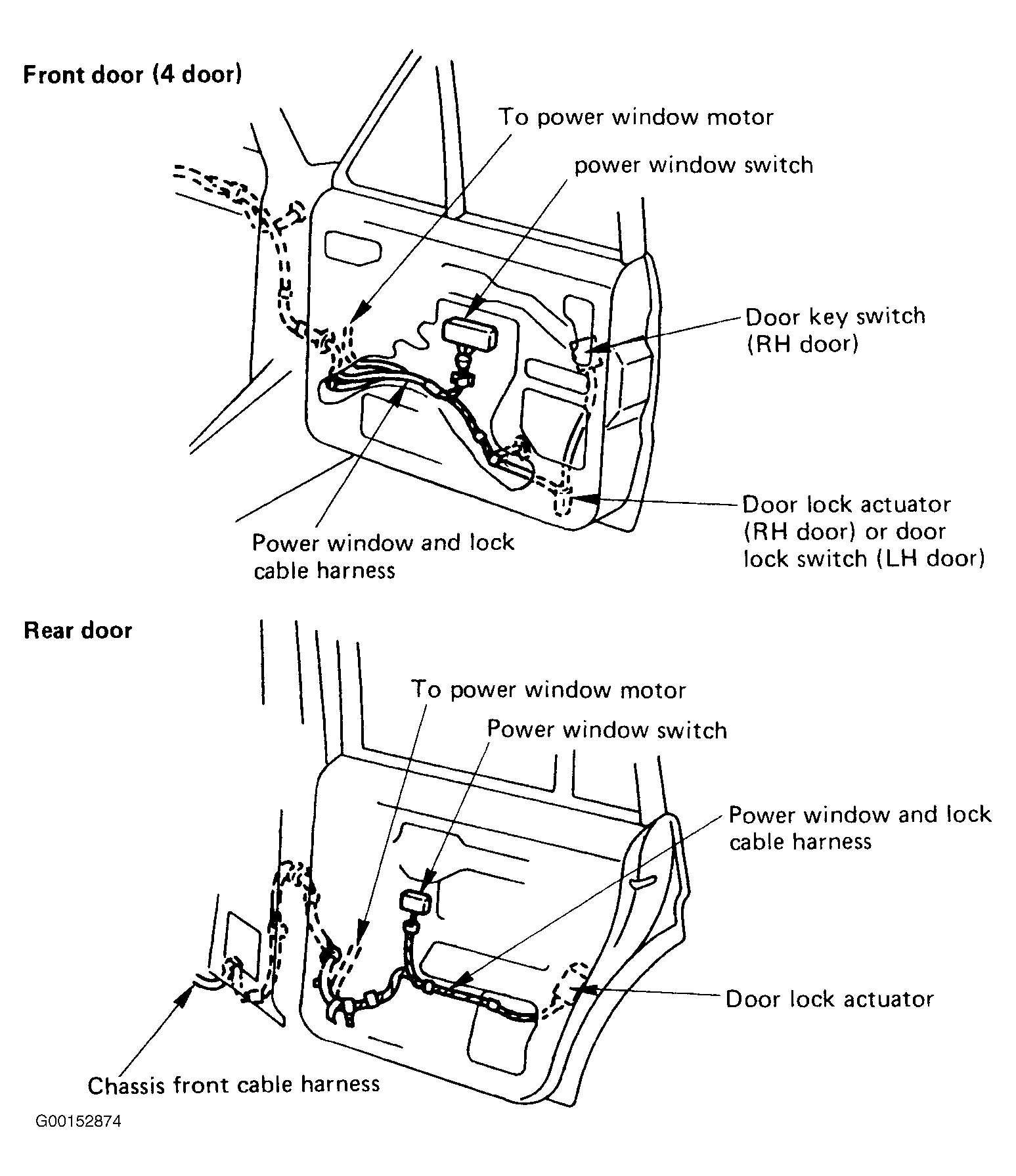

Fig 2: Locating Power Window Components

Courtesy of ISUZU MOTOR CO.
