Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cruise Control Module (2.8L) | On right side of glove box. |
| Door Lock Controller | On left kick panel. |
| EGR Control Module (2.8L) | On right rear corner of engine, next to distributor. |

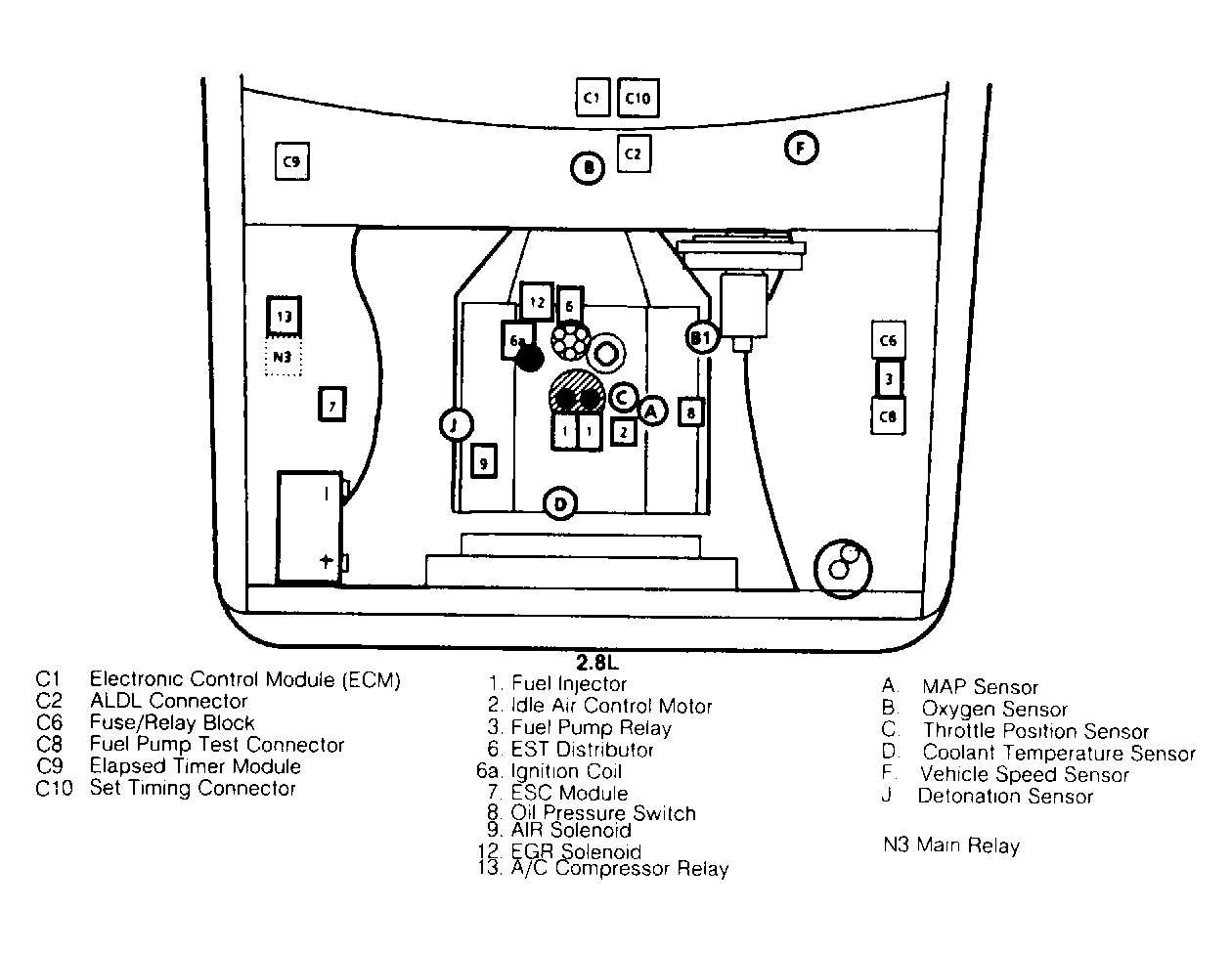

| Elapsed Timer Module (2.8L) | Under right side of dash. See Figure. |

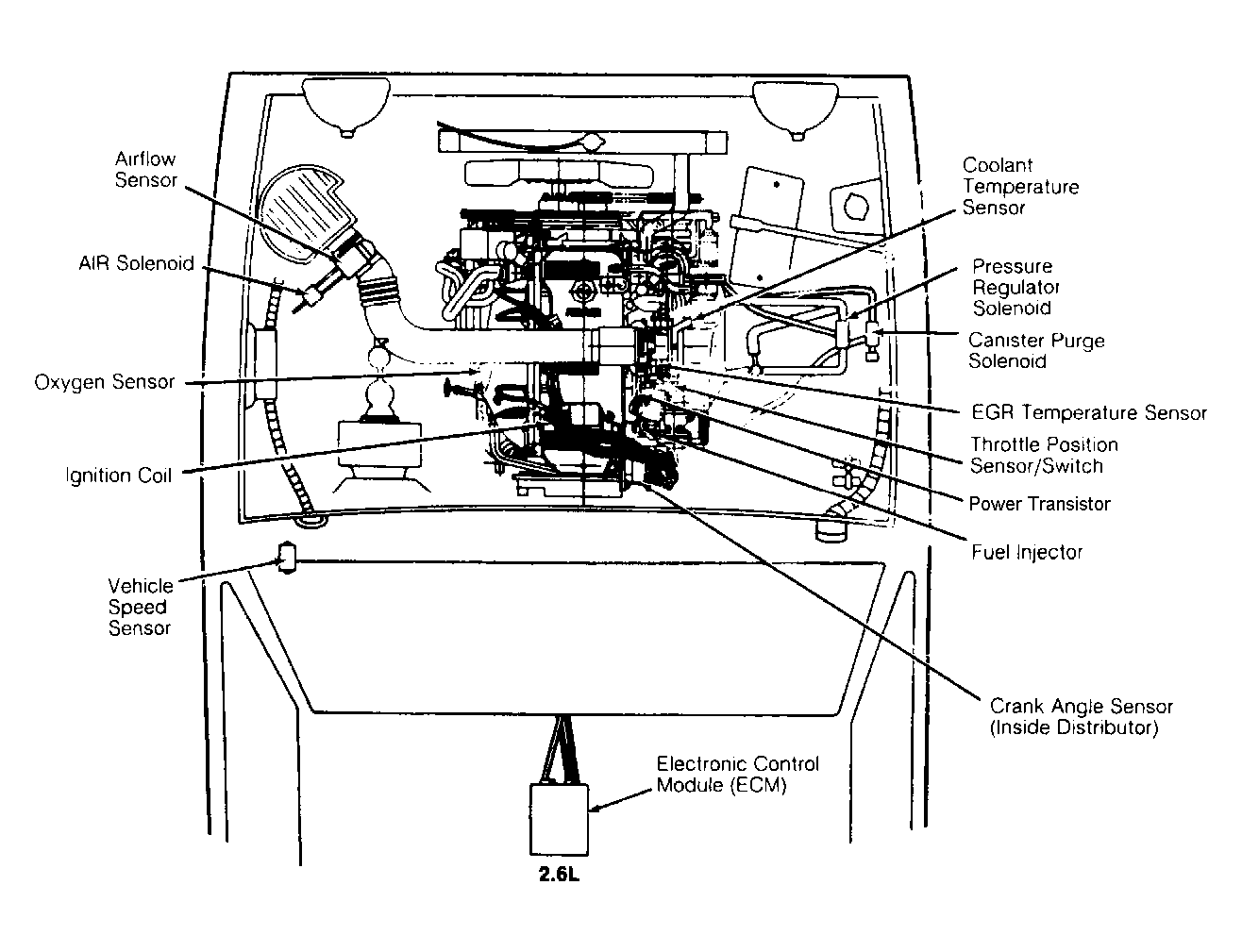

| Electronic Control Module (ECM) | Under center console. See Figure, Figure & Figure . |
| Electronic Trans. Control Unit (2.6L) | Behind left side of dash, at kick panel. |
| ESC Module (2.8L) | On right inner fender panel. See Figure. |
| EST Distributor | At rear of engine. See Figure. |
| Seat Belt/Lights/Ignition Chime Module | Behind right side of dash, near kick panel. |
