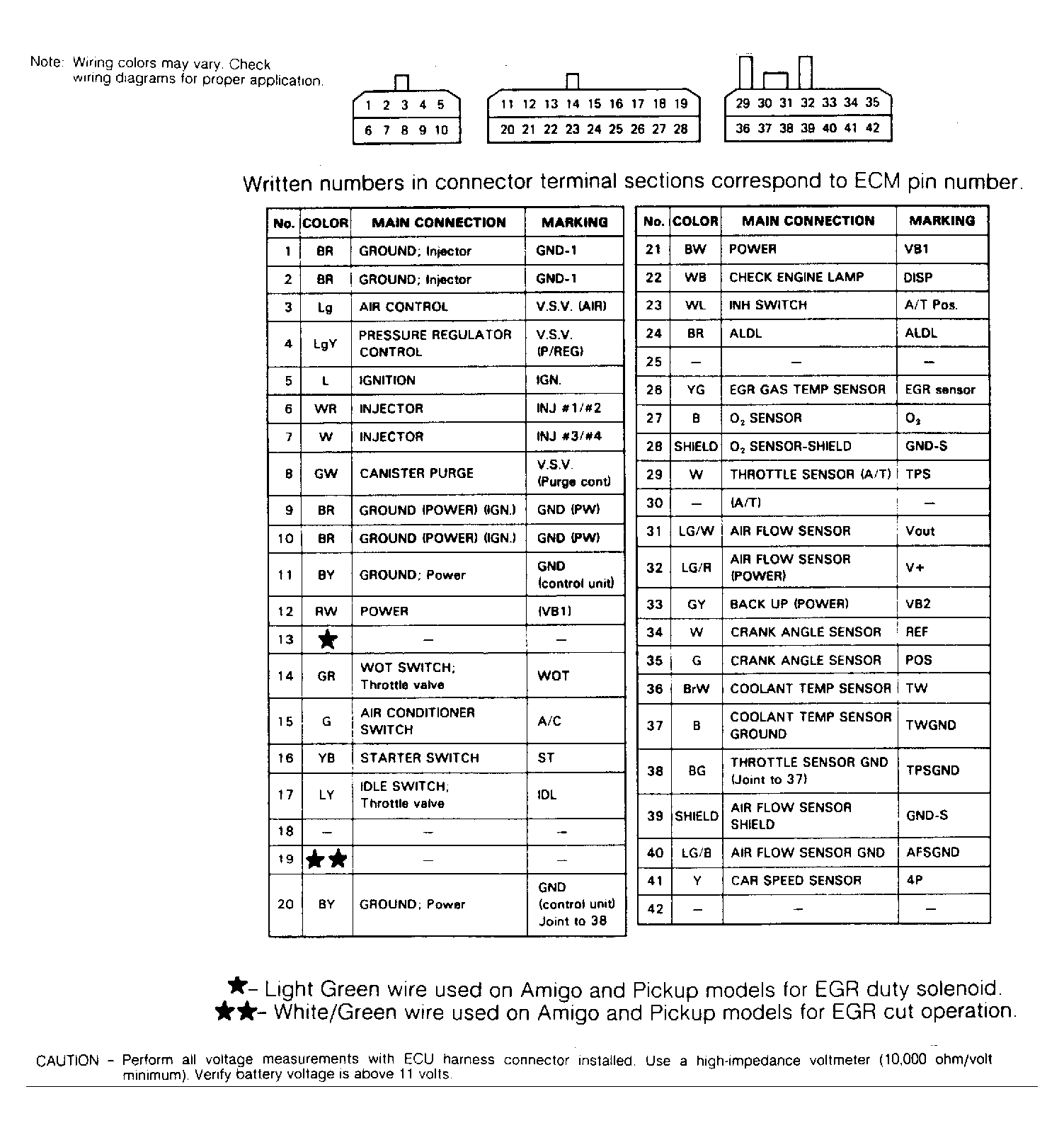

Home >> Isuzu >> 1990 >> Trooper LS, 2.8 R, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - 2.6L >> Diagnostic Circuit Check >> Ecu Terminal Identification
