Code 63: VSS Signal
Code 63: VSS Signal

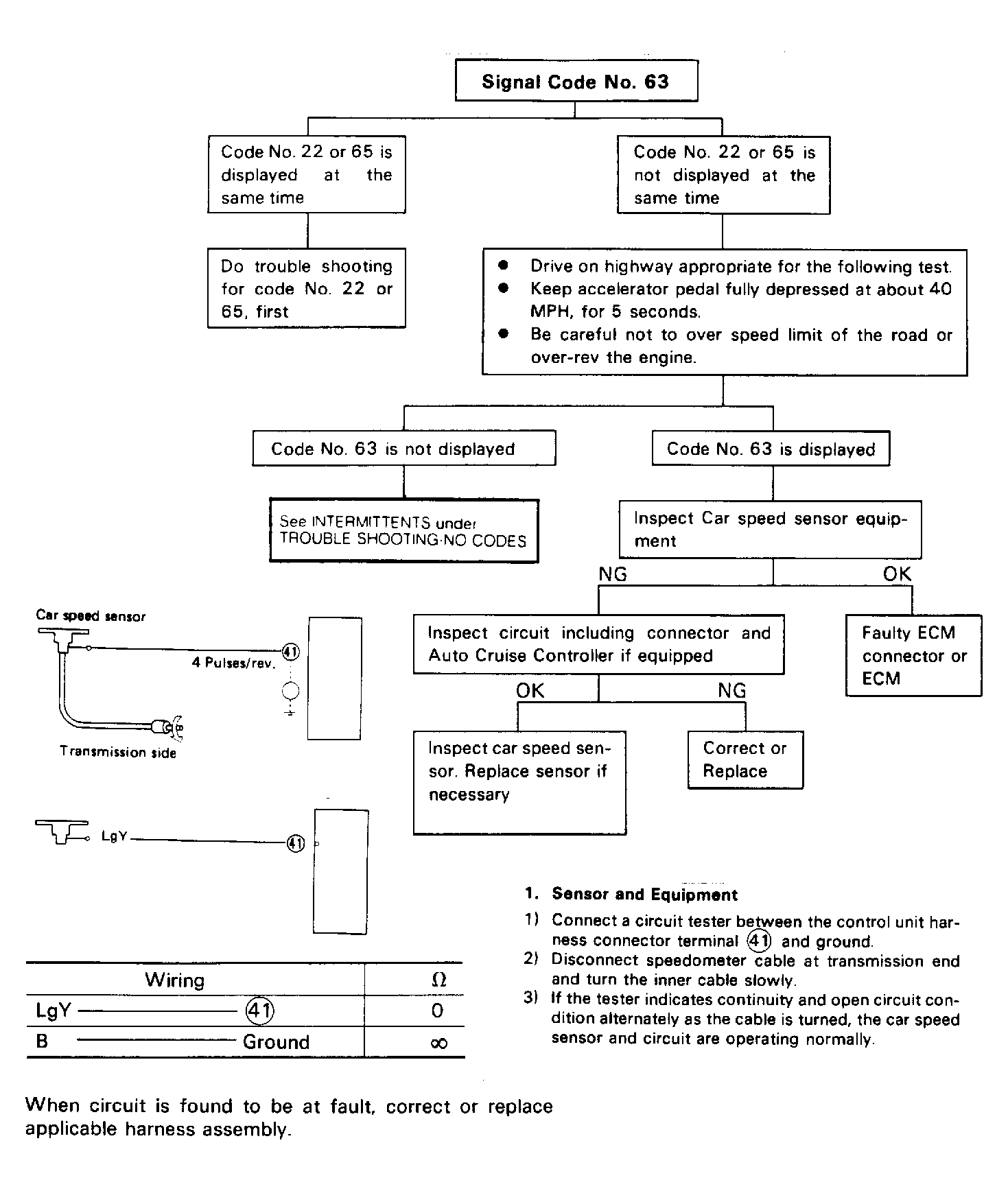

Fig 1: Code 63: Circuit Diagram & Flow Chart, Sensor & Equipment Test
Courtesy of ISUZU MOTOR CO.

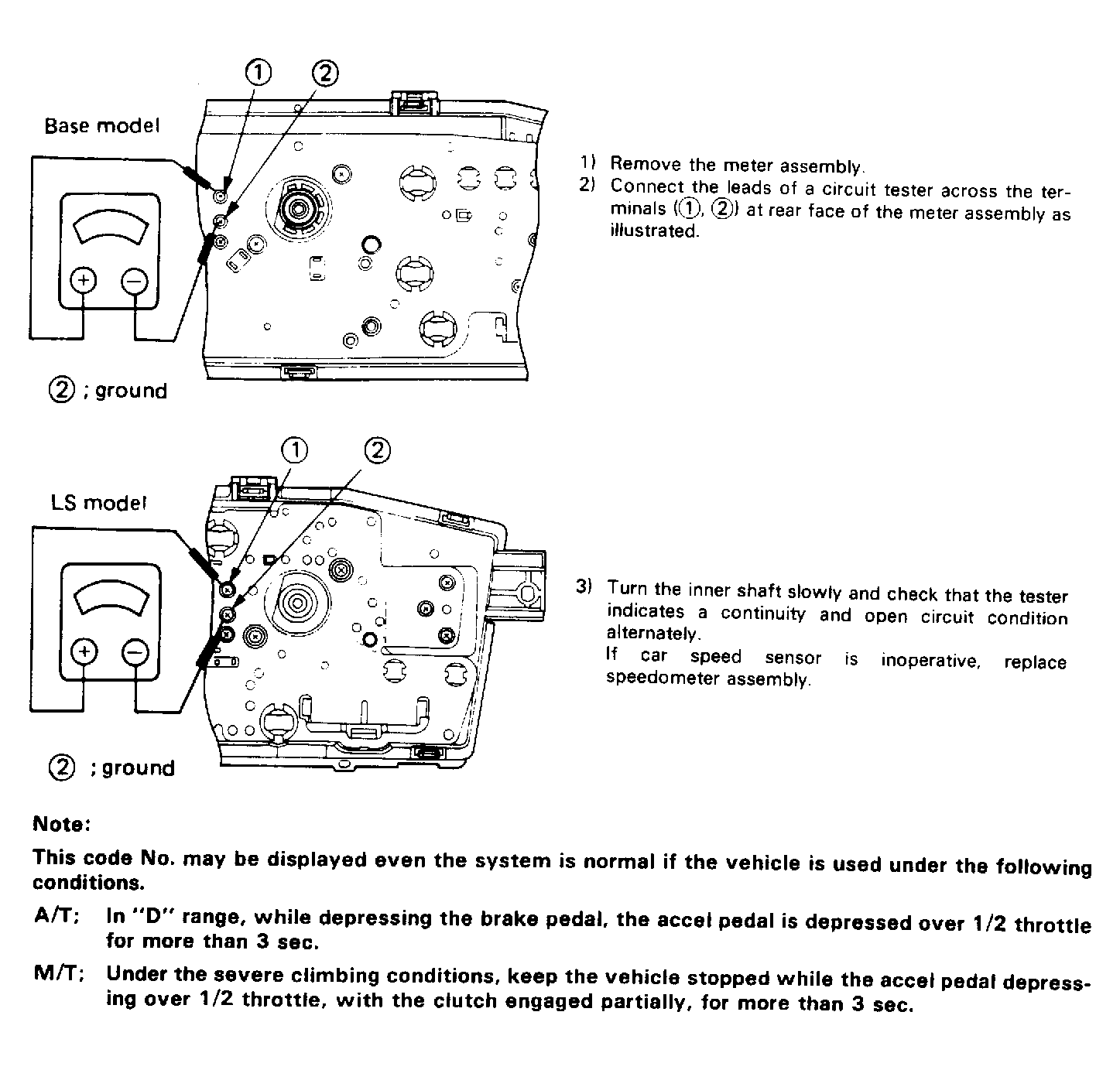

Fig 2: Code 63: Car Speed Sensor Test & Test Points
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
