Code 44 & 45: O2 Sensor - Lean/Rich Fuel Mixture

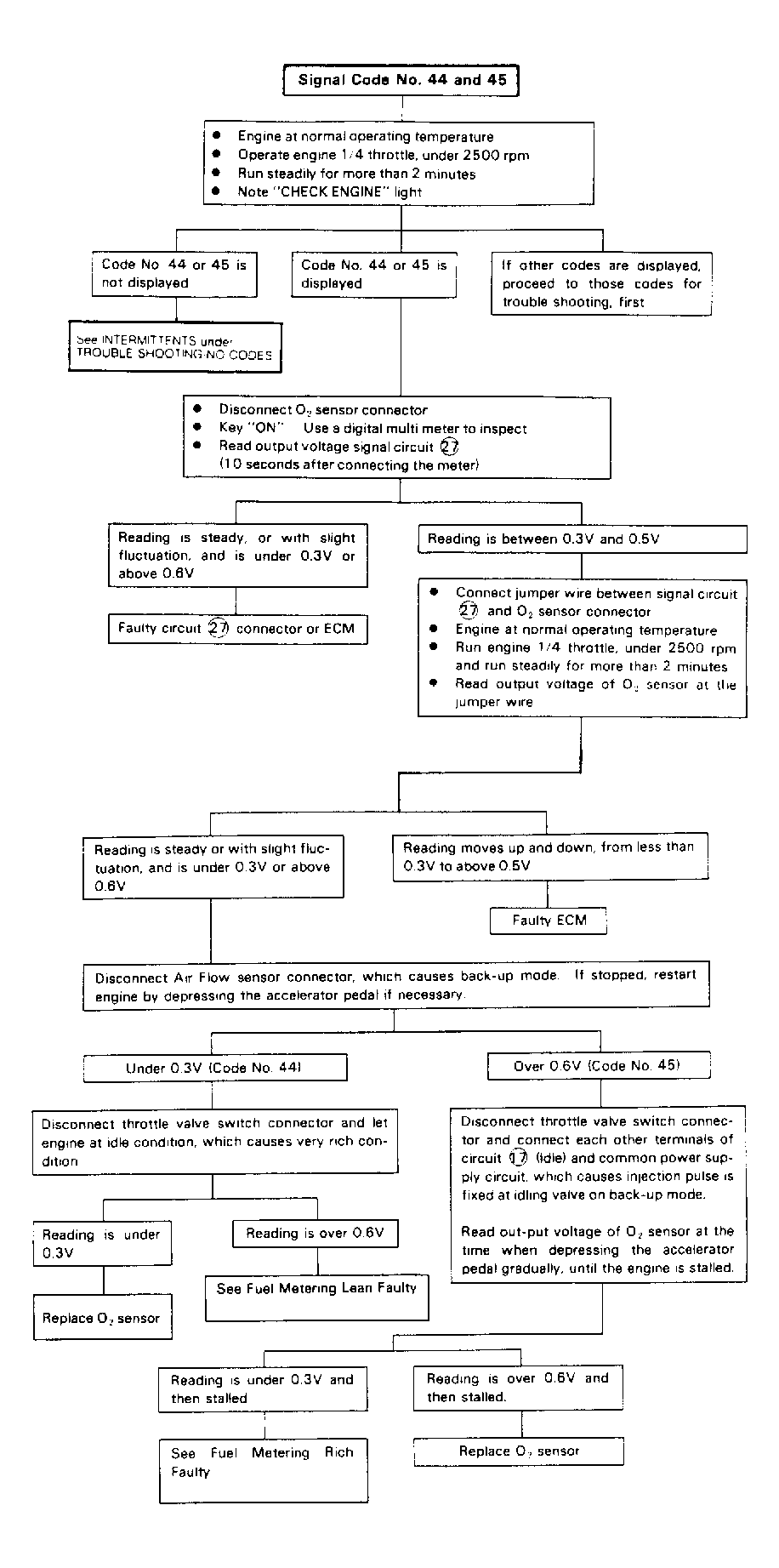

Fig 1: Code 44 & 45: Flow Chart O2 Sensor - Lean/Rich Fuel Mixture

Courtesy of ISUZU MOTOR CO.

Fig 2: Code 44 & 45: O2 Sensor Circuit Diagram

Courtesy of ISUZU MOTOR CO.
