Code 43: Throttle Valve Switch

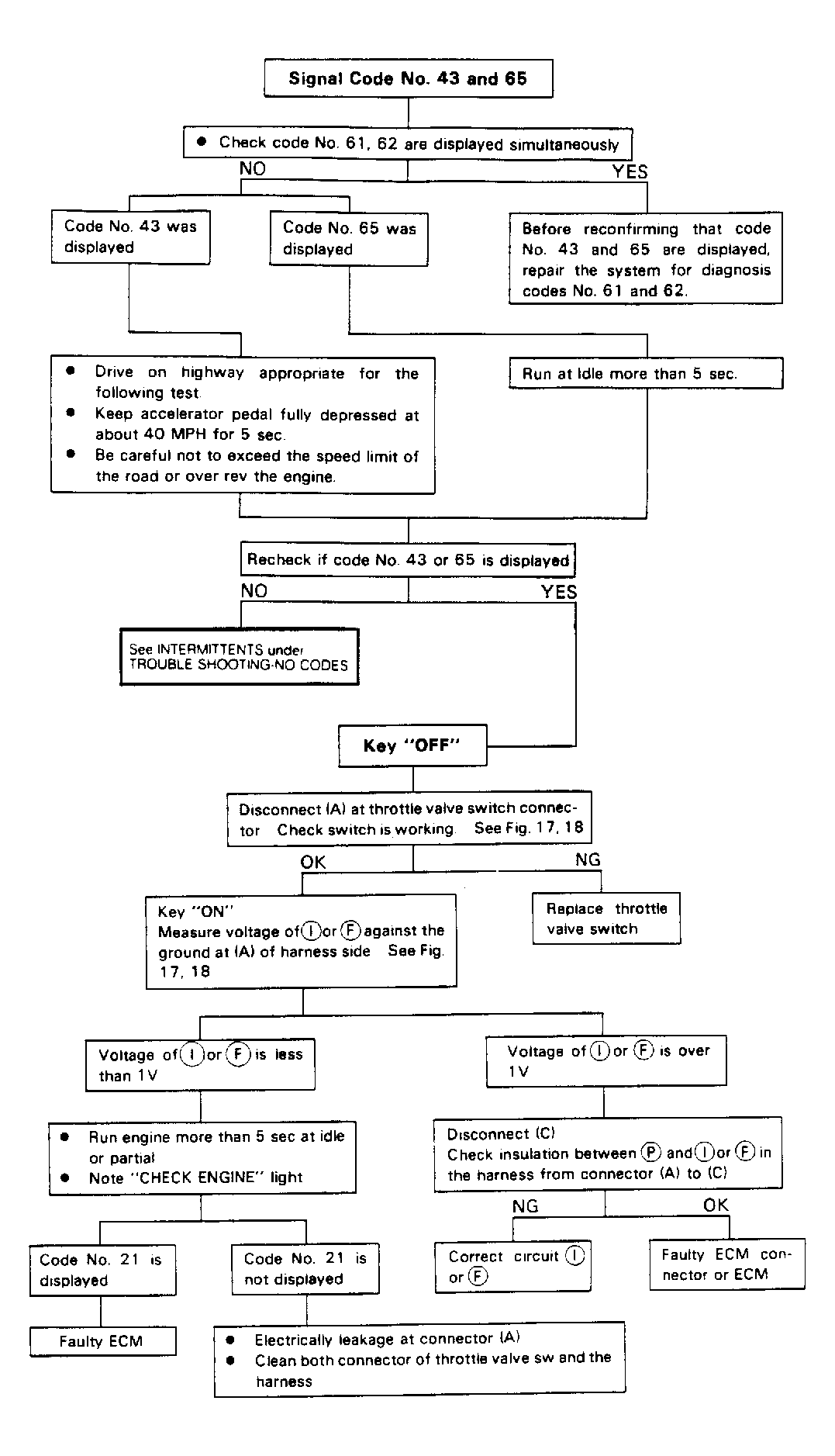

Fig 1: Code 43: Flow Chart Throttle Valve Switch

G122251

Courtesy of ISUZU MOTOR CO.

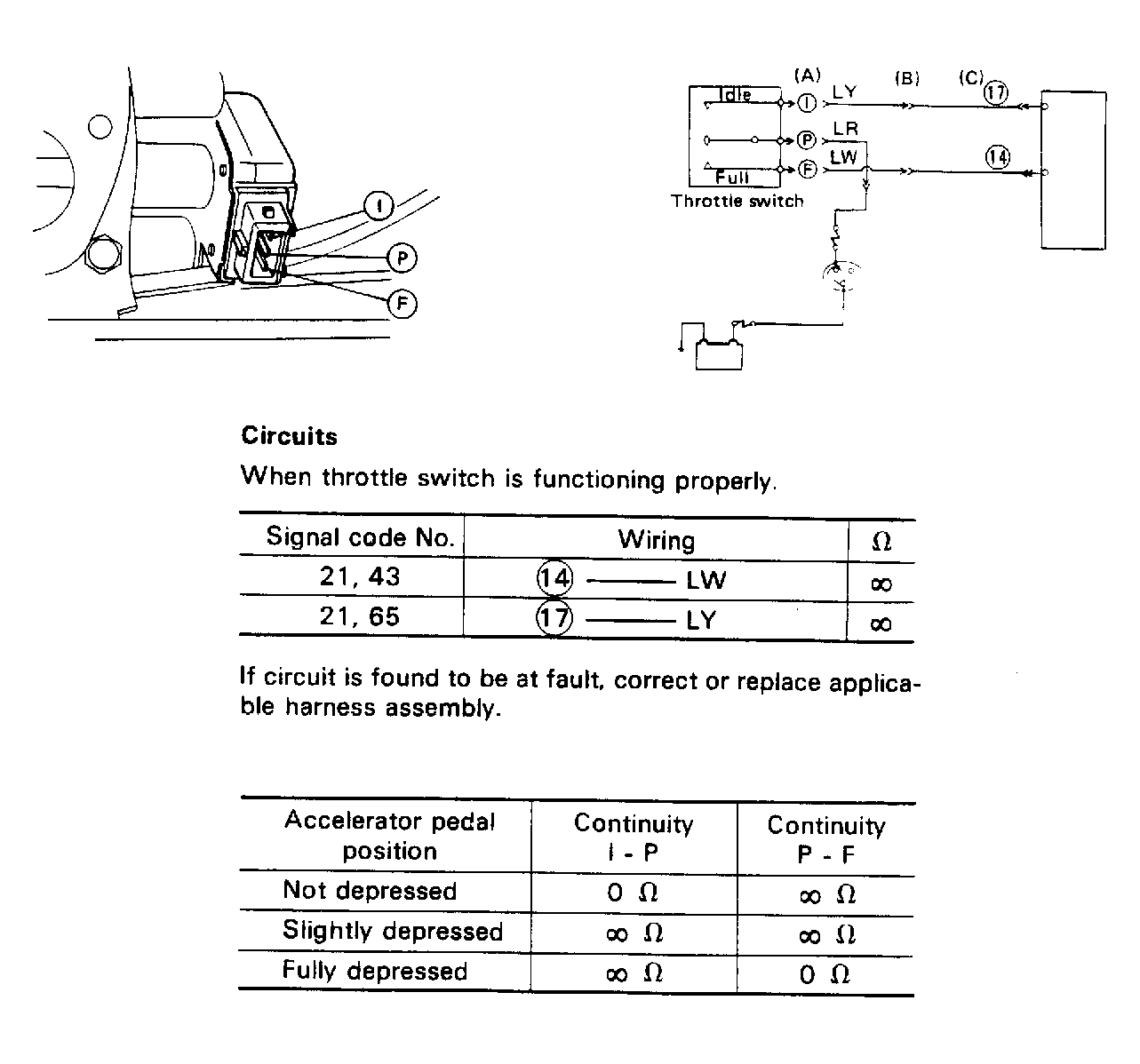

Fig 2: Code 43: Throttle Valve Circuit & Connector Pin Voltages

G122250

Courtesy of ISUZU MOTOR CO.
