Code 32: EGR System Malfunction

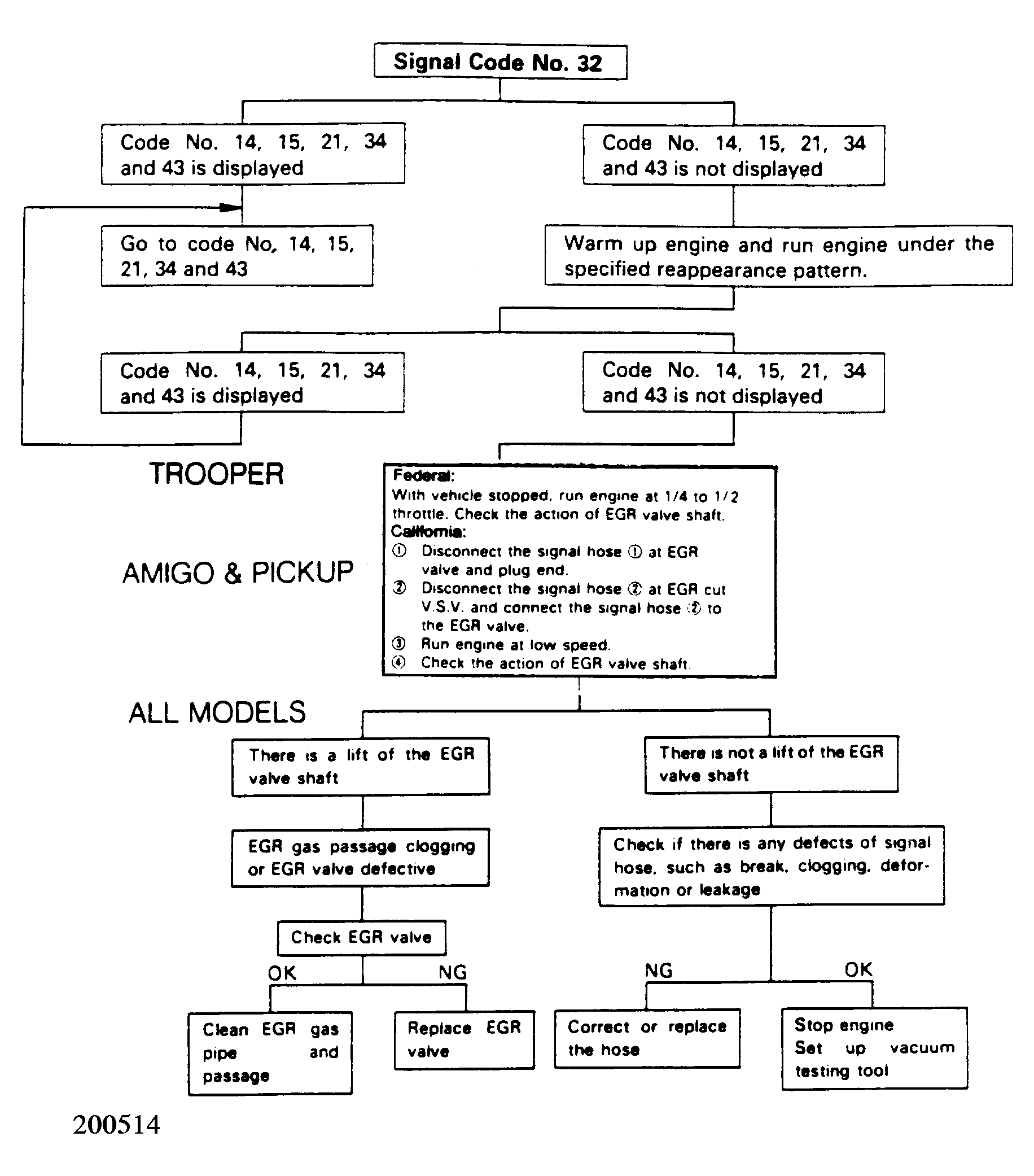

Fig 1: Code 32: Flow Chart (1 of 2), EGR System Malfunction
G200514Courtesy of ISUZU MOTOR CO.
Fig 2: Code 32: Flow Chart (2 of 2 Calif) EGR System Malfunction
G200512Courtesy of ISUZU MOTOR CO.
Fig 3: Code 32: Flow Chart (2 of 2 Federal) EGR System Malfunction
G200513Courtesy of ISUZU MOTOR CO.
Fig 4: Code 32: Specified Reappearance Pattern
G122244Courtesy of ISUZU MOTOR CO.
