Code 14: Coolant Temp Sensor Shorted

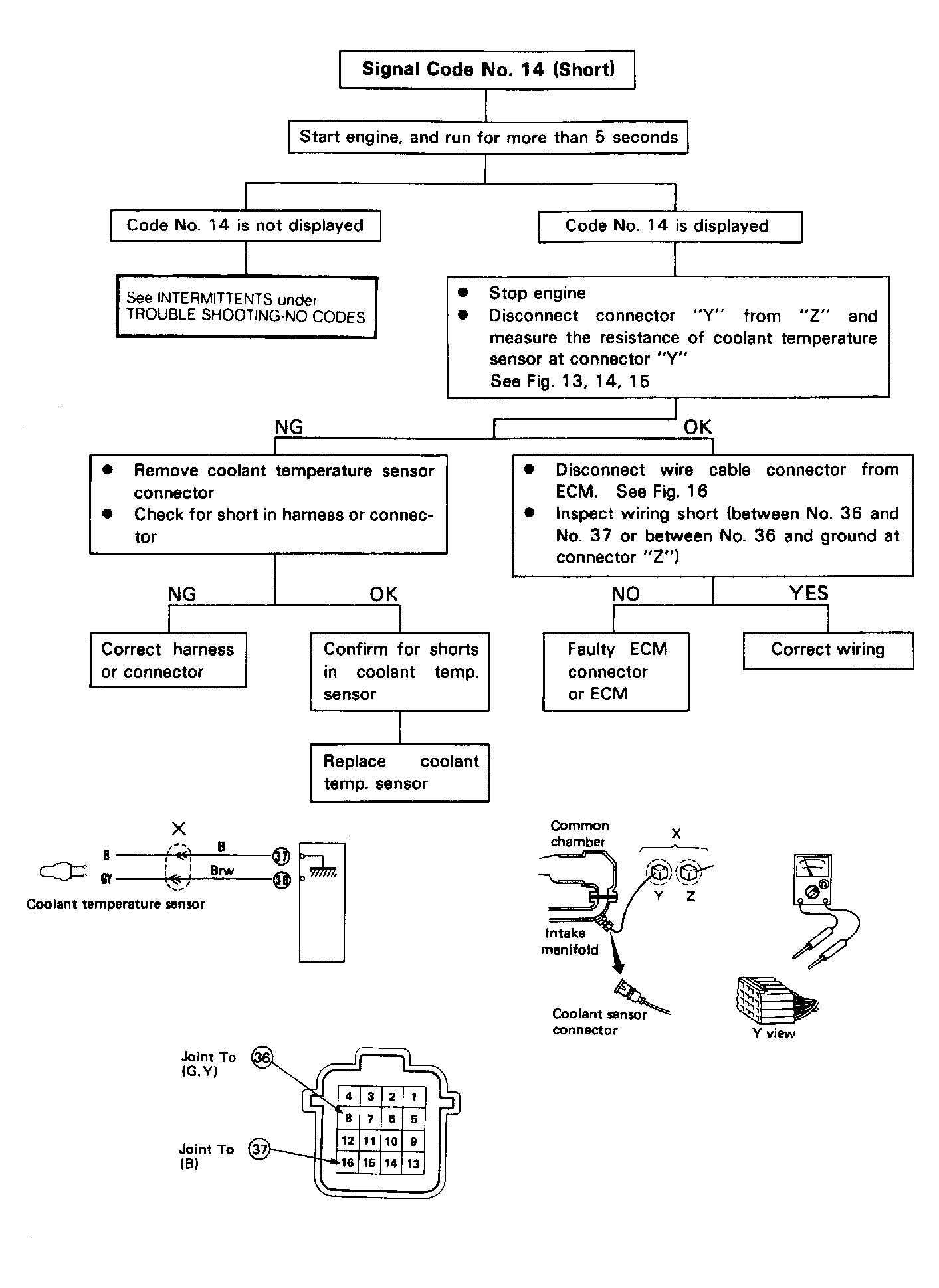

Fig 1: Code 14: Circuit Diagram & Flow Chart CTS Shorted

G122232

Courtesy of ISUZU MOTOR CO.
