Code 45 - O2 Reads Rich

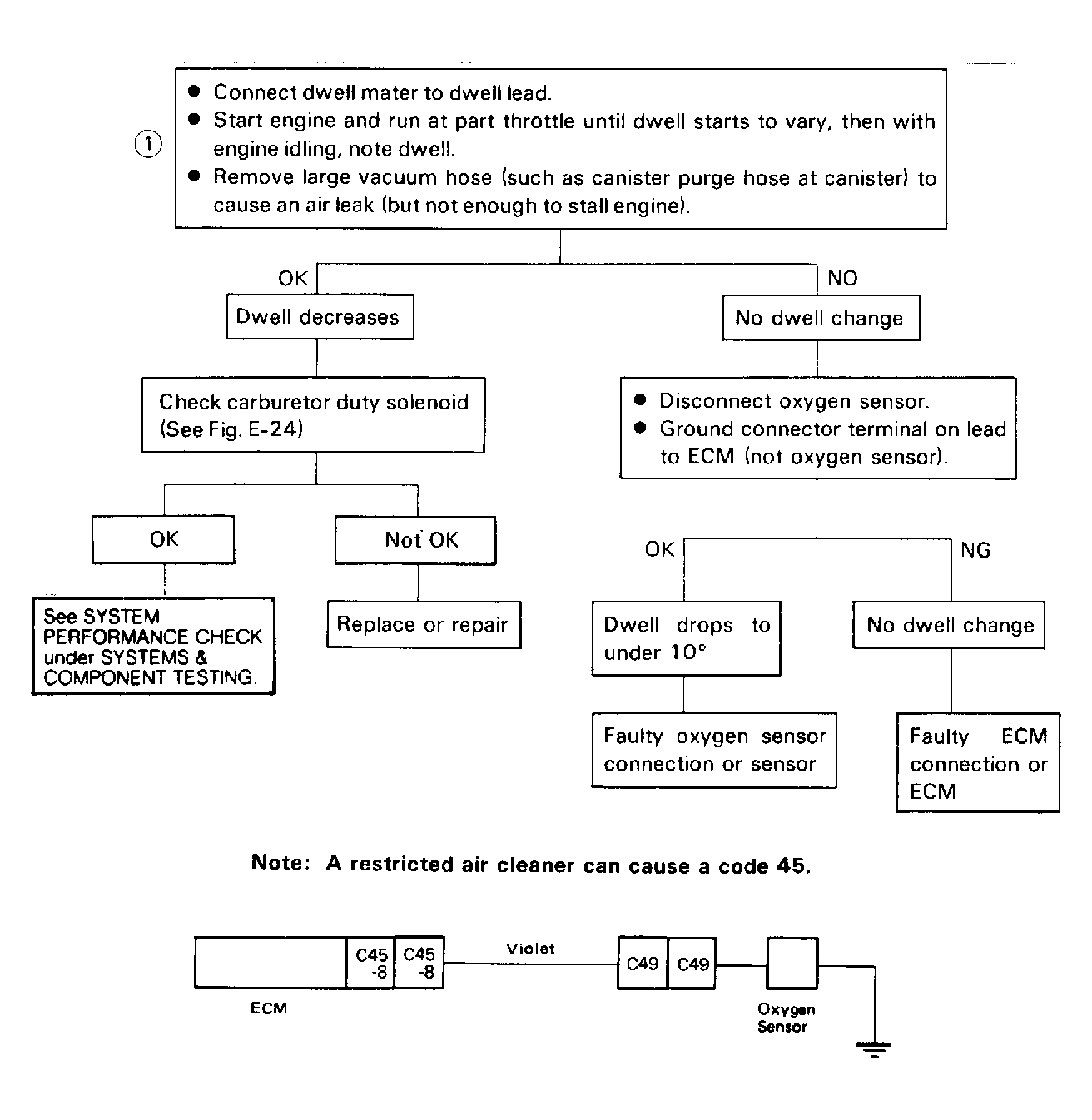

Fig 1: Flow Chart - Code 45, O2 Sensor, Rich Fuel Mixture

G122143

Courtesy of ISUZU MOTOR CO.
