Engine Controls - Tests W/Codes - CARBURETED
>>
Trouble Code Charts
>>
Code 44 - O2 Reads Lean
Code 44 - O2 Reads Lean

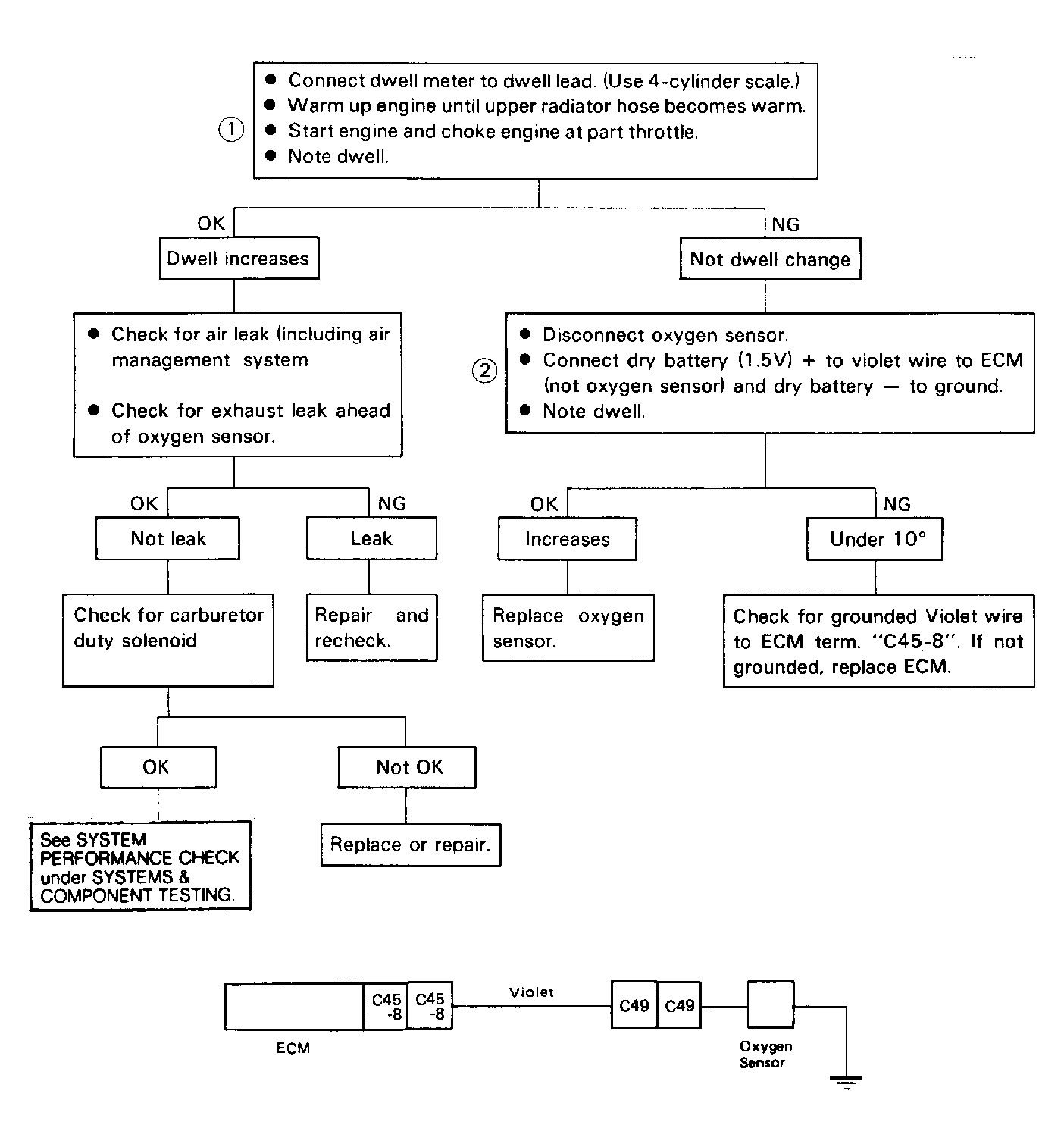

Fig 1: Flow Chart - Code 44, O2 Sensor, Lean Fuel Mixture
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
