Code 34 - EGR Gas Temp Sensor

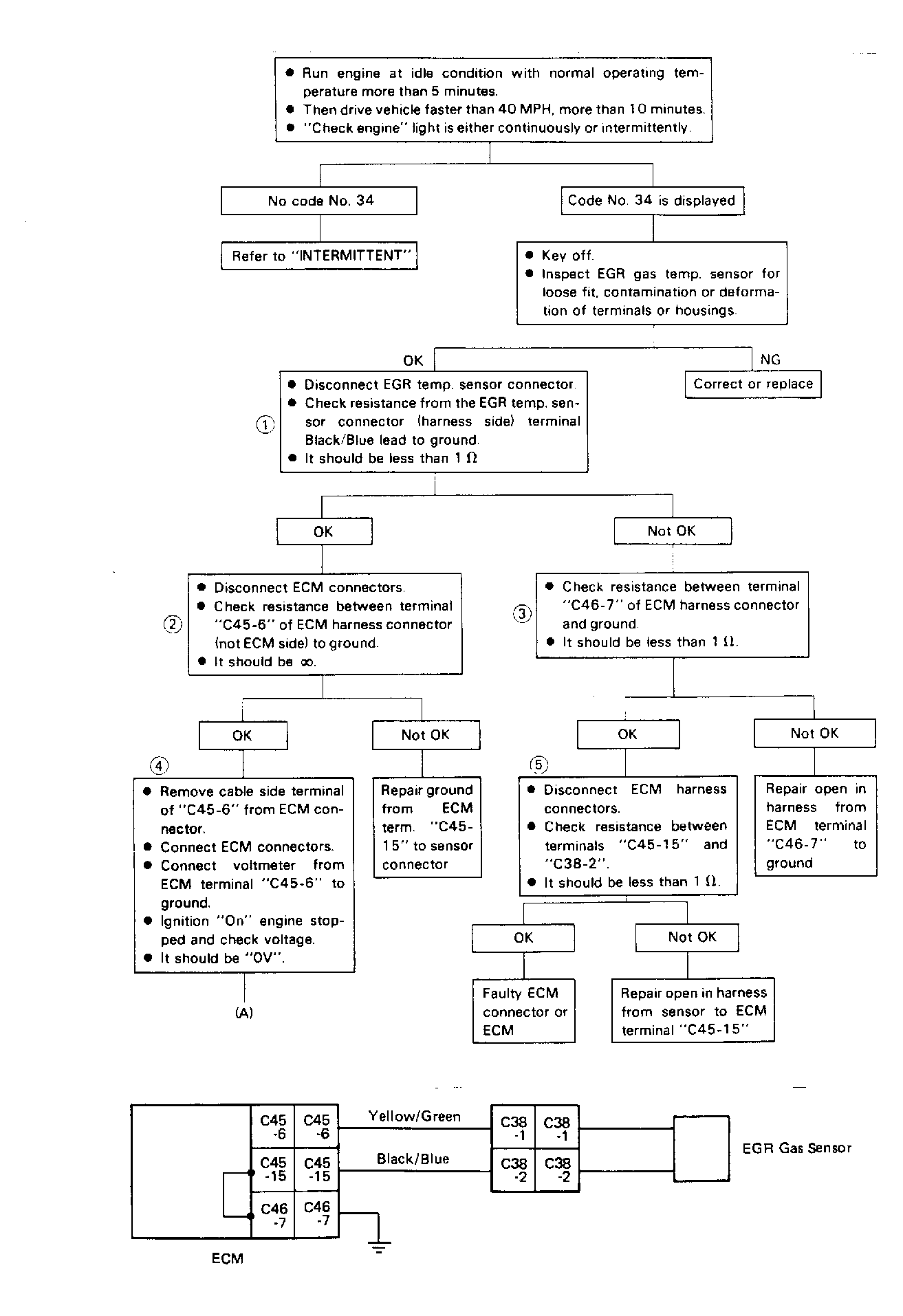

Fig 1: Flow Chart (1 of 2) - Code 34, EGR Gas Temperature Sensor
G122140Courtesy of ISUZU MOTOR CO.

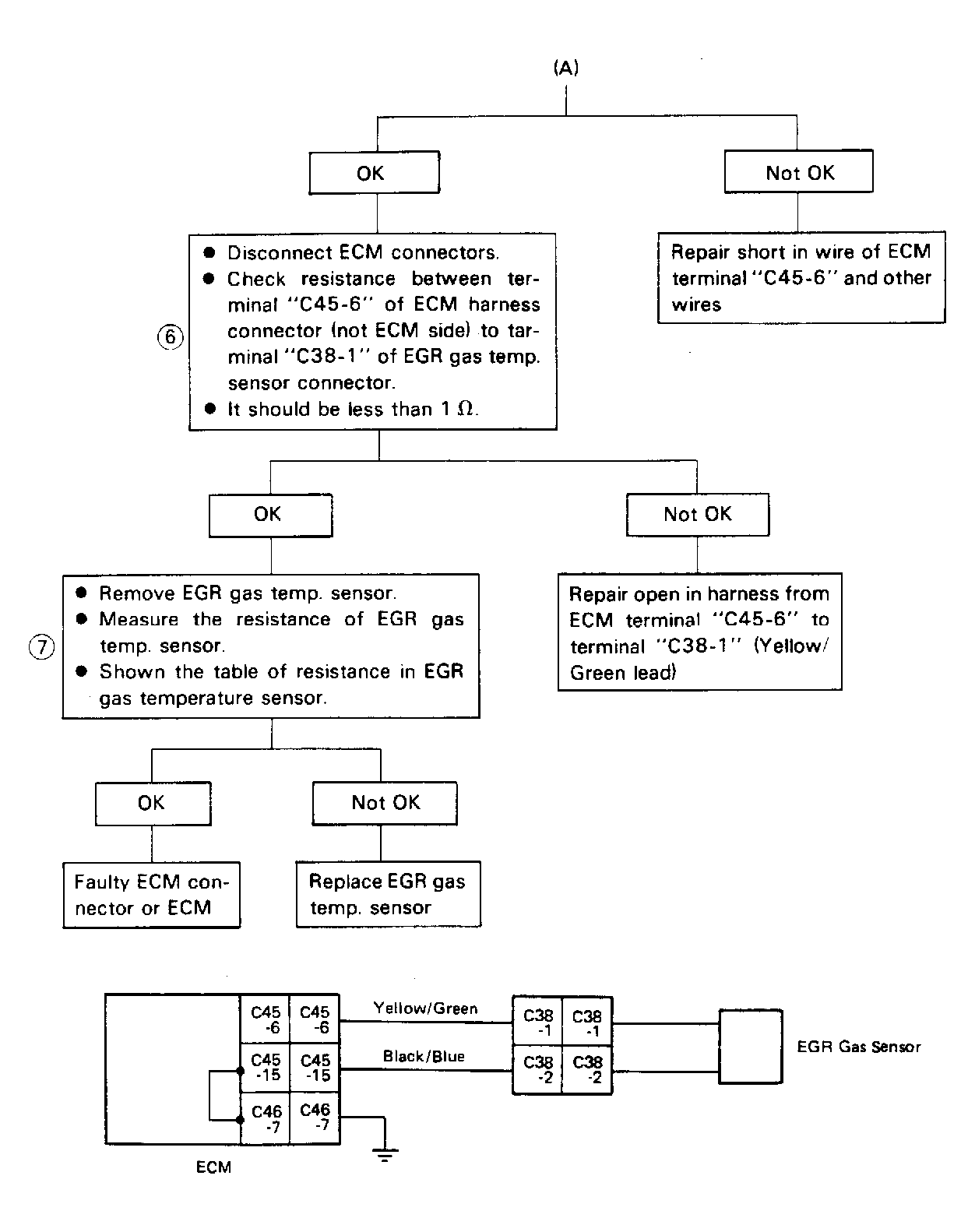

Fig 2: Flow Chart (2 of 2) - Code 34, EGR Gas Temperature Sensor (Cont.)
G122141Courtesy of ISUZU MOTOR CO.
