Code 32 - EGR System Malfunction

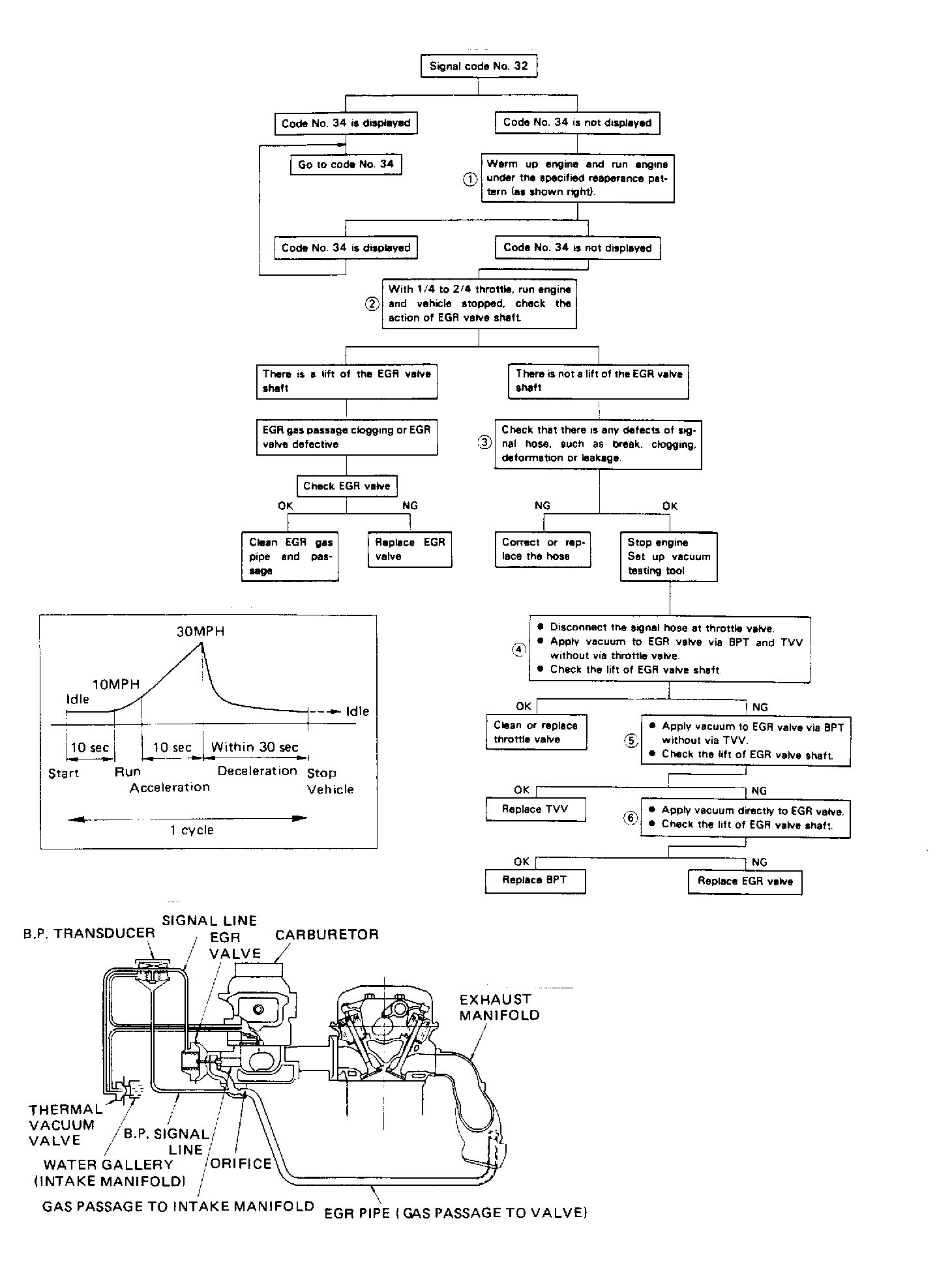

Fig 1: Flow Chart - Code 32, EGR System Malfunction

G122139

Courtesy of ISUZU MOTOR CO.
