Door Pin Switch

Check continuity between the terminal and body. See Fig 1 . If readings are not as specified, replace door pin switch. See DOOR PIN SWITCH  under REMOVAL & INSTALLATION.

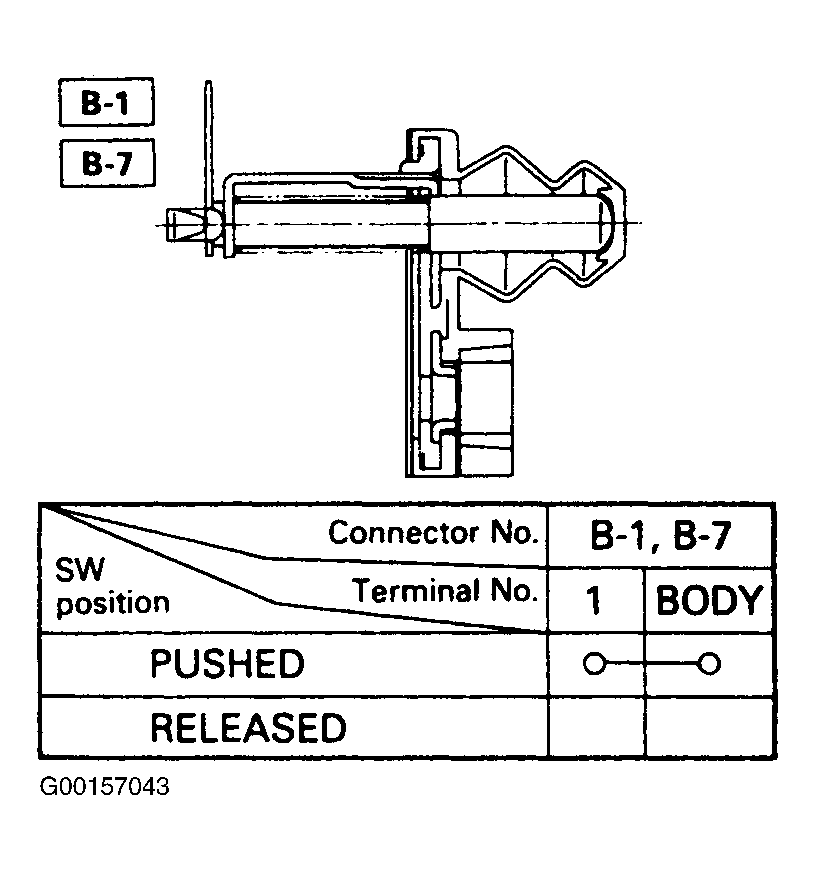

Fig 1: Testing Door Pin Switch
G00157043Courtesy of ISUZU MOTOR CO.
