Door Lock Circuit

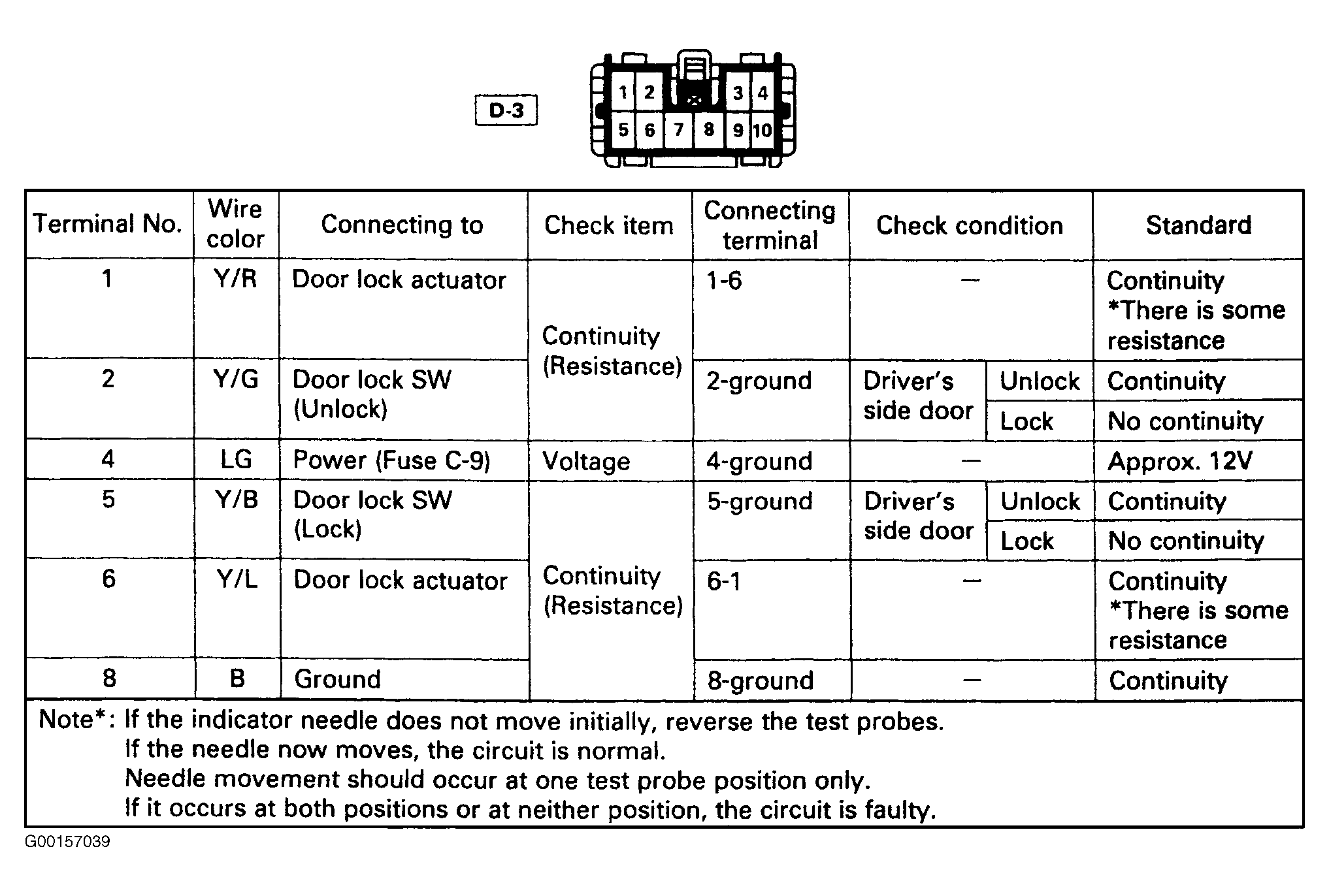

Disconnect the door lock control unit connector. Check voltage and continuity between the control unit harness side connector terminals. See Fig 1 . After performing this procedure, go to POWER DOOR LOCK OPERATING TEST under COMPONENT TESTS.
