Rear Wiper Switch: Impulse

Disconnect wiper switch connector. Using ohmmeter, check continuity between specified terminals. See Fig 1 . Replace switch if continuity does not exist at specified terminals.

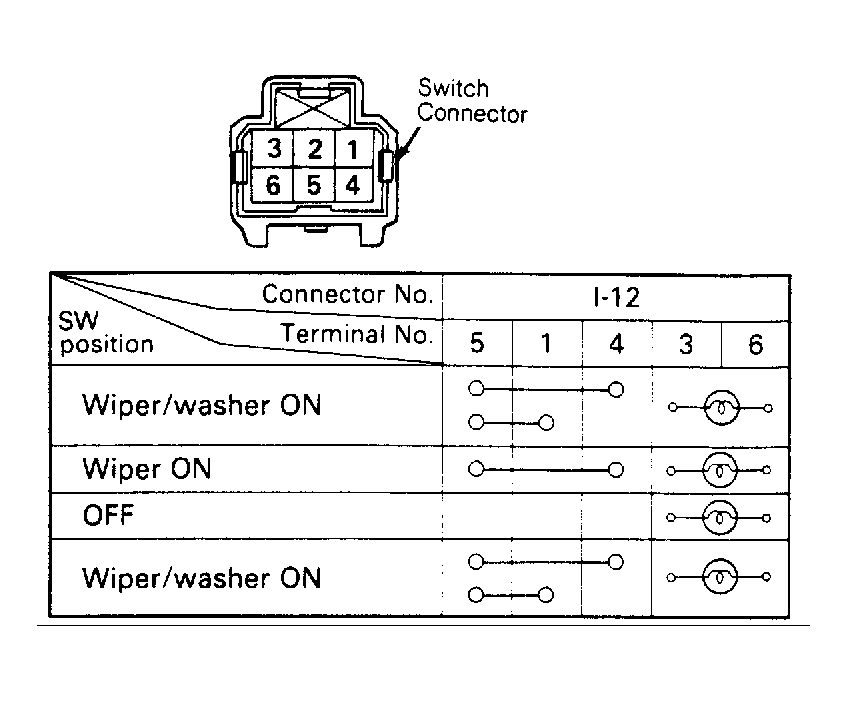

Fig 1: Checking Rear Wiper Switch (Impulse)

Courtesy of ISUZU MOTOR CO.
