Entering Self-Diagnostics: Notes
CAUTION:
DO NOT
enter self-diagnostic system until all basic engine checks (engine, fuel and spark) have been performed. See BASIC TESTING - CARBURETED
article in this section.

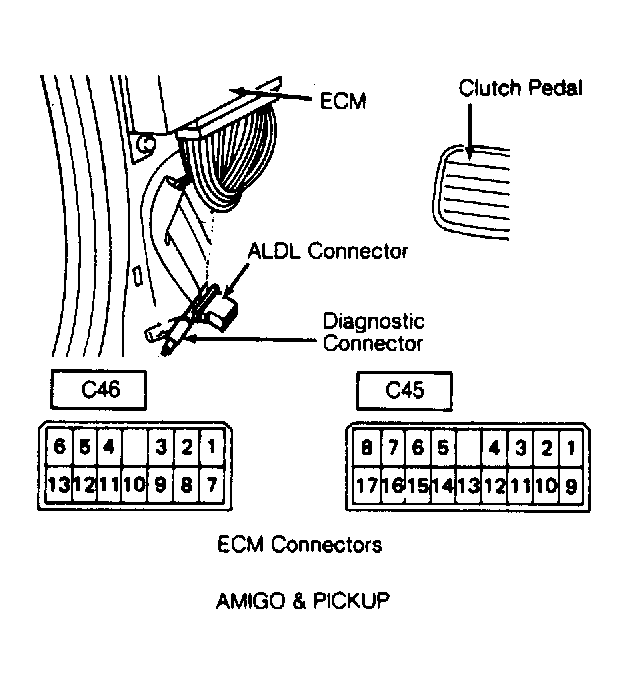

Verify "CHECK ENGINE" light circuit is operational. To enter self-diagnostics on Amigo and Pickup models, install jumper wire between White and Black wires of diagnostic connector with ignition on. See Figure .
