Home >> Isuzu >> 1989 >> Impulse 2.3 L, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Tests W/Codes >> Diagnostic Circuit Check >> Code 66 - Knock Sensor

Code 66 - Knock Sensor

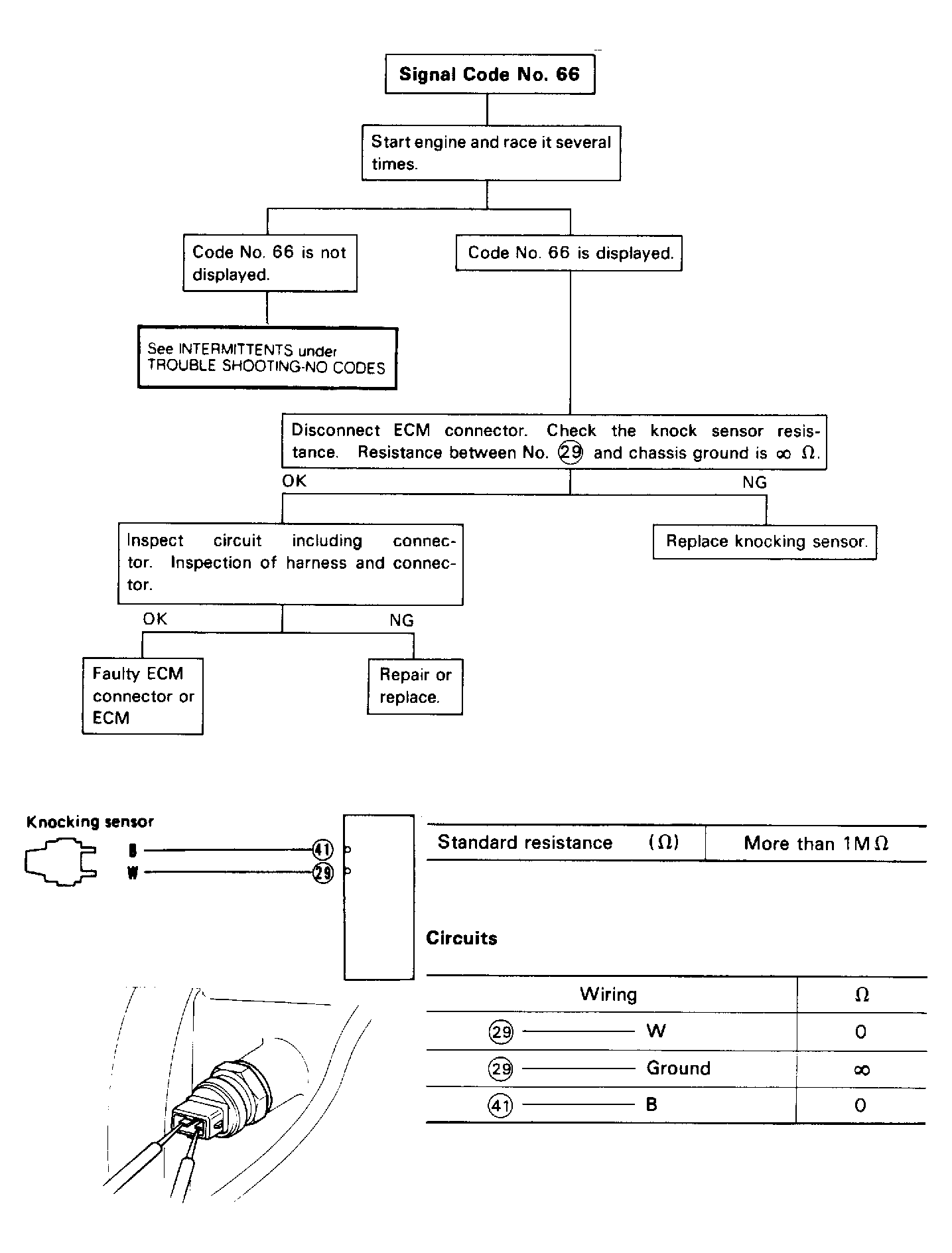

Fig 1: Flow Chart - Code 66, Knock Sensor

G122297

Courtesy of ISUZU MOTOR CO.
