Code 65 - Throttle Valve Switch

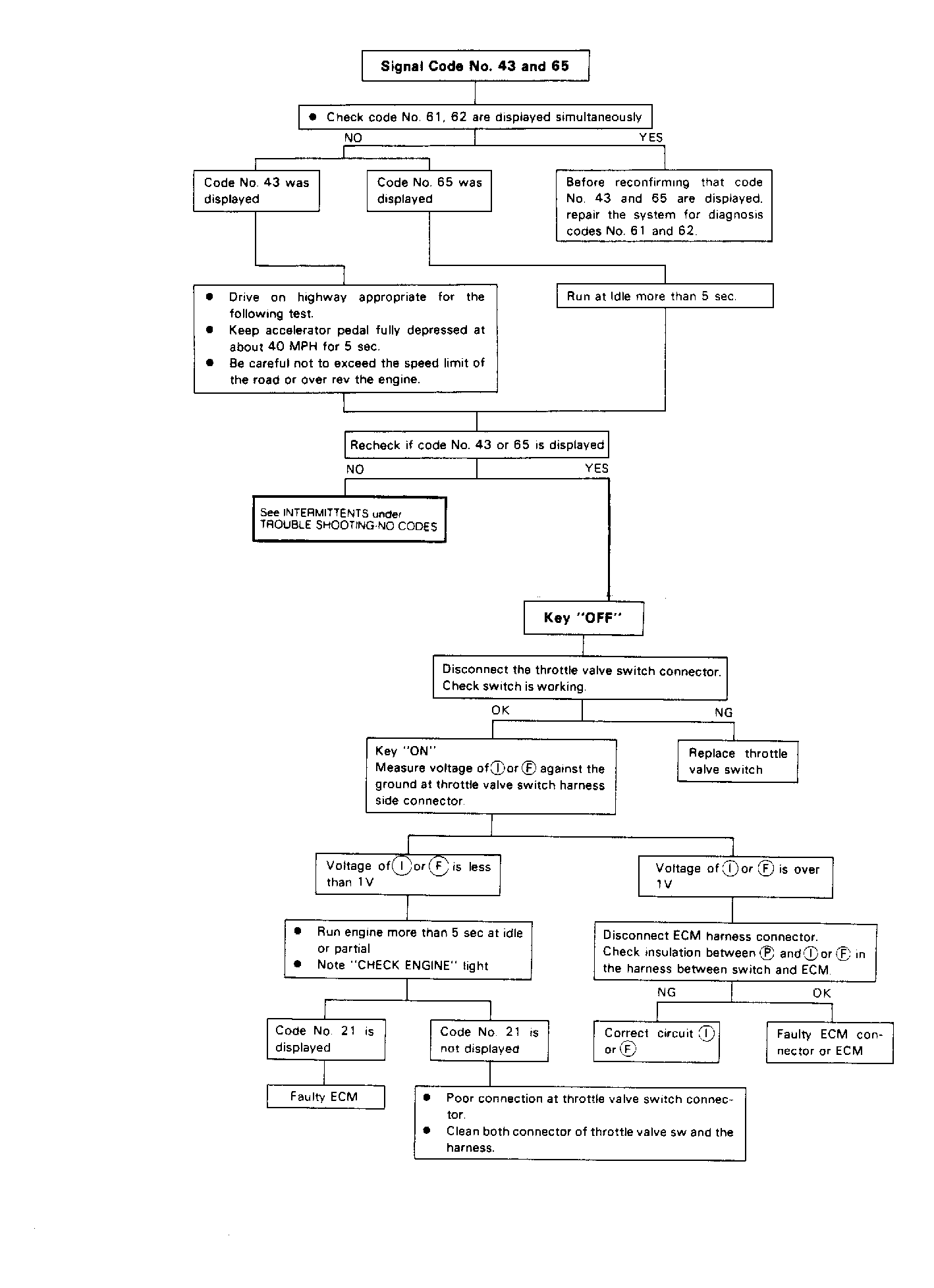

Fig 1: Flow Chart - Code 65, Throttle Valve Switch

G122286

Courtesy of ISUZU MOTOR CO.

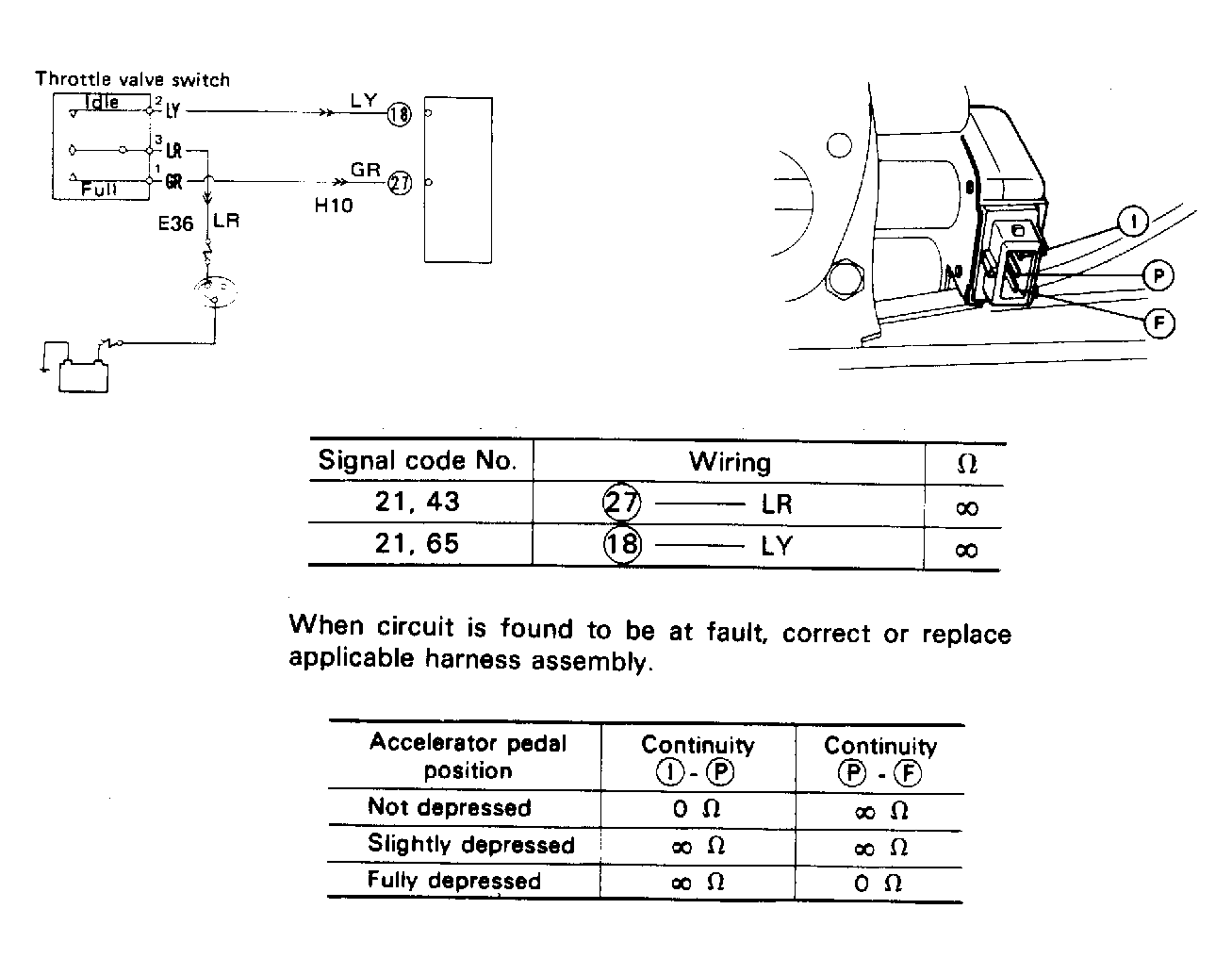

Fig 2: Throttle Valve Circuit & Connector Pin Voltages

G122285

Courtesy of ISUZU MOTOR CO.
