Code 15 - Coolant Temperature Sensor (Cts) Open

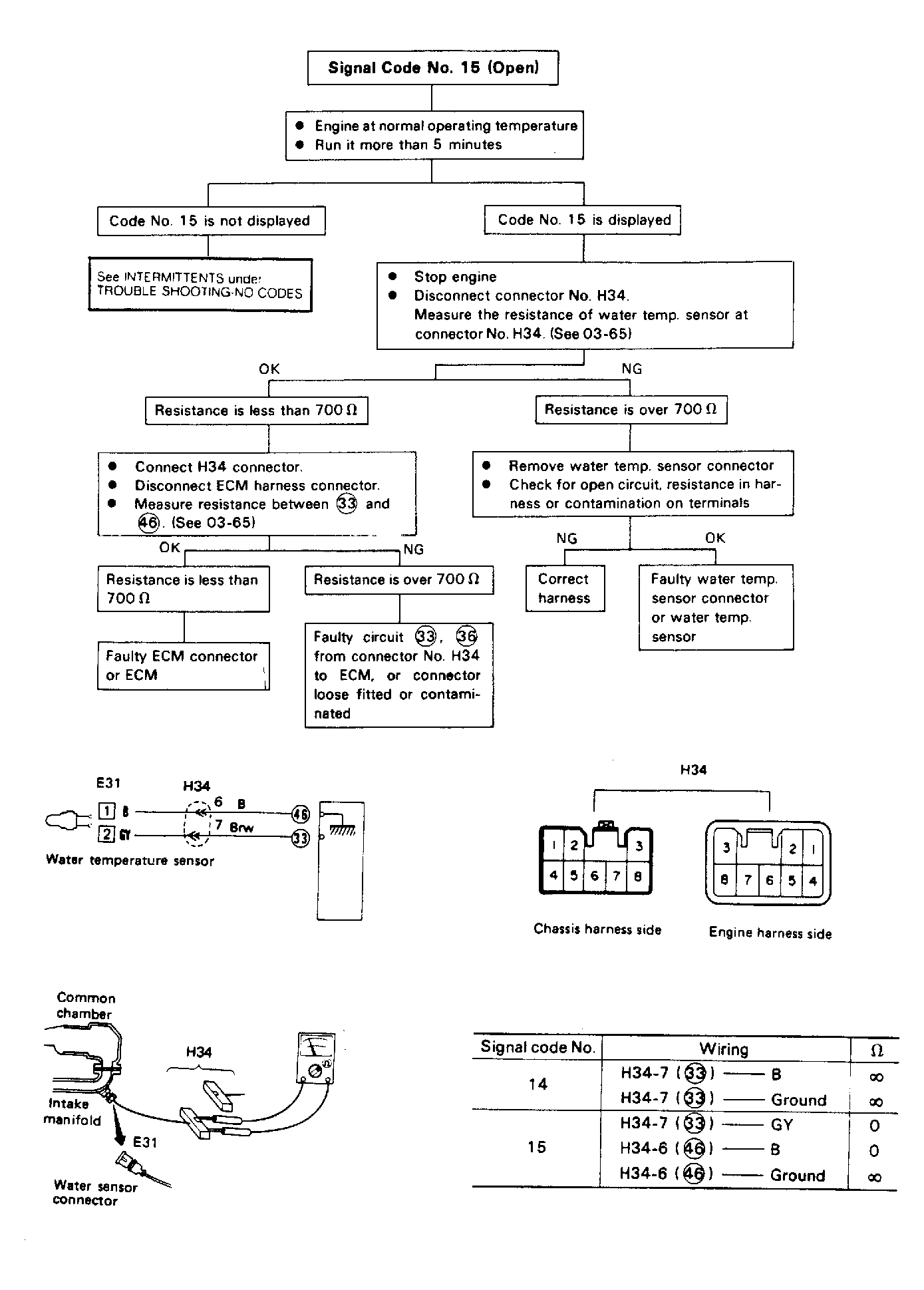

Fig 1: Flow Chart - Code 15, Coolant Temperature Sensor Open

G122270

Courtesy of ISUZU MOTOR CO.
