Code 14 - Coolant Temperature Sensor (Cts) Shorted

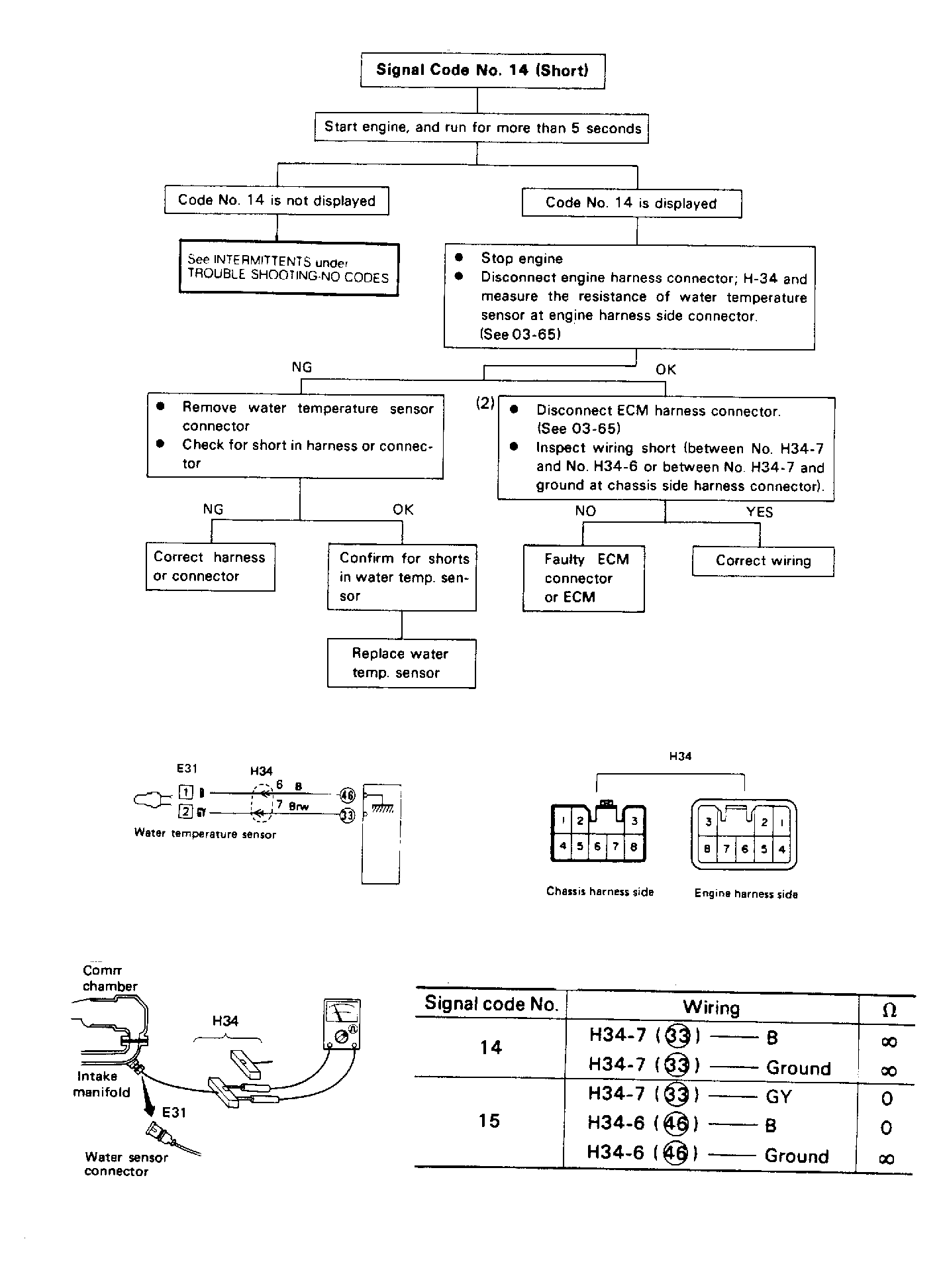

Fig 1: Flow Chart - Code 14, Coolant Temperature Sensor Shorted

G122269

Courtesy of ISUZU MOTOR CO.
