Code 64 - Fuel Injector Circuit (ECM Transistor)

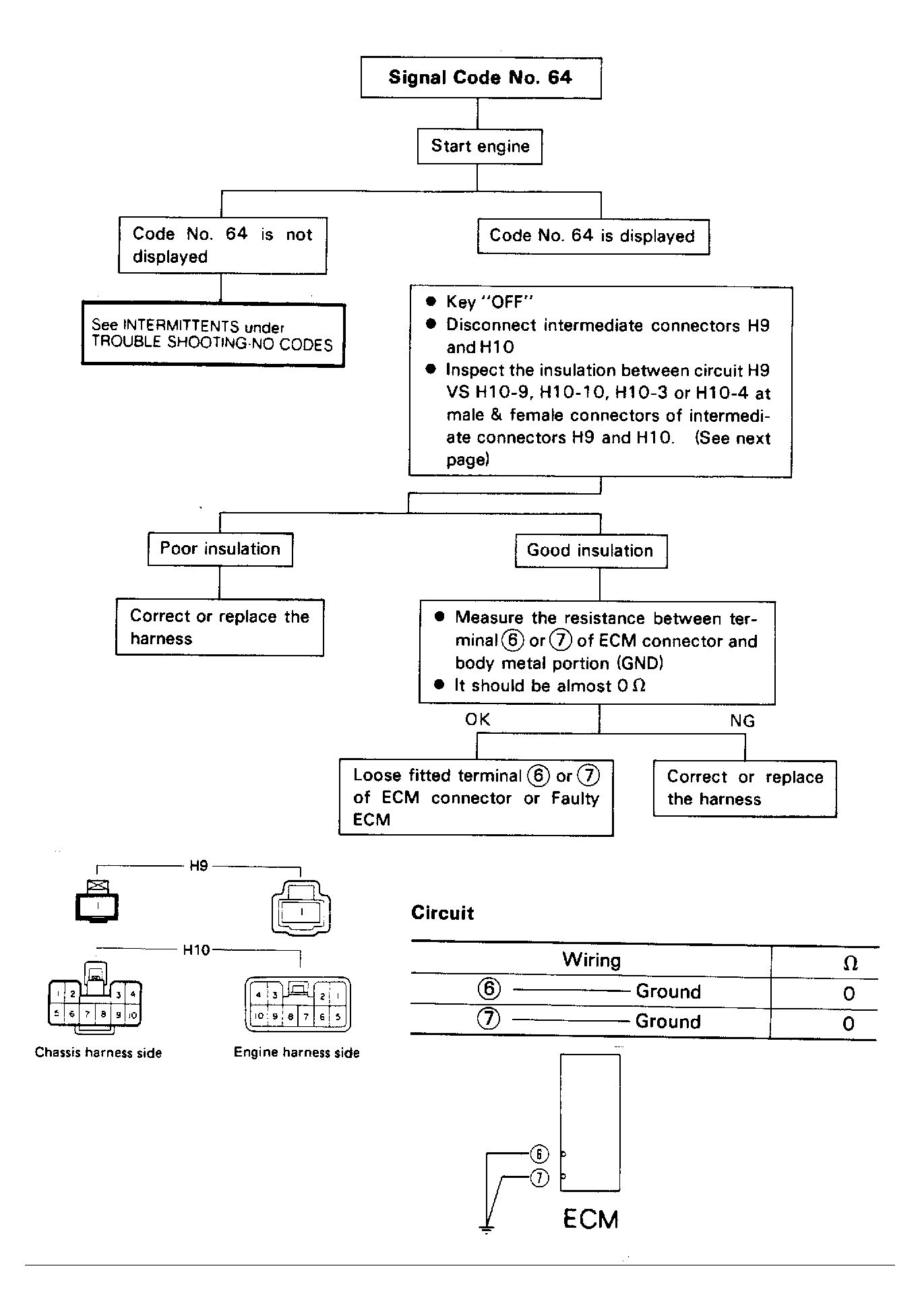

Fig 1: Flow Chart - Code 64, Fuel Injector Circuit (ECM Transistor)

Courtesy of ISUZU MOTOR CO.

Fig 2: Location Of Test Connector "H14"

Courtesy of ISUZU MOTOR CO.
