Fuel Metering Lean Fault Inspection Procedure

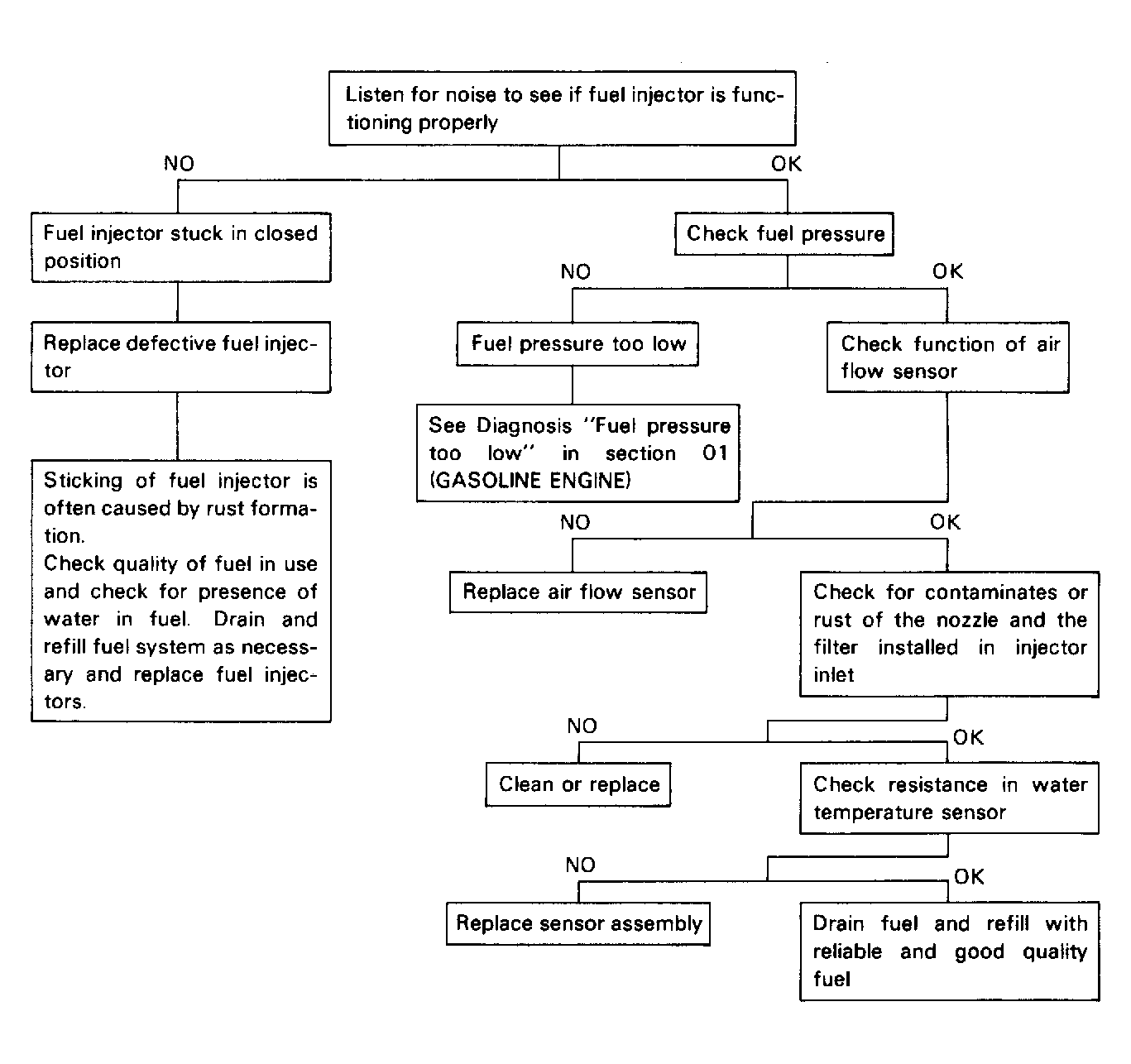

Fig 1: Flow Chart - Fuel Metering Lean Faulty Inspection Procedure

G122289

Courtesy of ISUZU MOTOR CO.
