Code 63 - Vehicle Speed Sensor (VSS) Signal

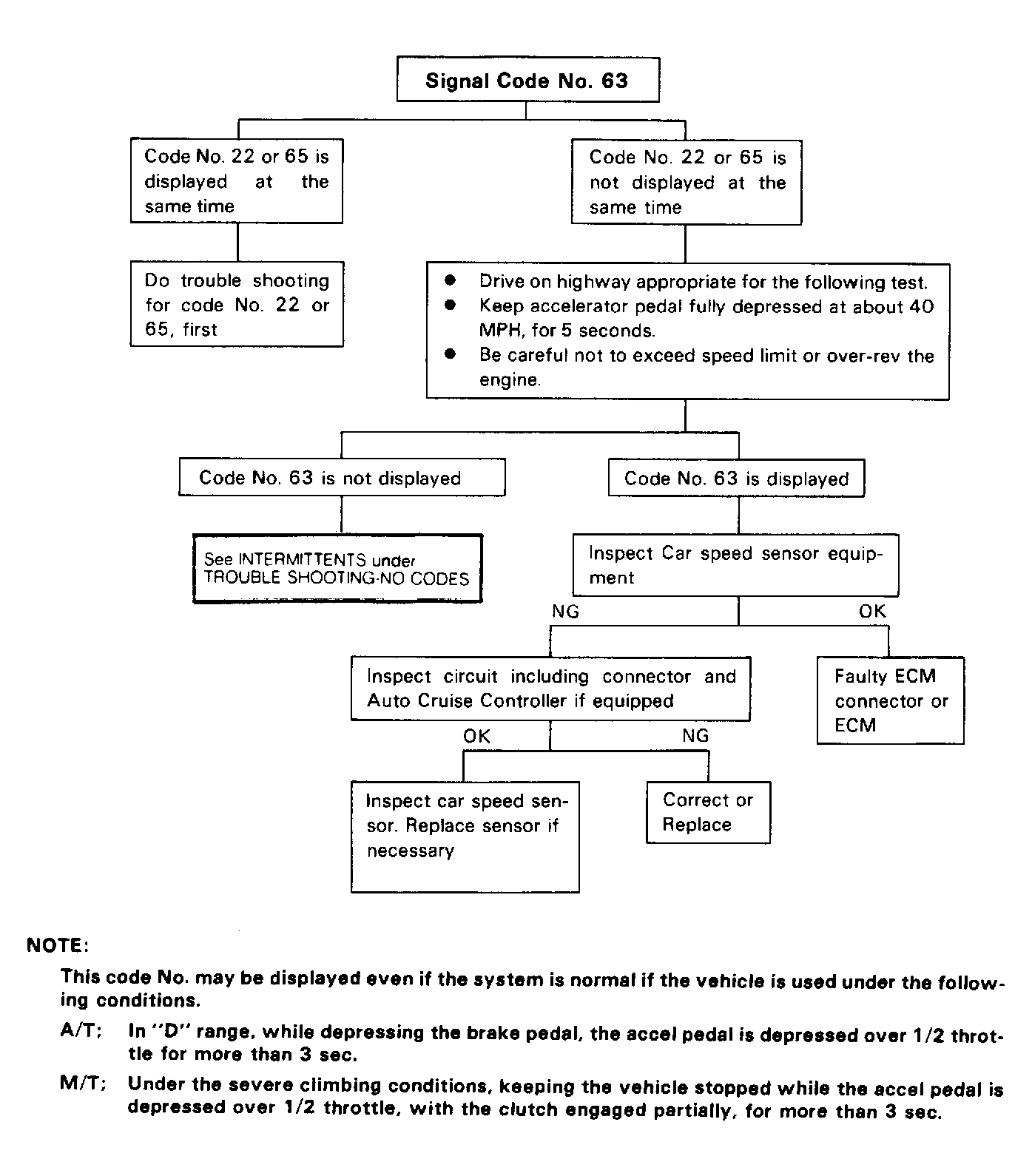

Fig 1: Flow Chart - Code 63, Vehicle Speed Sensor Circuit

G122294

Courtesy of ISUZU MOTOR CO.

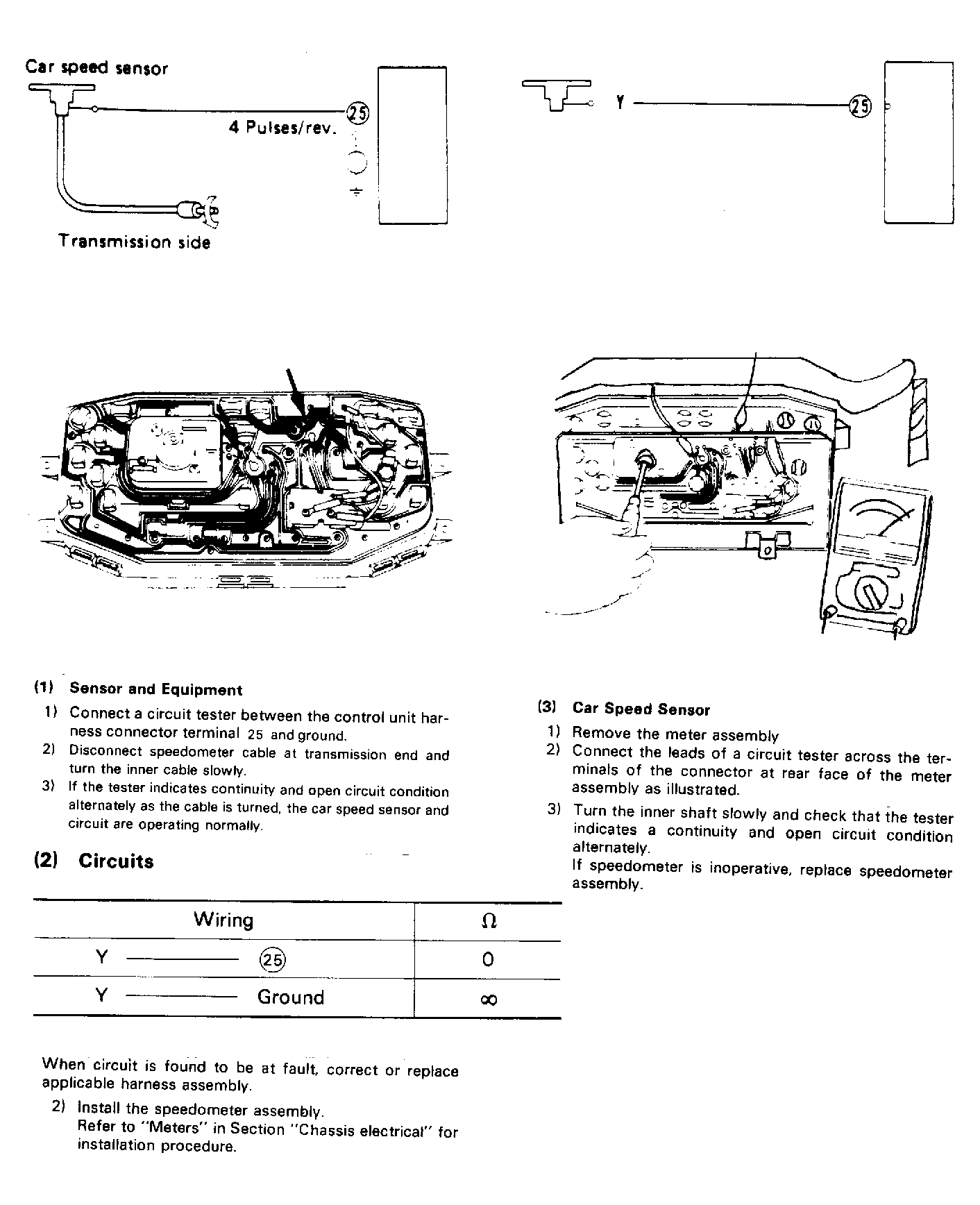

Fig 2: Testing Vehicle Speed Sensor Circuit

G122293

Courtesy of ISUZU MOTOR CO.
