Control Units

CONTROL UNITS LOCATION

Component Location
Cruise Control Module On steering column bracket. See Figure .

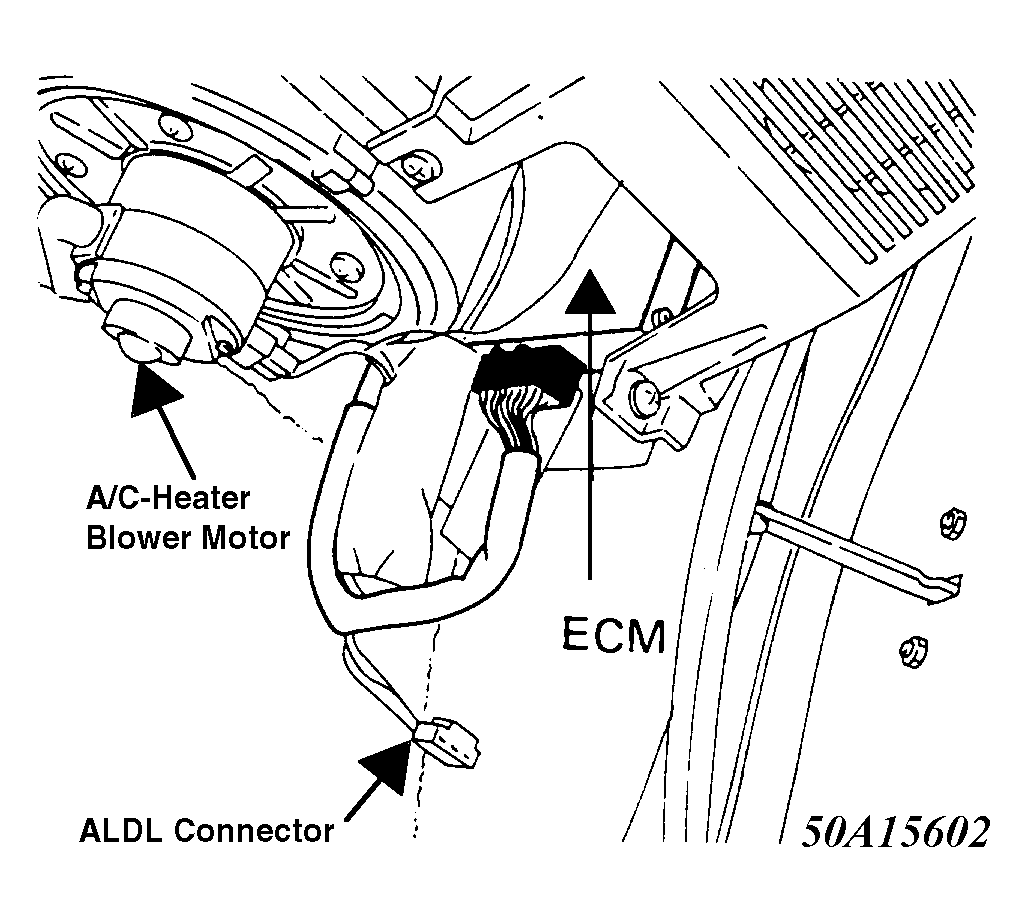

Electronic Control Module (ECM) On right side of dash, on passenger's kick panel. See Figure .
