Diagnostic Circuit Check: Notes

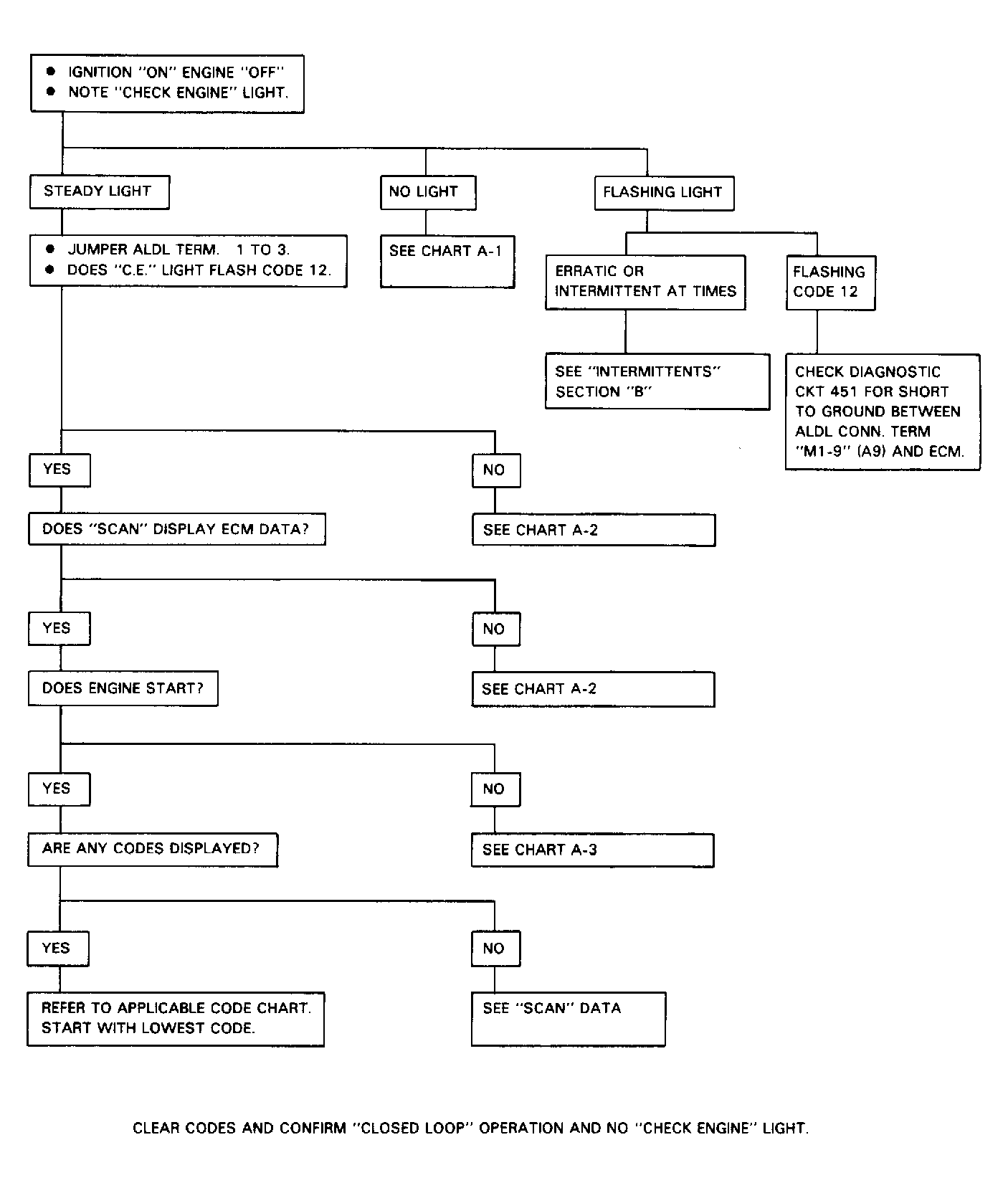

Fig 1: Flow Chart - Diagnostic Circuit Check
G122190Courtesy of ISUZU MOTOR CO.

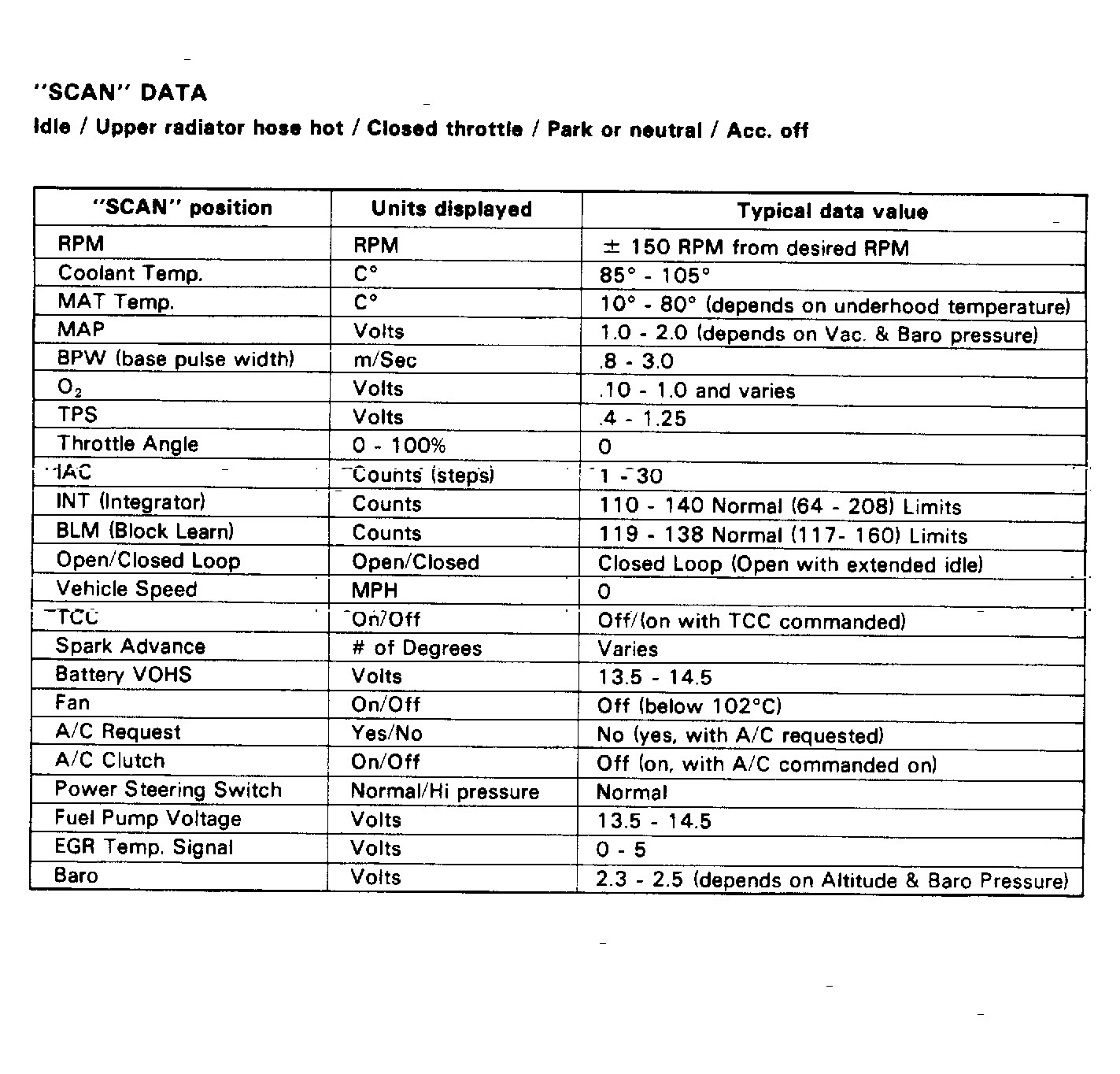

Fig 2: "SCAN" Data Table
G122188Courtesy of ISUZU MOTOR CO.

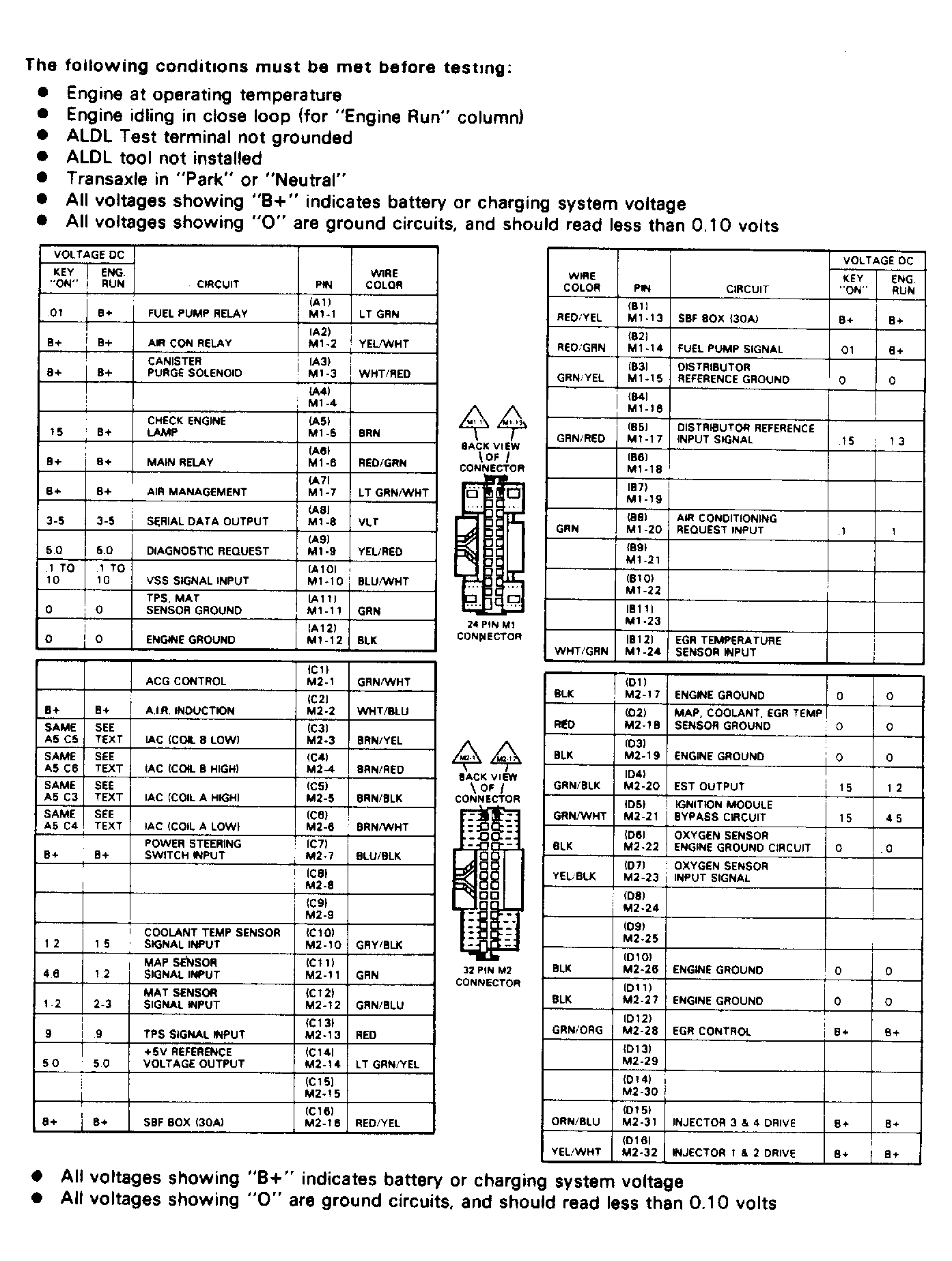

Fig 3: ECU Terminal Identification
G122189Courtesy of ISUZU MOTOR CO.
