Isuzu
>>
1989
>>
I-Mark RS, 2D Hatchback
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Tests W/Codes - CARBURETED
>>
Trouble Code Charts
>>
Test 2 - No Code 12
Test 2 - No Code 12

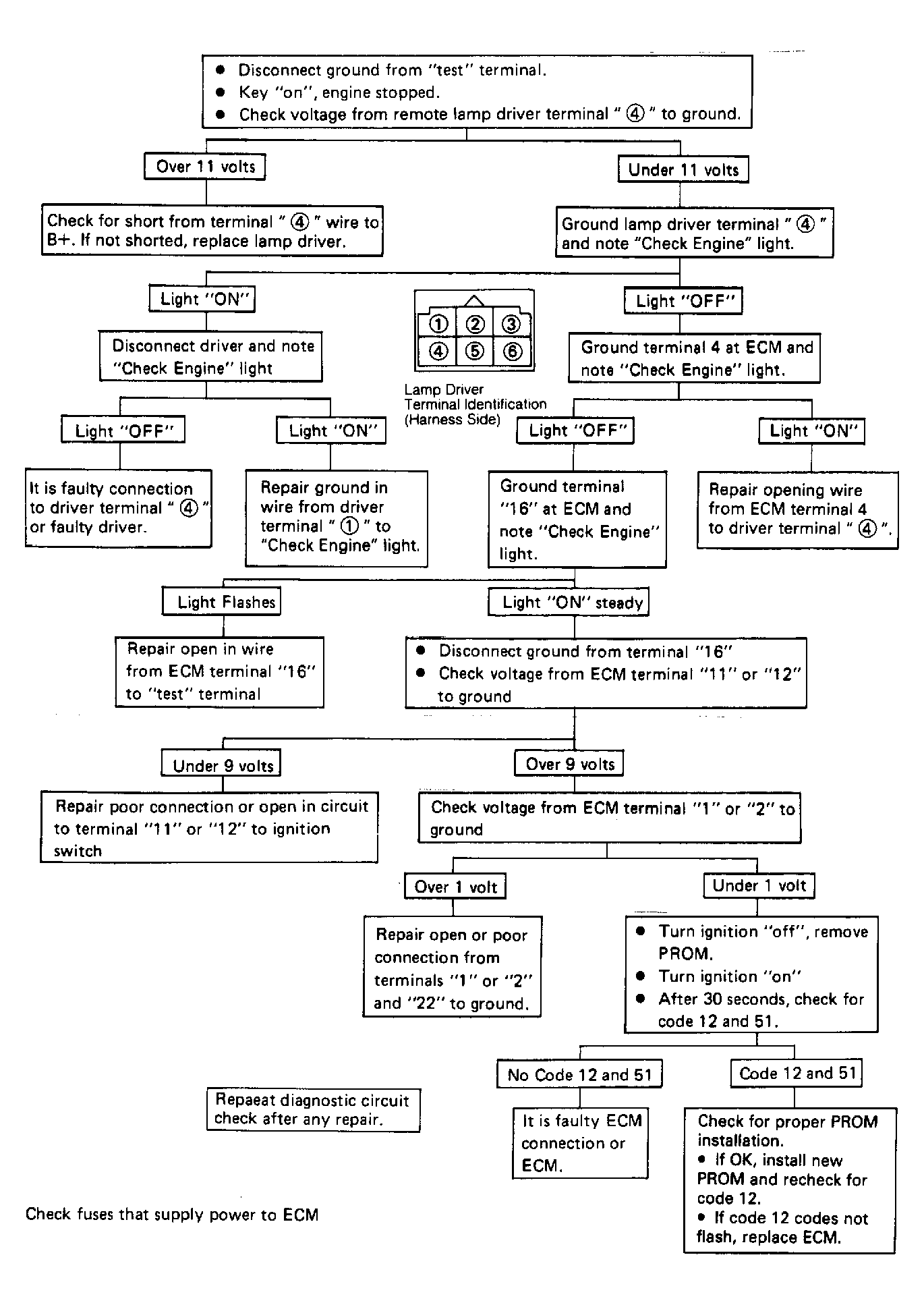

Fig 1: Flow Chart - Test 2, Will Not Flash Code 12
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
