Diagnostic Aids

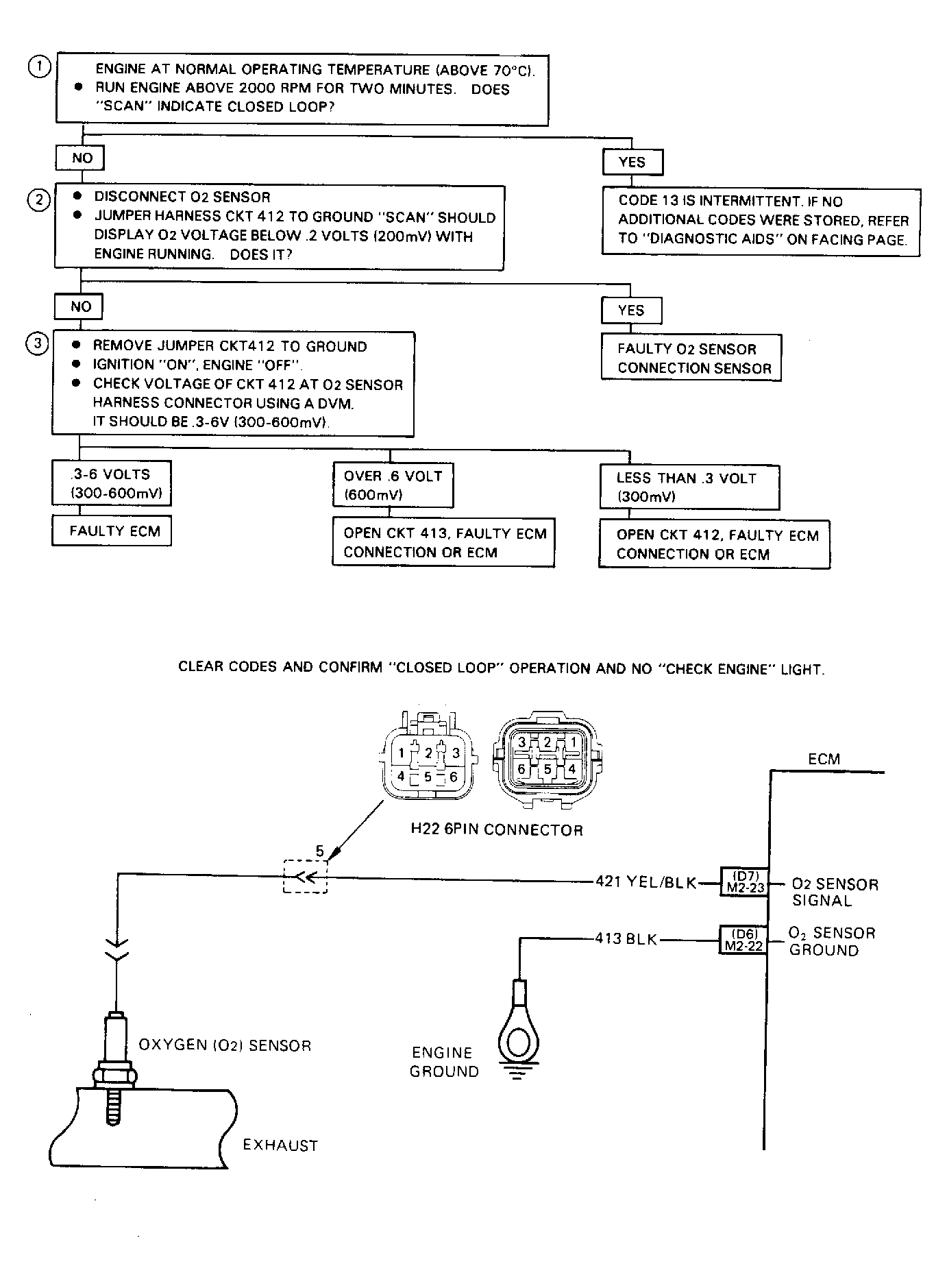

Normal "Scan" voltage varies between .1-1.0 volts (100-999 mV) while in "closed loop". Code 13 sets in 5 seconds, if voltage remains between .42-.55 volts, system will go into "open loop" in about 15 seconds. Verify proper ground for circuit No. 413. Open circuits No. 412 or 413 will result in a Code 13. For intermittent inspection, see INTERMITTENTS under TESTS W/O CODES - EFI article.
