Diagnostic Circuit Check

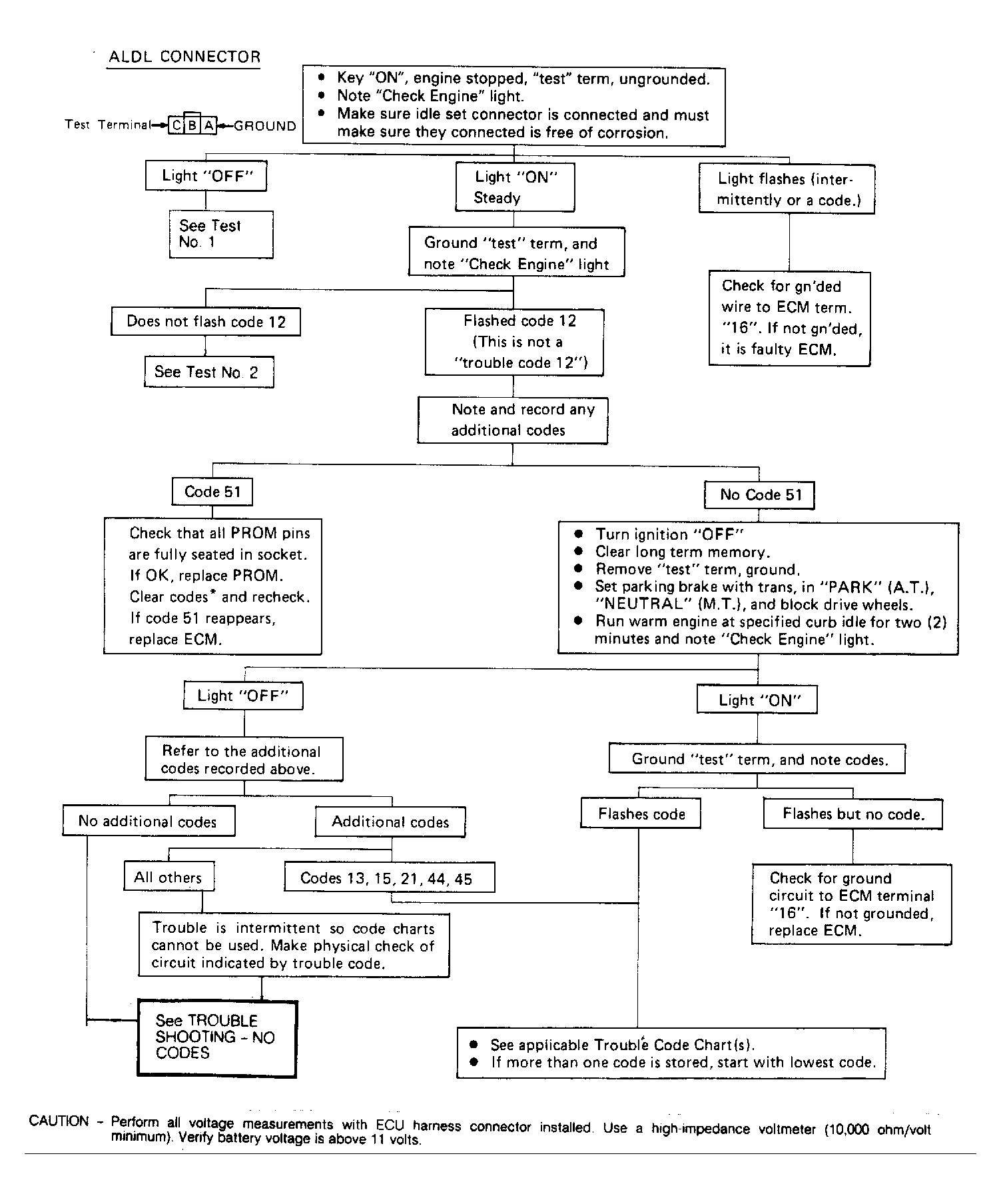

Fig 1: Diagnostic Circuit Check Flow Chart

G122146

Courtesy of ISUZU MOTOR CO.

Fig 2: ECU Terminal Identification

G122147

Courtesy of ISUZU MOTOR CO.
