Code 53 - Defective Air Induction System VSV

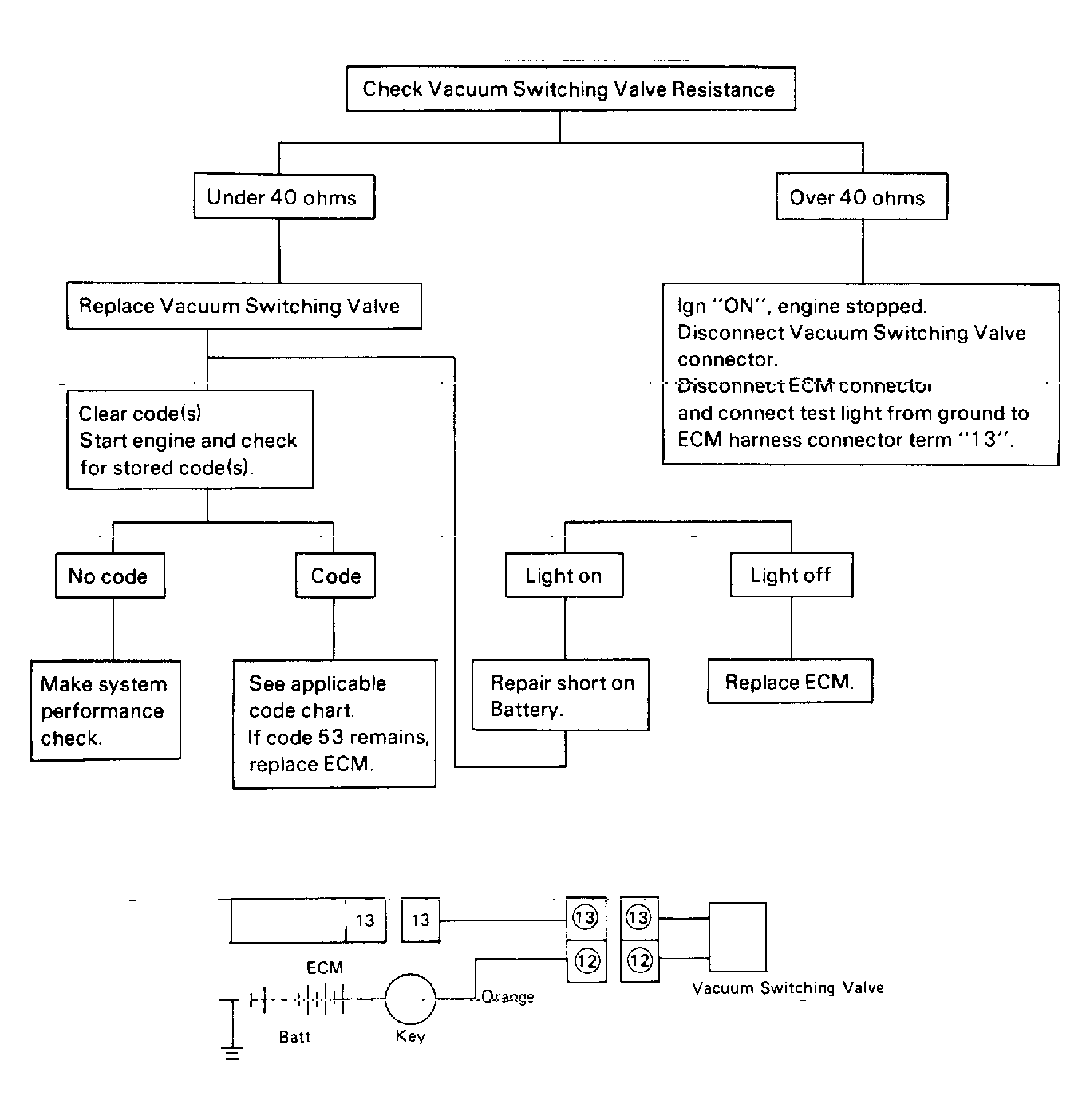

Fig 1: Flow Chart - Code 53, Defective Air Induction System VSV

G122164

Courtesy of ISUZU MOTOR CO.
