Home >> Isuzu >> 1989 >> I-Mark LS >> Repair and Diagnosis >> Engine Performance >> System >> Tests W/Codes - CARBURETED >> Trouble Code Charts >> Code 15 - Open Coolant Temperature Sensor (Cts) Signal

Code 15 - Open Coolant Temperature Sensor (Cts) Signal

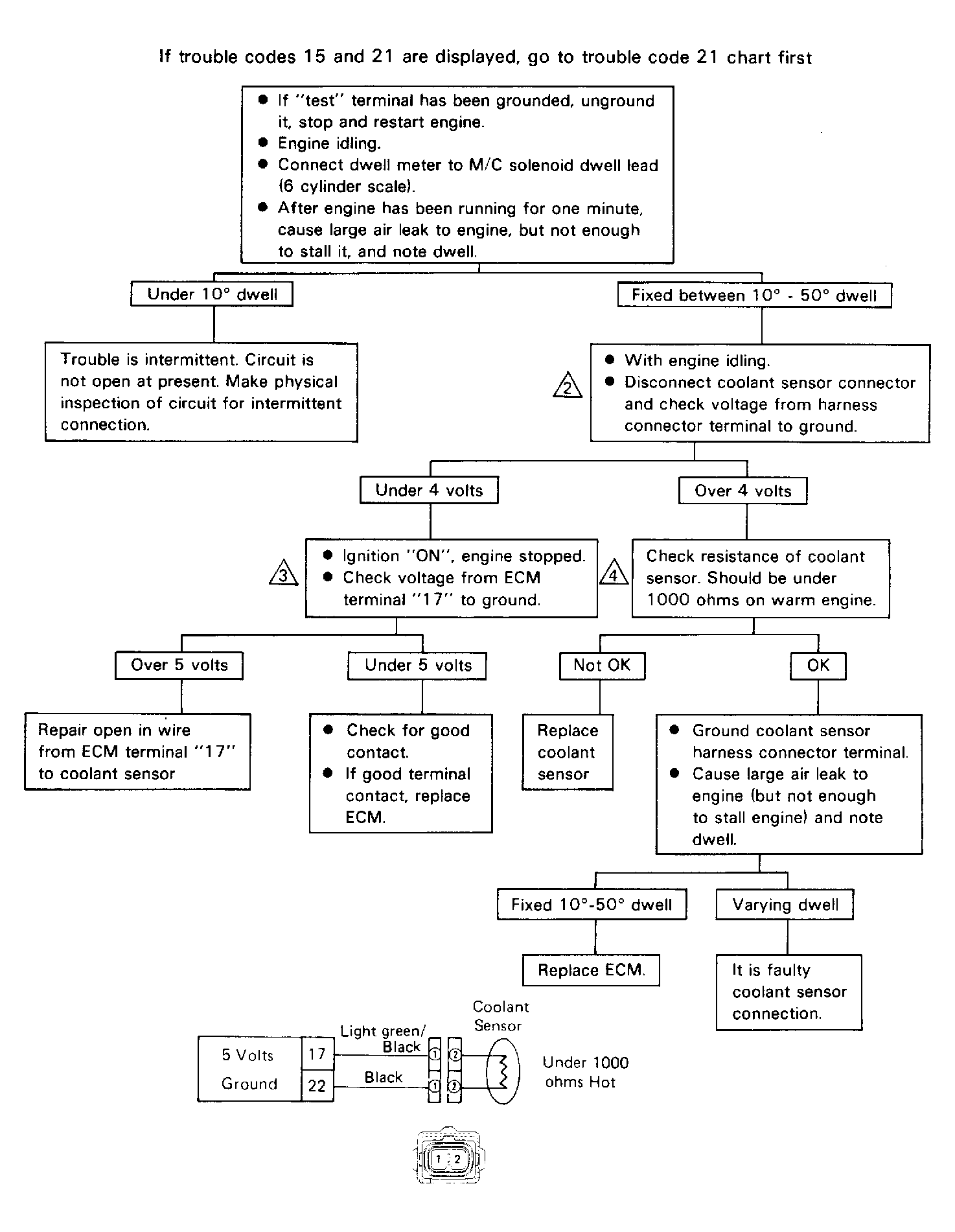

Fig 1: Flow Chart - Code 15, Open Coolant Temperature Sensor Signal

G122155

Courtesy of ISUZU MOTOR CO.
