Code 14 - Shorted Coolant Temperature Sensor (Cts) Signal

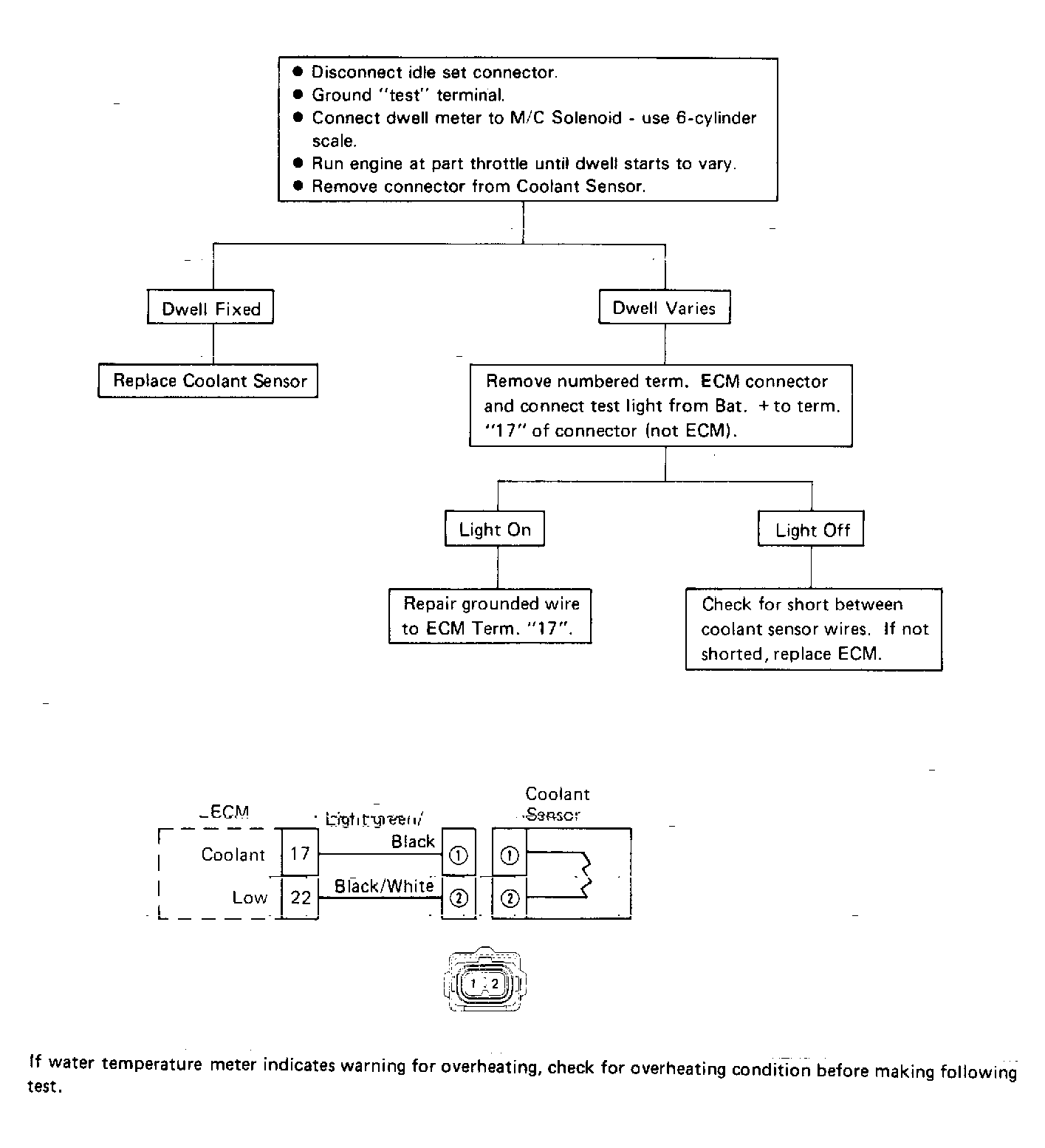

Fig 1: Flow Chart - Code 14, Shorted Coolant Temperature Sensor Signal

G122154

Courtesy of ISUZU MOTOR CO.
