Remove, Install & Overhaul: Turbocharger

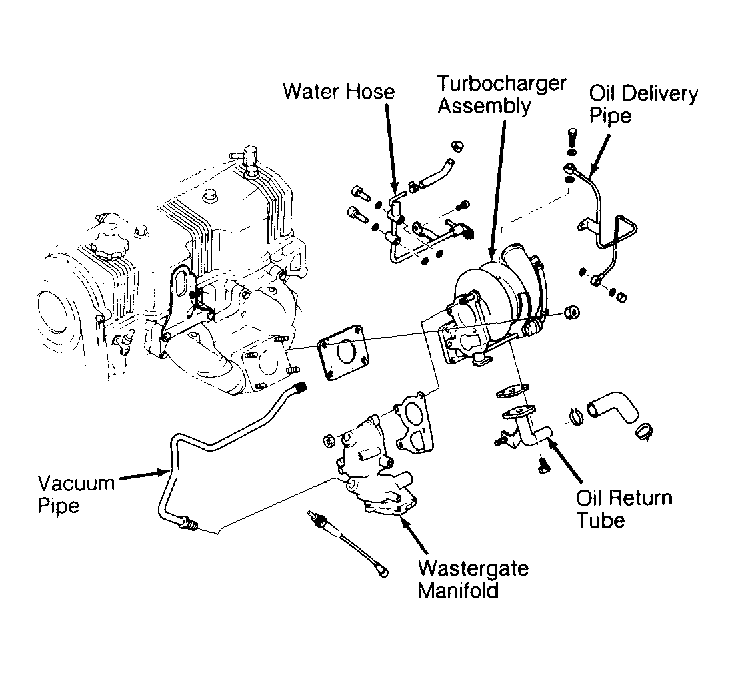

Procedure not available from manufacturer. See Fig 1 and I-MARK TURBO TORQUE SPECIFICATIONS table.
I-MARK TURBO TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) |
|---|---|
| Exhaust Manifold-to-Head Bolt | 21 (28) |
| Oil Delivery Pipe Bolt | 18 (25) |
| Oil Delivery Pipe Nut | 28 (29) |
| Turbo-to-Exhaust Manifold Nut | 21 (28) |
| Turbo-to-Wastegate Manifold Nut | 21 (28) |
| Wastegate Manifold-to-Front Pipe Nut | 28 (38) |
| Water Hose-to-Turbo Bolt | 25 (33) |
| INCH Lbs. (N.m) | |
| Heat Shield Nut | 86 (10) |
| Oil Return Tube-to-Turbo Bolt | 70 (8) |
