Removal & Installation

Align timing marks on TDC of compression stroke. Remove high-tension wires and distributor connector. Remove mounting bolt and distributor. Note direction rotor points for reference. To install, reverse removal procedure. Set timing. To align distributor reference marks on I-Mark, See Fig 1 .

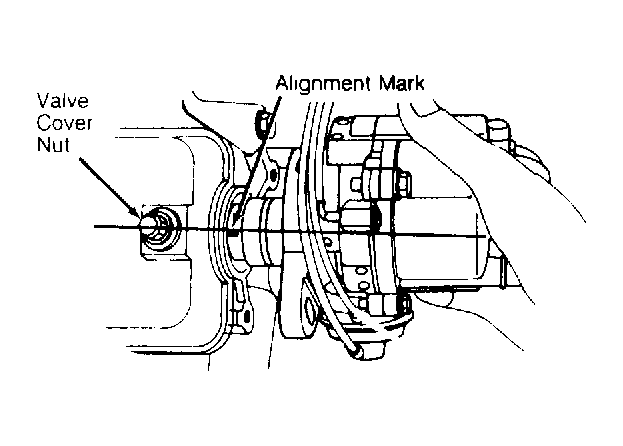

Fig 1: Installing Distributor (I-Mark)

Courtesy of ISUZU MOTOR CO.

Rebuild procedure for distributors is not supplied by manufacturer.

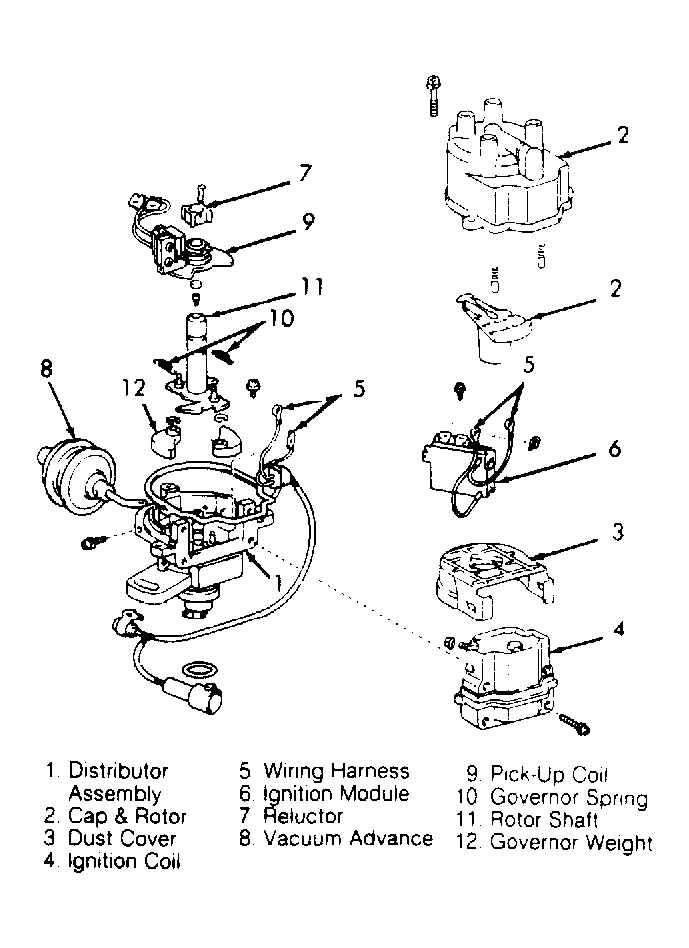

Fig 2: Exploded View of I-Mark (4XC1) Distributor

Courtesy of ISUZU MOTOR CO.

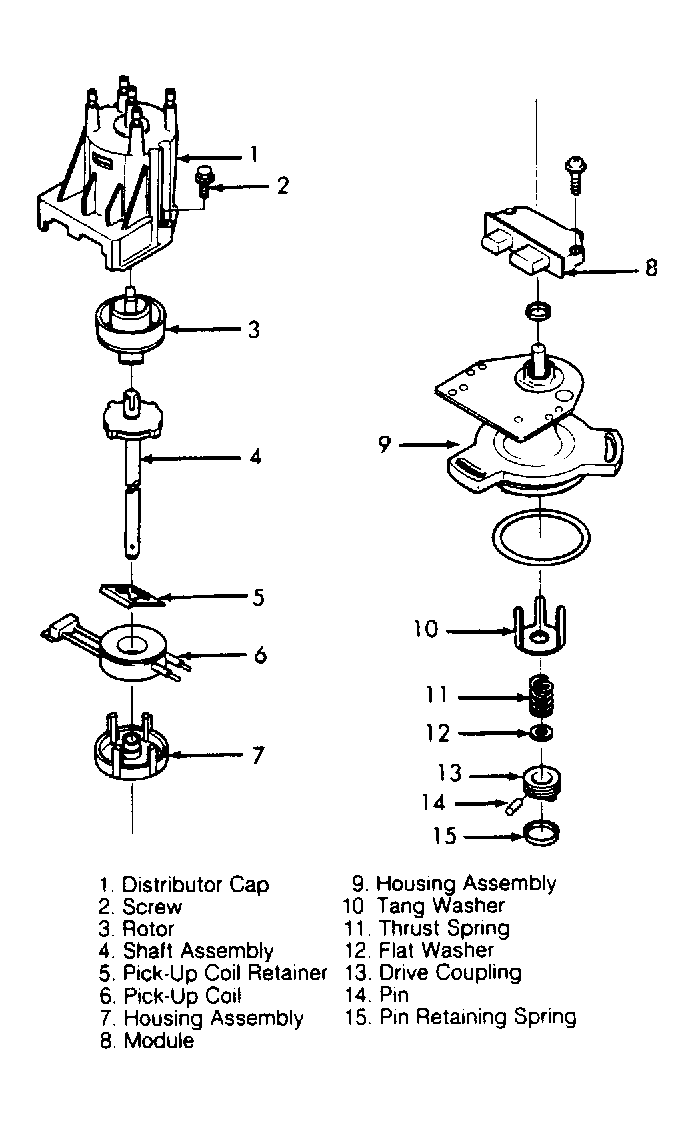

Fig 3: Exploded View of I-Mark Turbo & DOHC Distributor
