Float Level

Invert air horn and allow float to hang. Measure clearance between top of float and air horn gasket. See Fig 1 . If clearance is not within specification, bend float seat. For float level specification, see I-MARK CARBURETOR ADJUSTMENT SPECIFICATIONS table in this article.

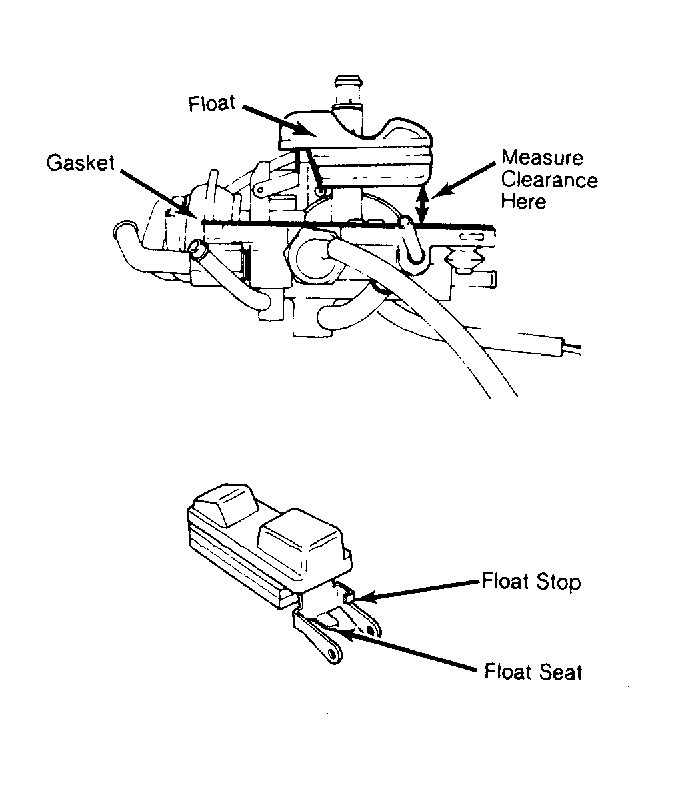

Fig 1: Adjusting Float Level (I-Mark)

Courtesy of ISUZU MOTOR CO.
