Ecu Code 64 - Fuel Injector Transistor

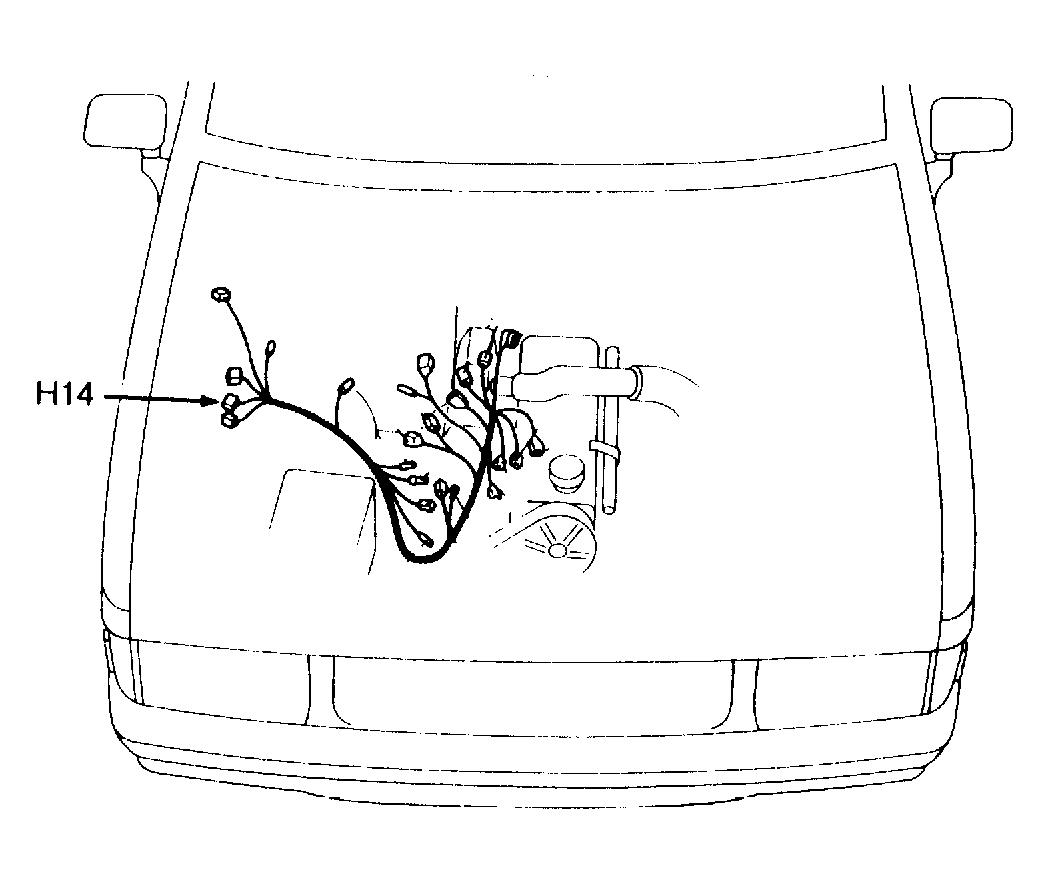

- Turn ignition key OFF. Check insulation and contact at terminals of intermediate engine harness connector H14. See Fig 1

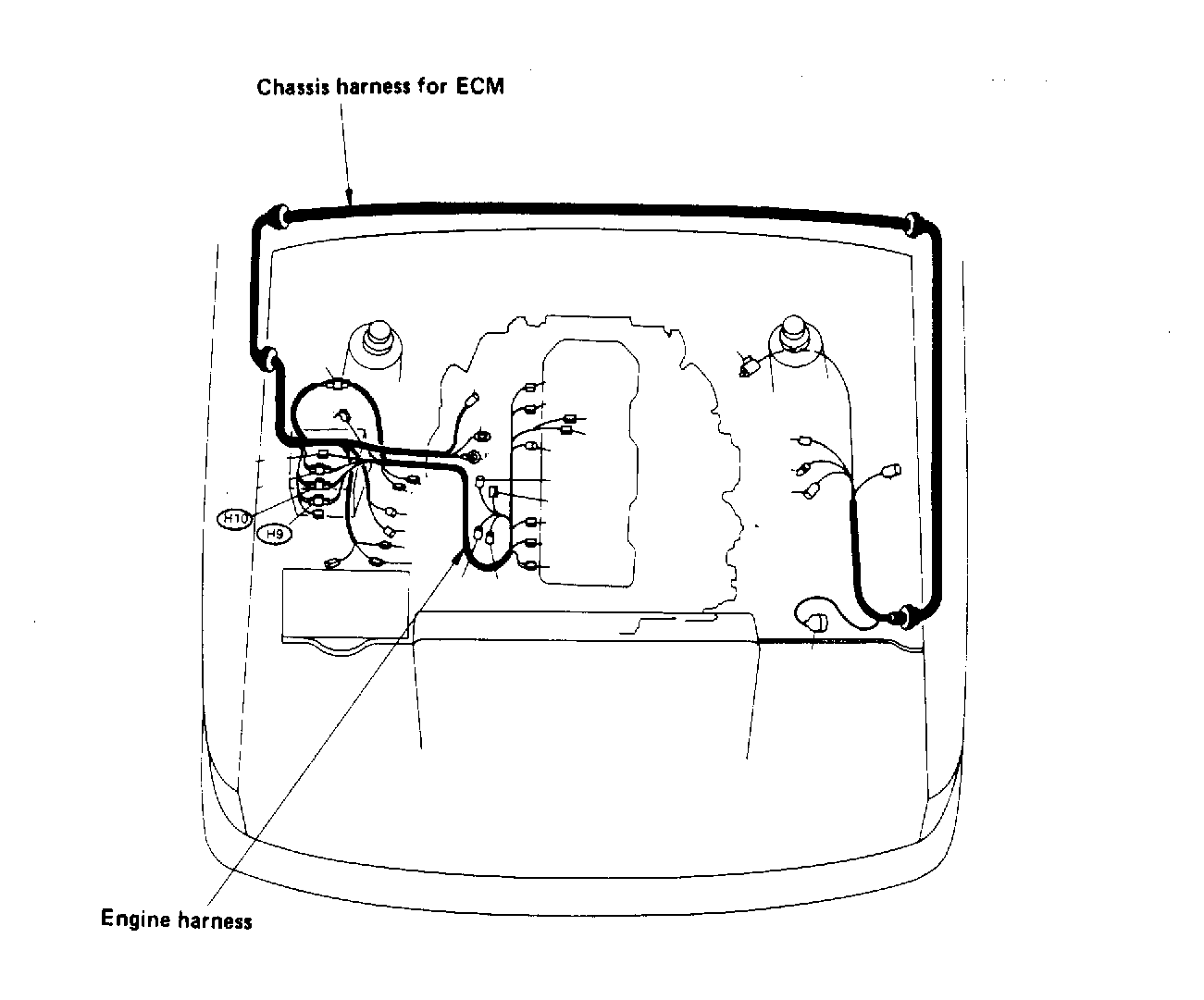

and Fig 2
. If connector terminals and wiring are okay, go to step 2). If connector terminals and wiring damaged or worn, repair or replace as necessary.
- Disconnect ECM 10-pin connector and check resistance from terminals 6 and 7 to ground (1 and 2 on Pickup and Trooper). Resistance should be nearly 0 ohms. If resistance is not as specified, repair affected circuit from ECM. If resistance is as specified, check for loose fitting terminals in ECM connector. If terminals are okay, replace ECM.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
