Alternator - NIPPONDENSO: Testing: Notes

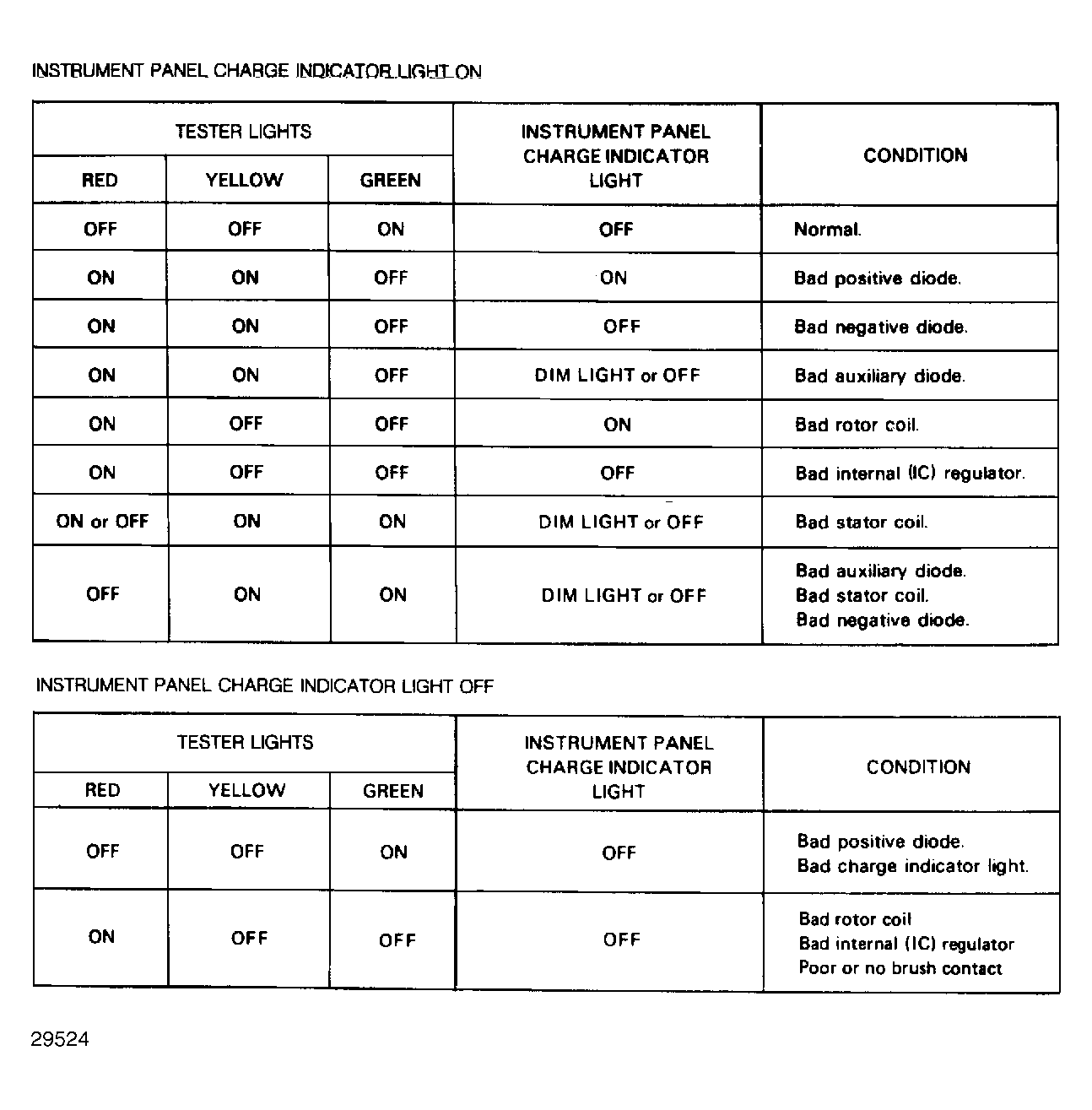

Fig 1: Alternator Tester Diagnostic Charts

G29524

Courtesy of ISUZU MOTOR CO.
