Ignition System - NIPPONDENSO: Overhaul

Fig 1: Exploded View of Distributor

G94276

Courtesy of ISUZU MOTOR CO.

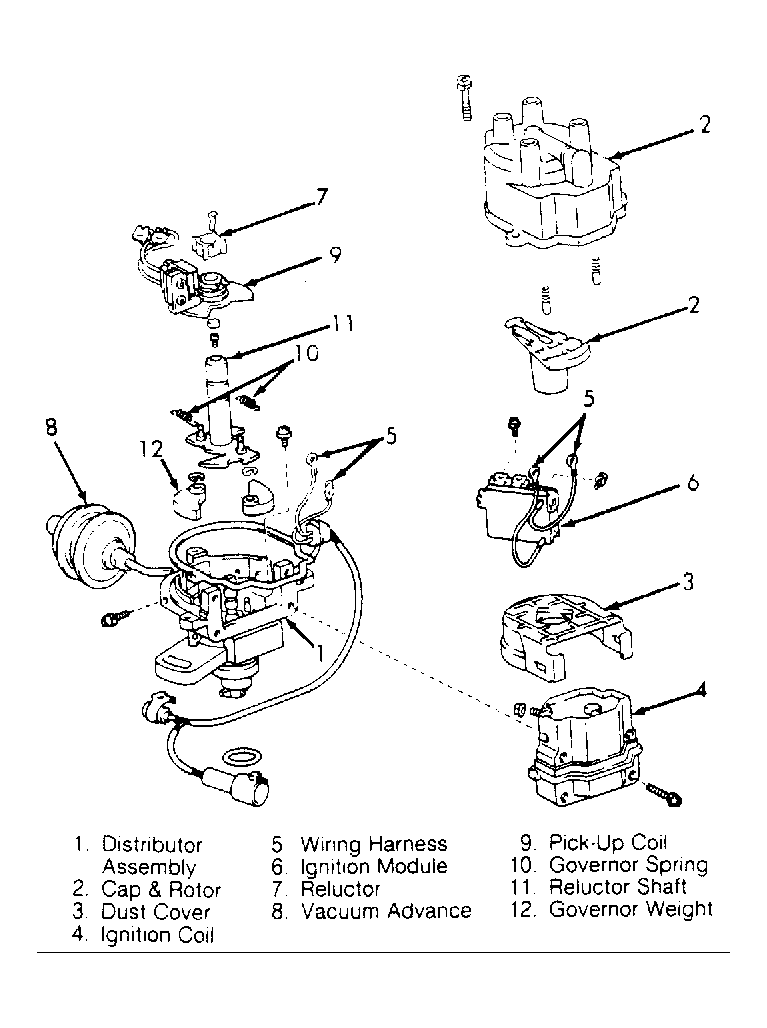

Fig 2: Exploded View of I-Mark Distributor

G94278

Courtesy of GENERAL MOTORS CORP.
