Servicing - M/T: Adjustments: Linkage: I-Mark

Place transaxle and gearshift lever in Neutral. Loosen adjustment nuts. See Fig 1 . Working with one cable at a time, turn adjustment nuts until shift lever is in vertical position as viewed from side and rear. Tighten adjustment nuts. See Fig 1 .

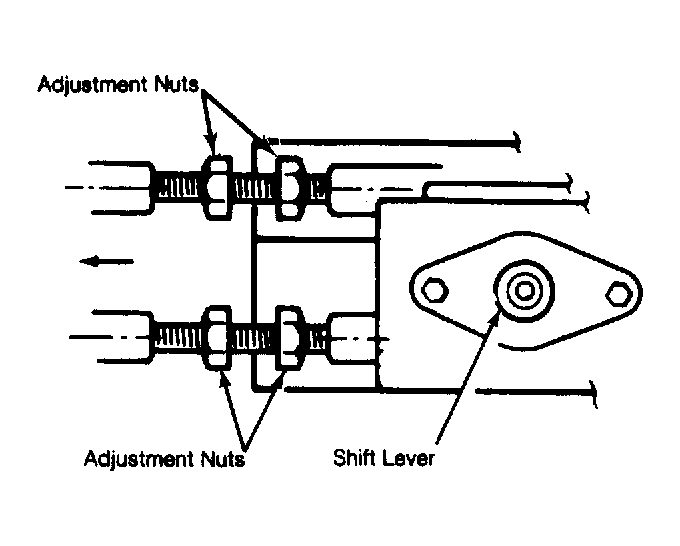

Fig 1: Adjusting I-Mark Gearshift Linkage

Courtesy of ISUZU MOTOR CO.
